Description

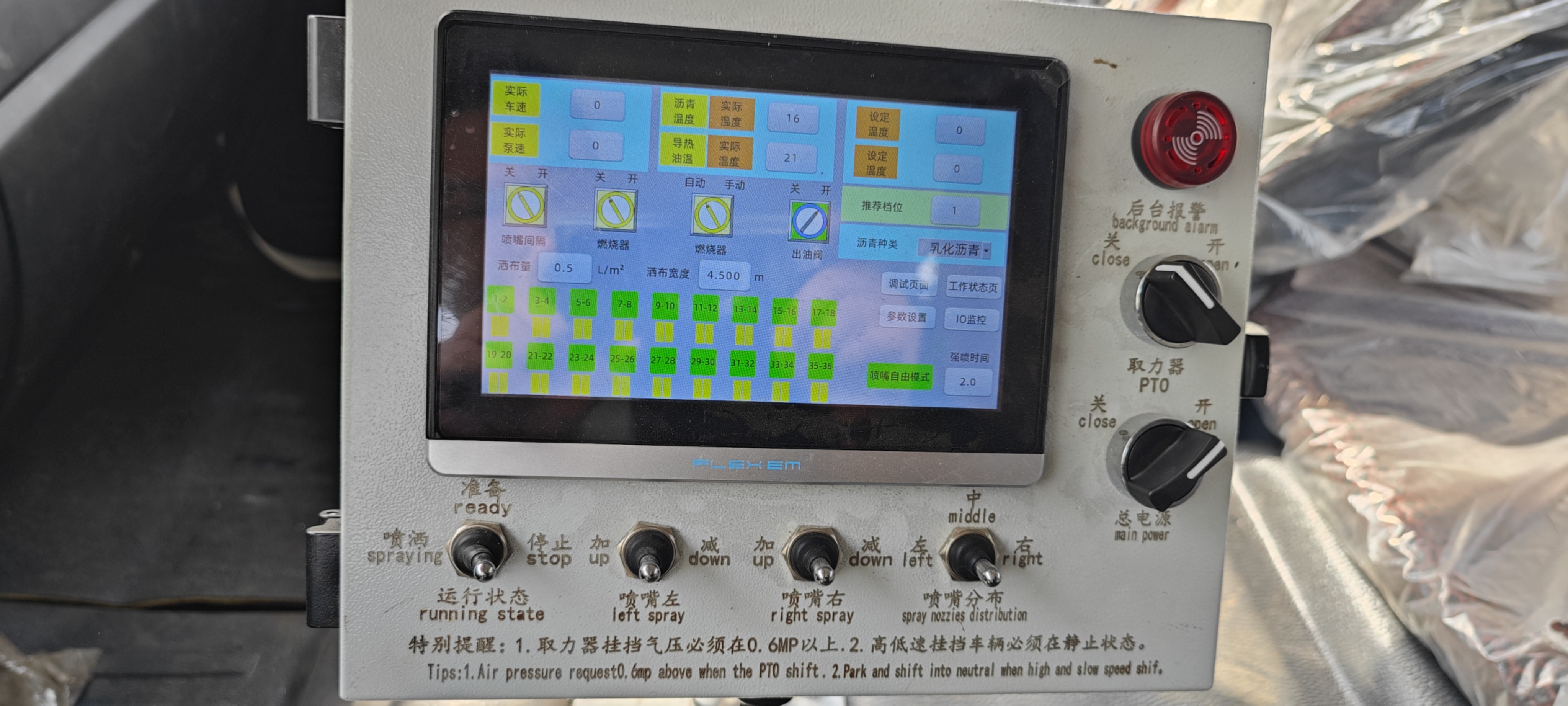

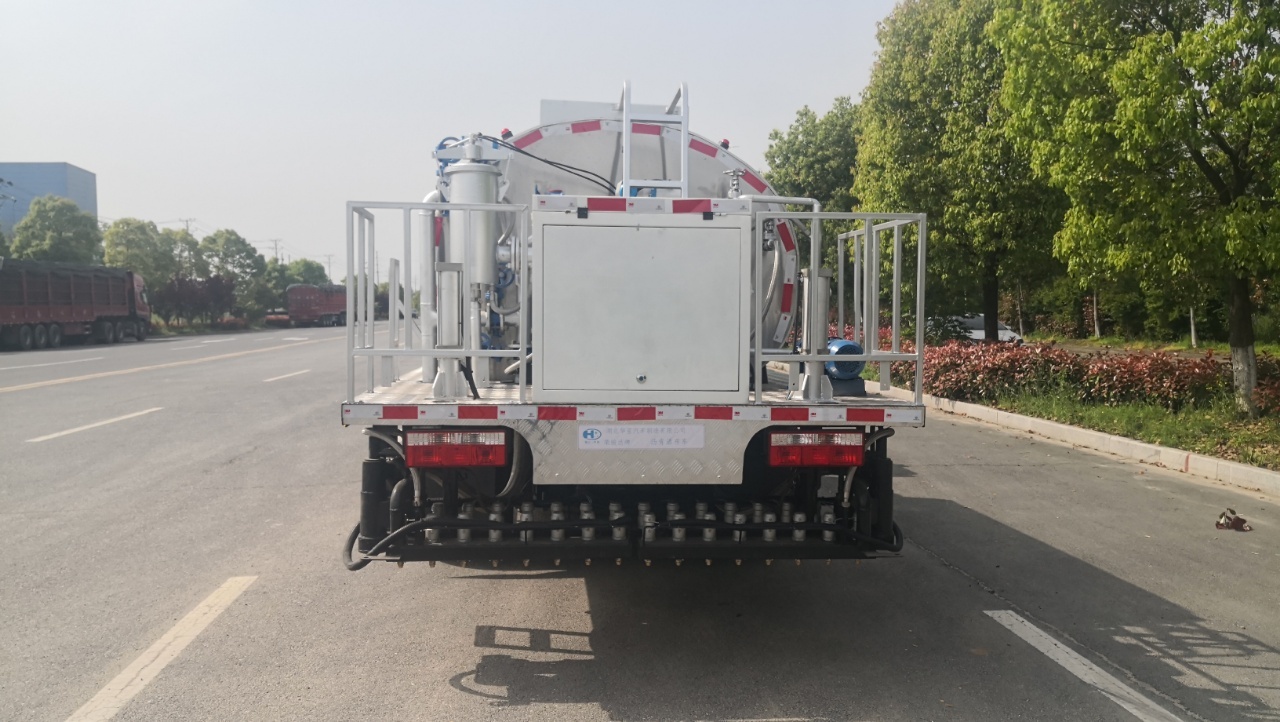

Standard Configuration: 1. Asphalt pump: QGB270 (high-viscosity asphalt pump, 270 liters/minute); 2. Hydraulic drive: Hydraulic pump: CBNZQ-F550, asphalt pump hydraulic motor model HM05-110B3D40, manual directional control valve; 3. Spraying width: 4.5 meters, 16 asphalt nozzles; 4. Heating method: Riello burner (G20) direct heating, no thermal oil (adding thermal oil costs an additional 15,000 RMB); 5. Spraying medium: Emulsified asphalt. Standard Configuration: 1. Asphalt Pump: QGB450 (High-viscosity asphalt pump, 450 liters/minute); 2. Hydraulic System: Manual directional control valve, asphalt pump hydraulic drive motor model HM05-110-B3D40; hydraulic pump uses CBNZQ-F550; 3. Spraying Width: 4.5 meters; 6 meters with 39 nozzles (additional cost of 8,000 RMB); 4. Control Method: Operated from the rear work platform control box; 34 pneumatic nozzles (one-to-one control); 5. Heating Method: Riello burner (G20) + automatic heat transfer oil heating; 6. Generator: 7KW gasoline generator; 7. Spraying Medium: Emulsified asphalt, hot asphalt, modified asphalt, etc. Intelligent Configuration: 1. Asphalt Pump: QGB680 (High-viscosity asphalt pump) 2. Hydraulic System: Proportional valve (EFBG-03-160-HF), automatic reversing valve and overflow valve, radiator uses Risen brand, asphalt pump hydraulic drive motor model 05-110-B3D40; Hydraulic pump: CBNZQ-F550 3. Control Method: Intelligent control via touchscreen computer in the driver's cab, control system (controller); 34 intelligent asphalt nozzles (one-to-one control); 4. Heating Method: Automatic heating with thermal oil + Riello G20 burner. 5. Gasoline Generator: 7 kW. 6. Spraying Volume: 0.25-3 L/㎡; 7. Spraying Width: 4.5 meters; 6 meters with 39 nozzles (additional cost of 8,000) 8. Spraying Medium: Emulsified asphalt, hot asphalt, modified asphalt, etc.
