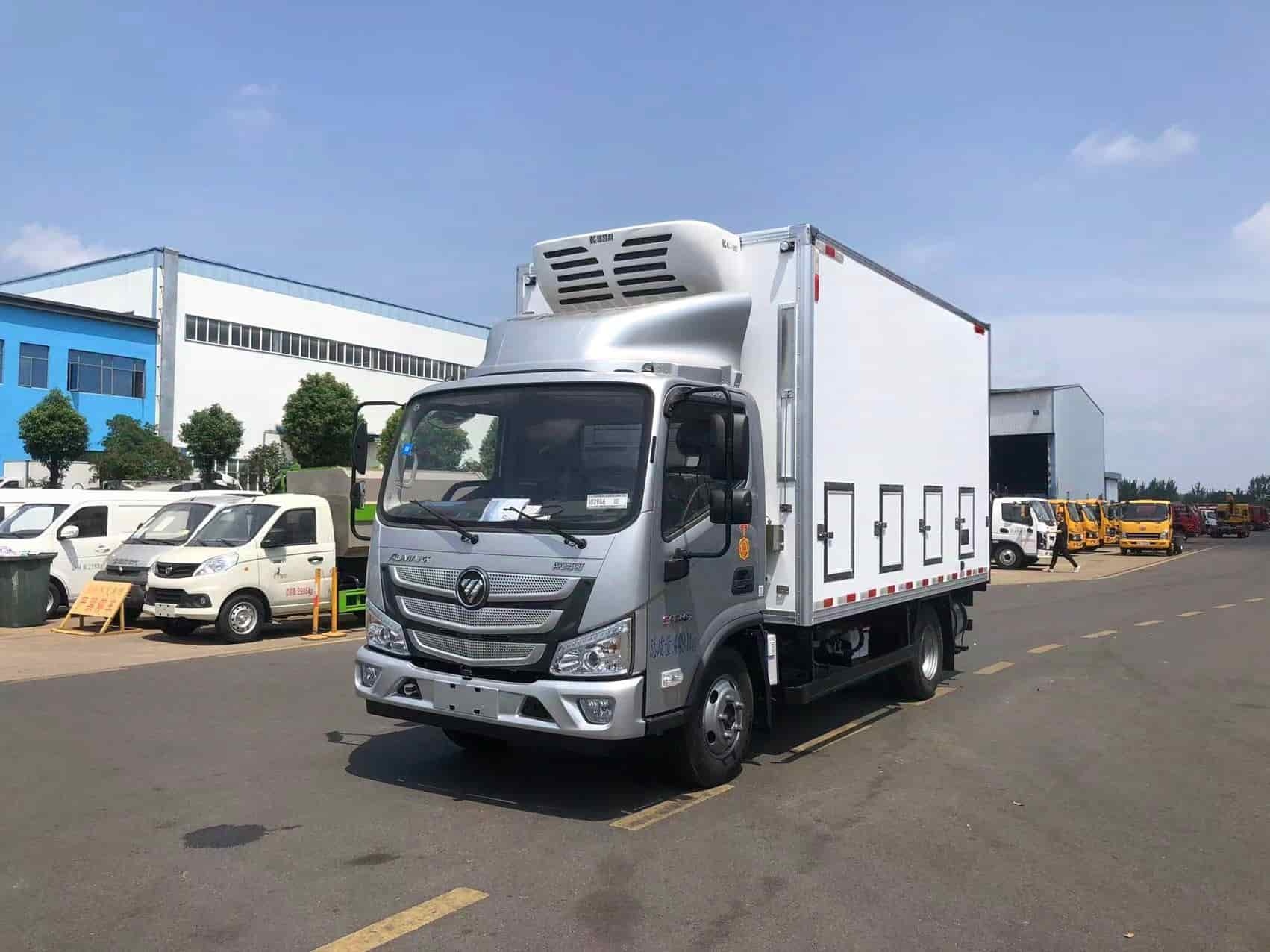

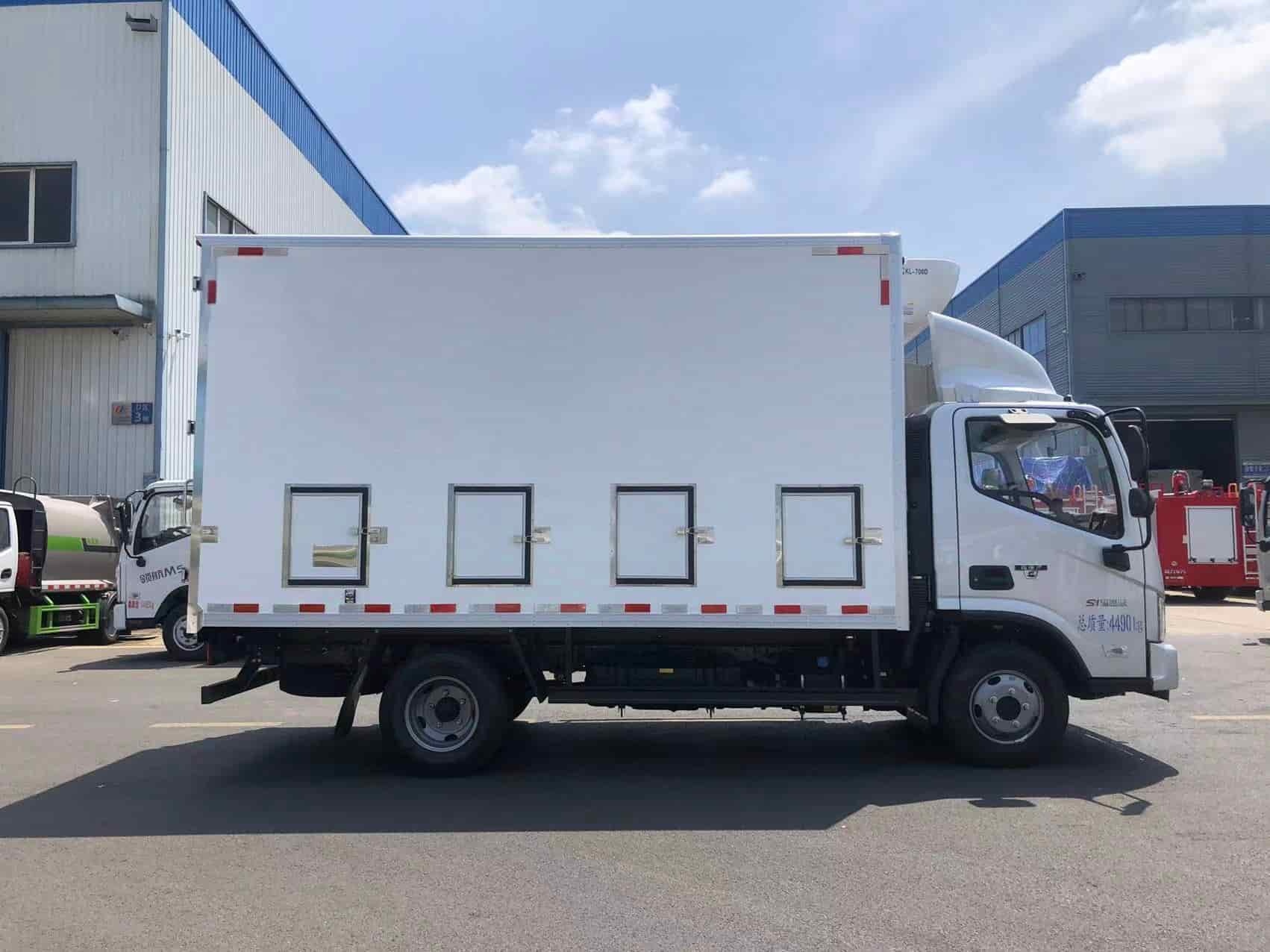

Overall Dimensions: 5995×2210×3430mm
Box Dimensions: 4080×2100×2200mm
【Chassis Configuration】
Wheelbase: 3360mm
Engine: Foton Cummins 160hp
Transmission: ZF 6-speed manual transmission
Power/Horsepower: 115KW/160hp
Displacement: 2.5L four-cylinder
Tire Model: 7.00R16

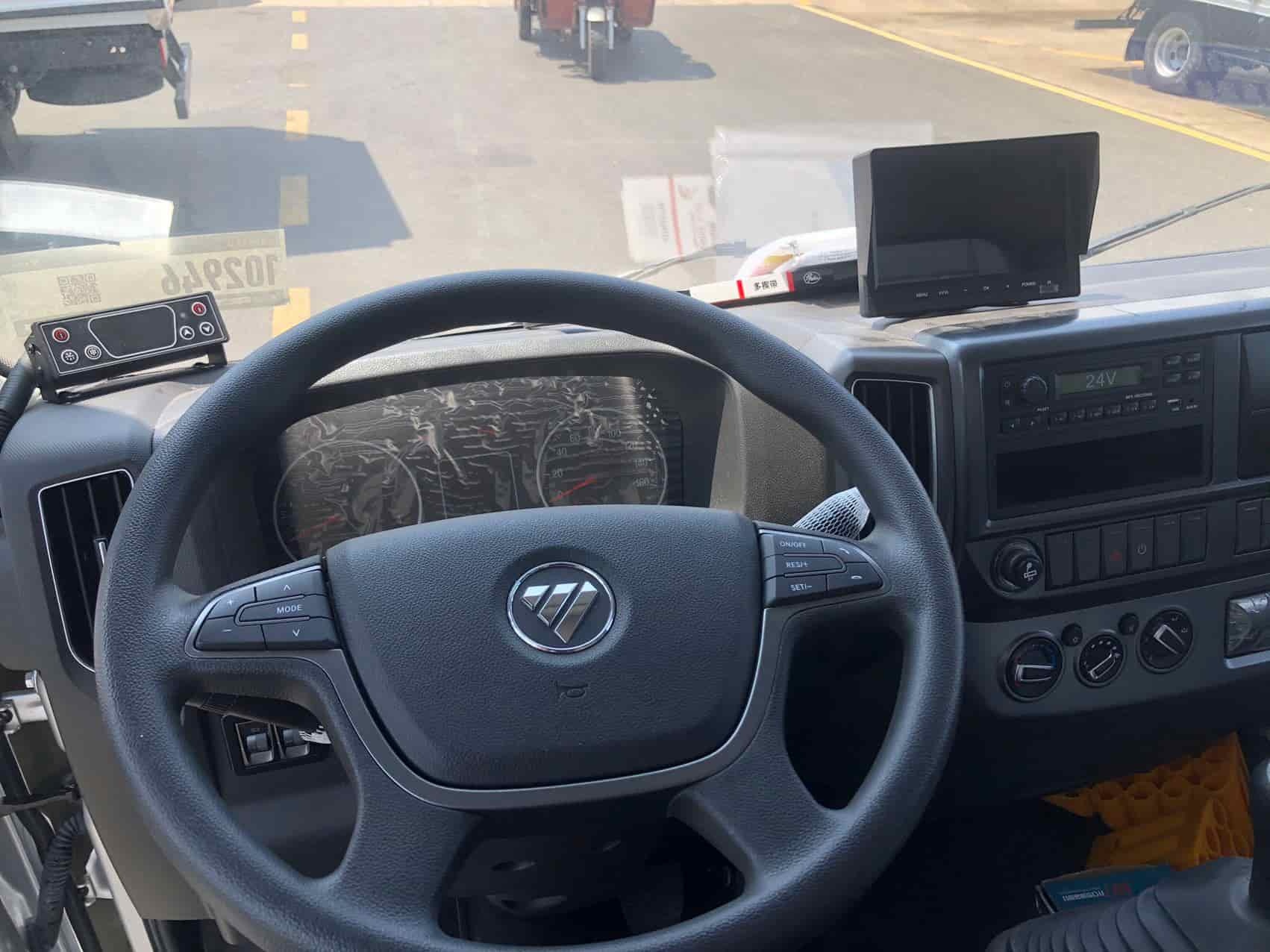

Other Configurations: Single-row cab, 5-ton rear axle, air brake, power steering, air conditioning, electric windows and doors, ABS, remote key, cruise control, central locking, multi-function steering wheel!

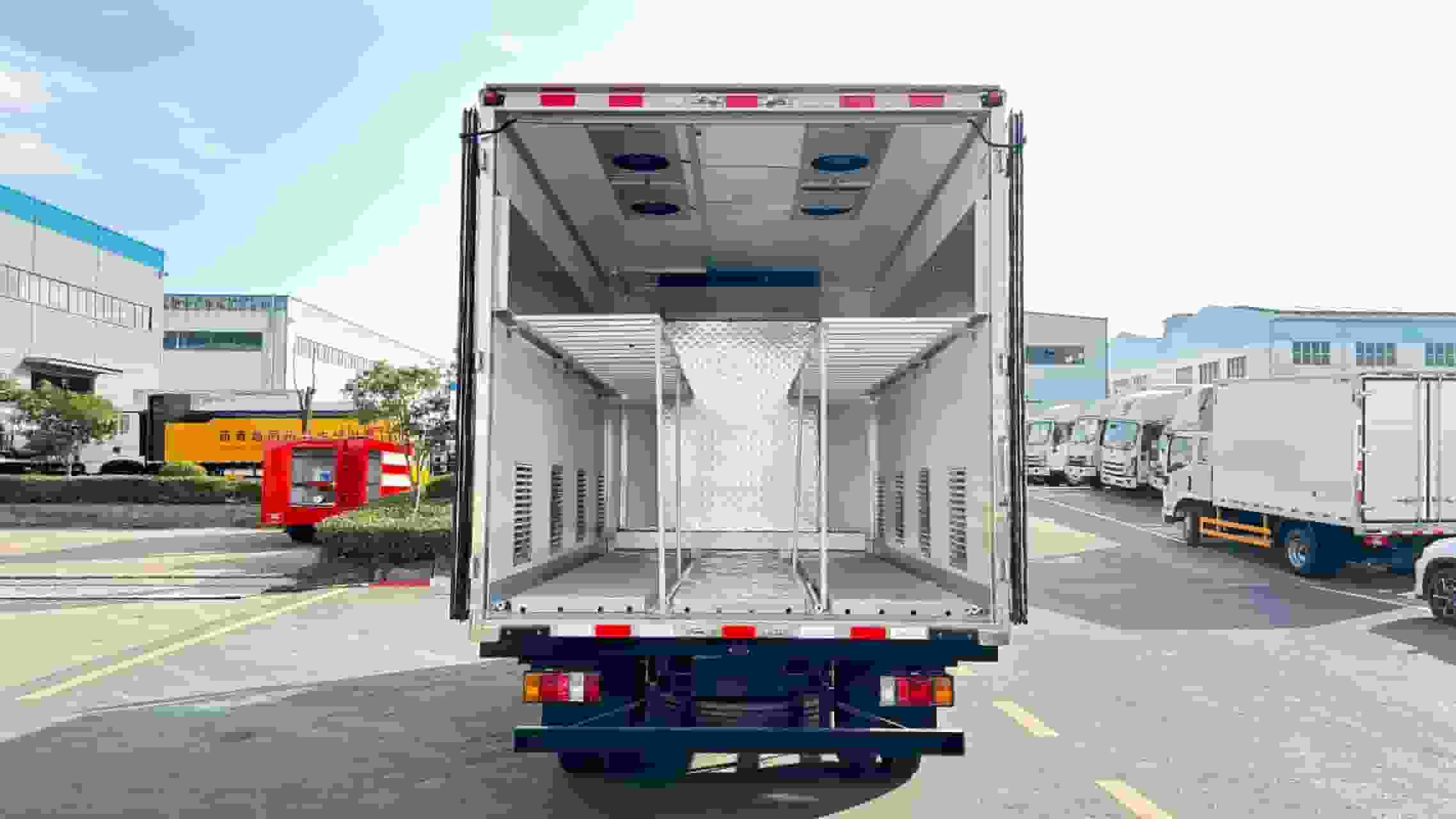

【Upper Structure Configuration】
(1) Manufacturing Process: The box body is manufactured using a vacuum adsorption and hydraulic adsorption integrated molding production line, with sandwich composite bonding, achieving national Class A insulation performance. (2) Panel Material: The inner and outer wall panels are made of high-quality domestic fiberglass (non-light-absorbing, good heat insulation, high hardness, and oxidation resistance); the middle is insulated with high-performance insulation board, and the body thickness is 8CM. The floor is made of one-piece molded fiberglass plate, and the door edge strips use labyrinth rubber sealing strips.
(3) Body Accessories: Aluminum alloy edging around the body, stainless steel corner protectors, stainless steel door locks, stainless steel door frames and hinges, and energy-saving LED lighting inside the body.

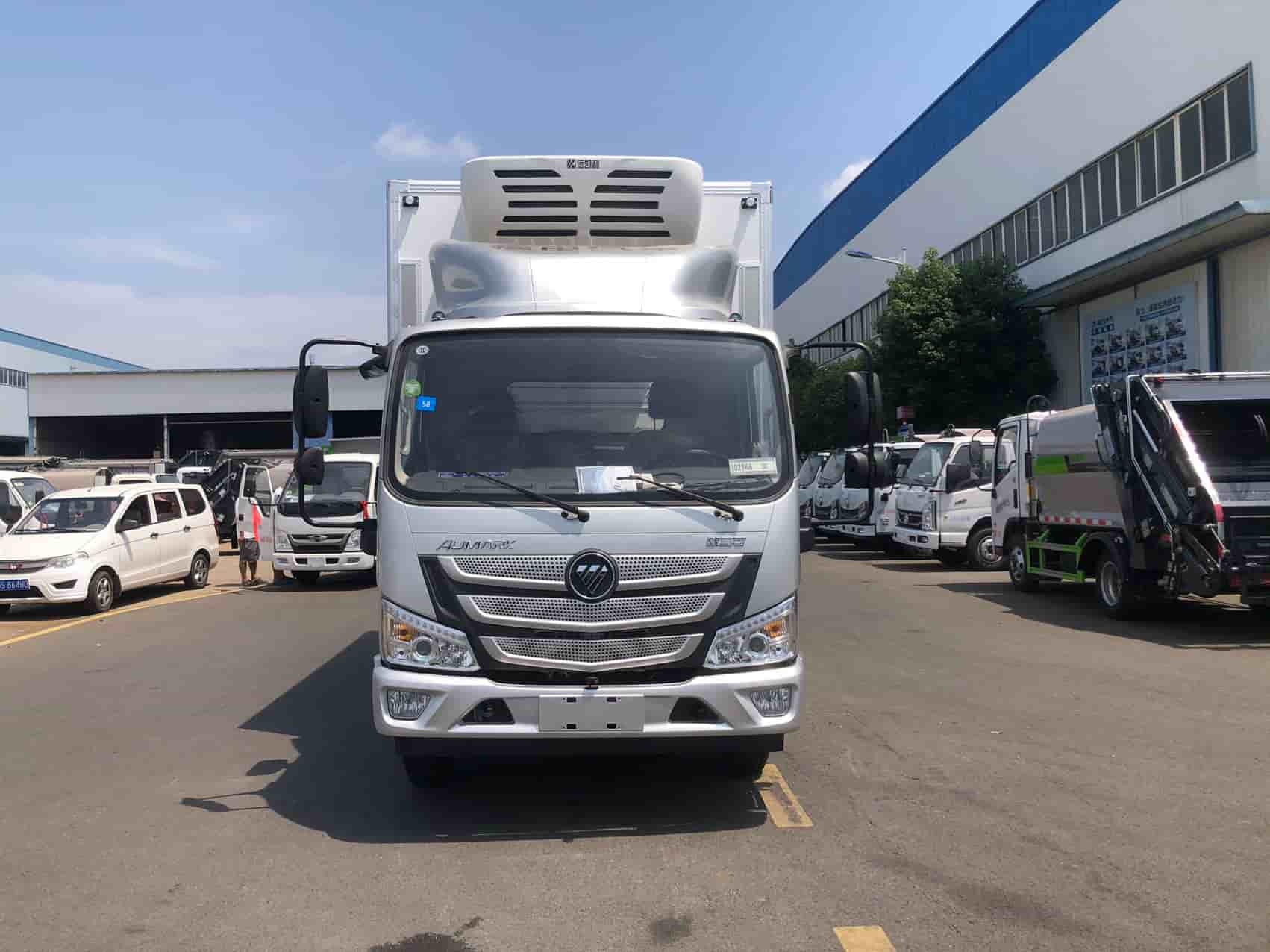

【Constant Temperature Equipment】Xinkaili constant temperature refrigeration unit, KL700, with heating.

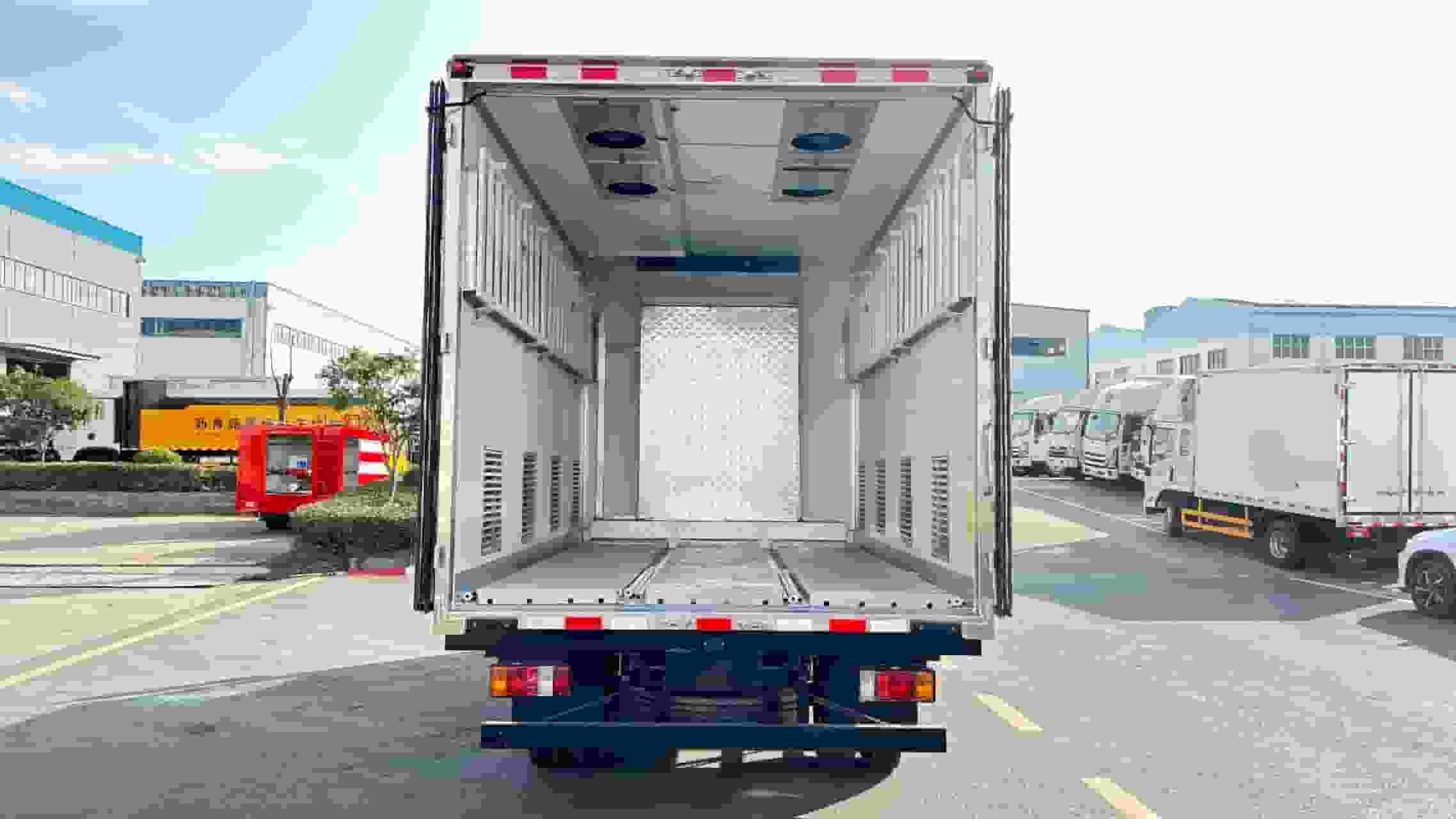

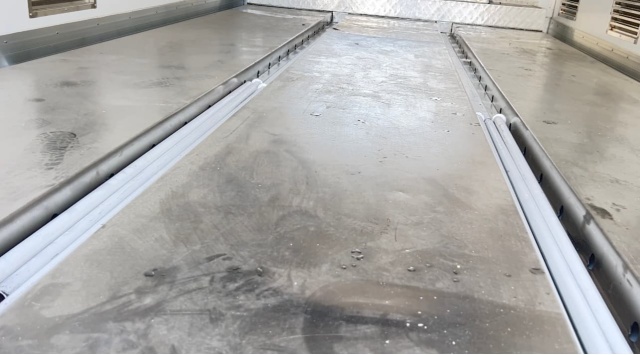

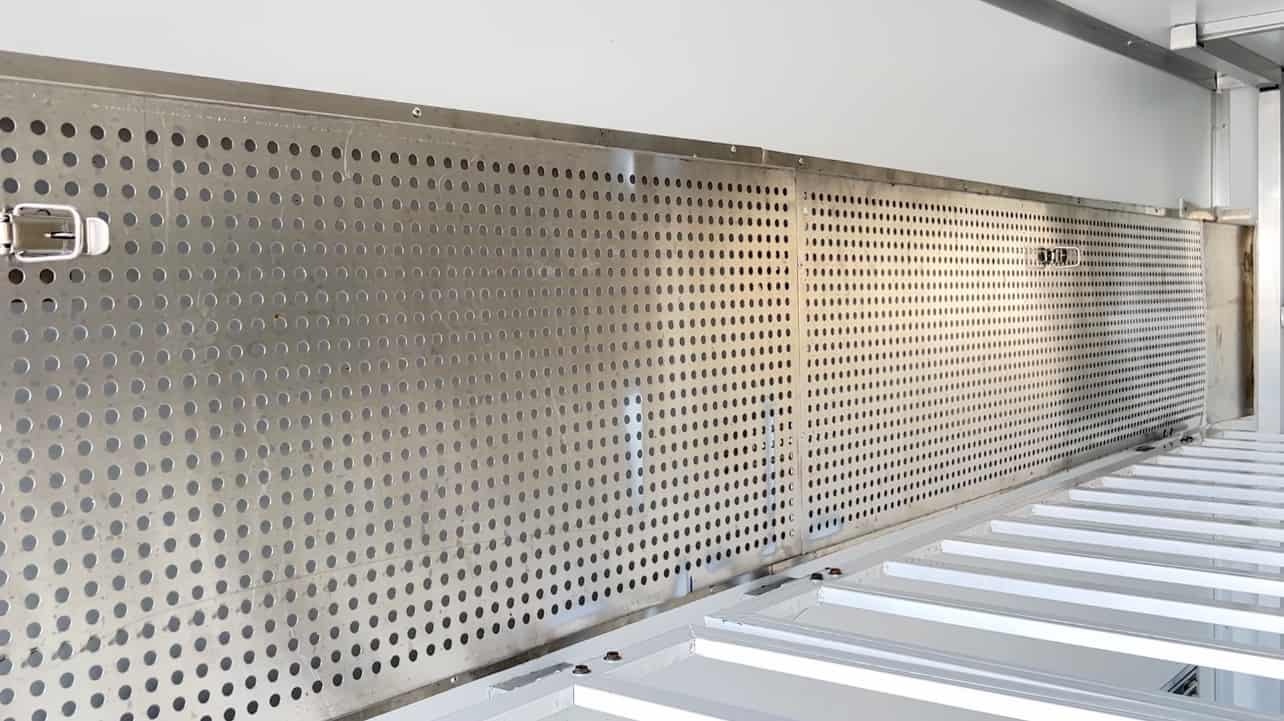

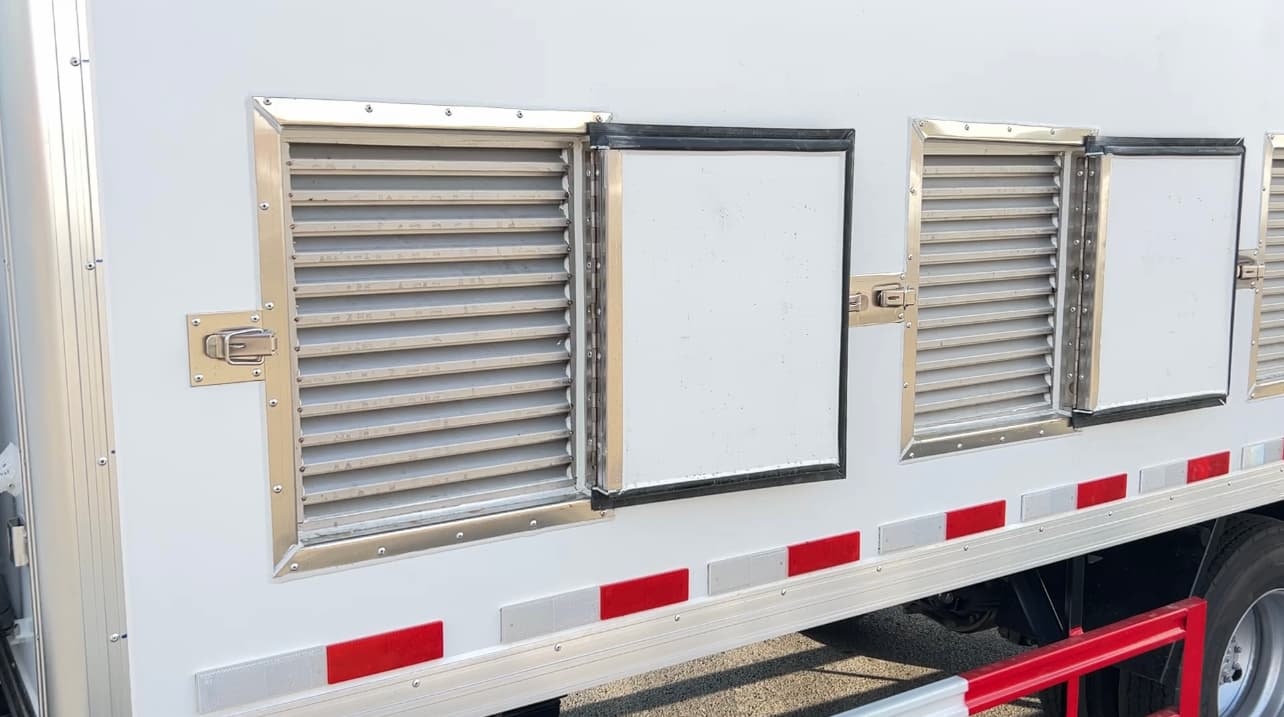

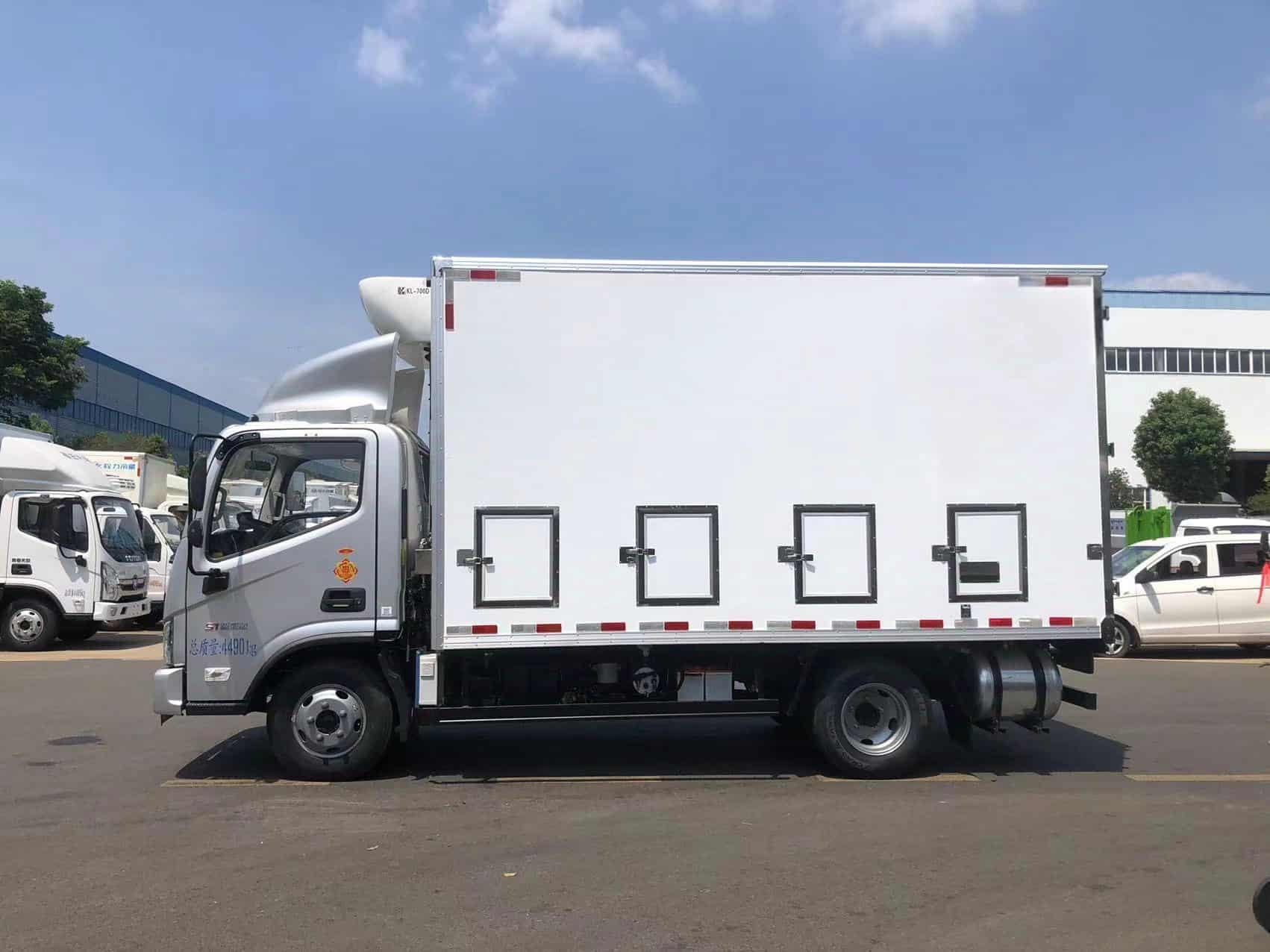

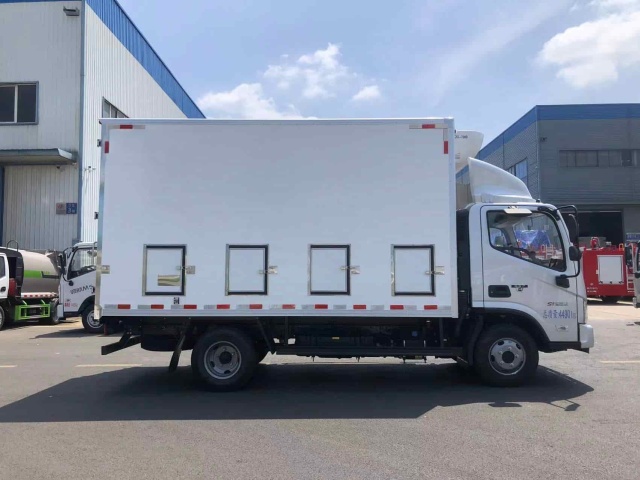

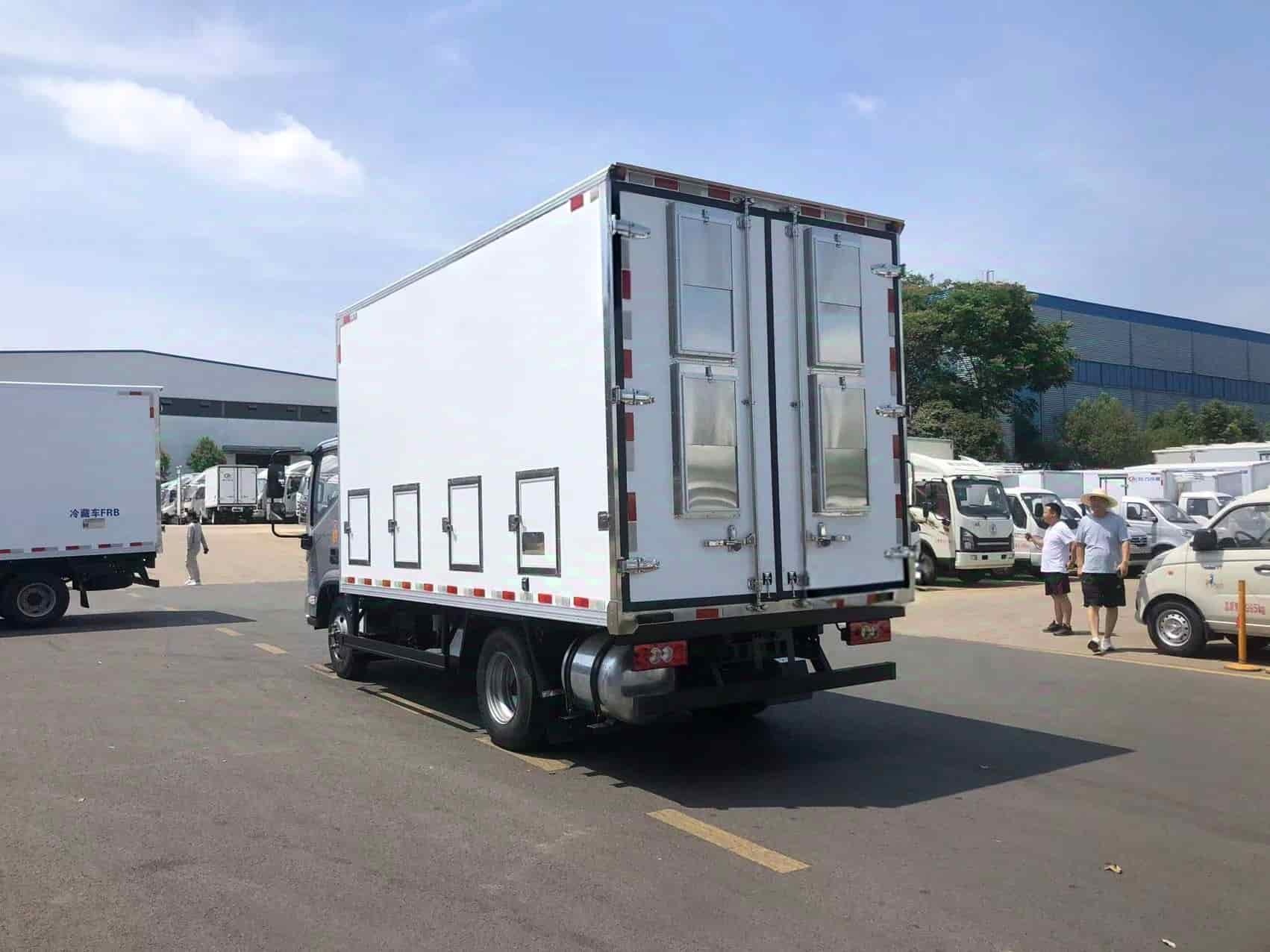

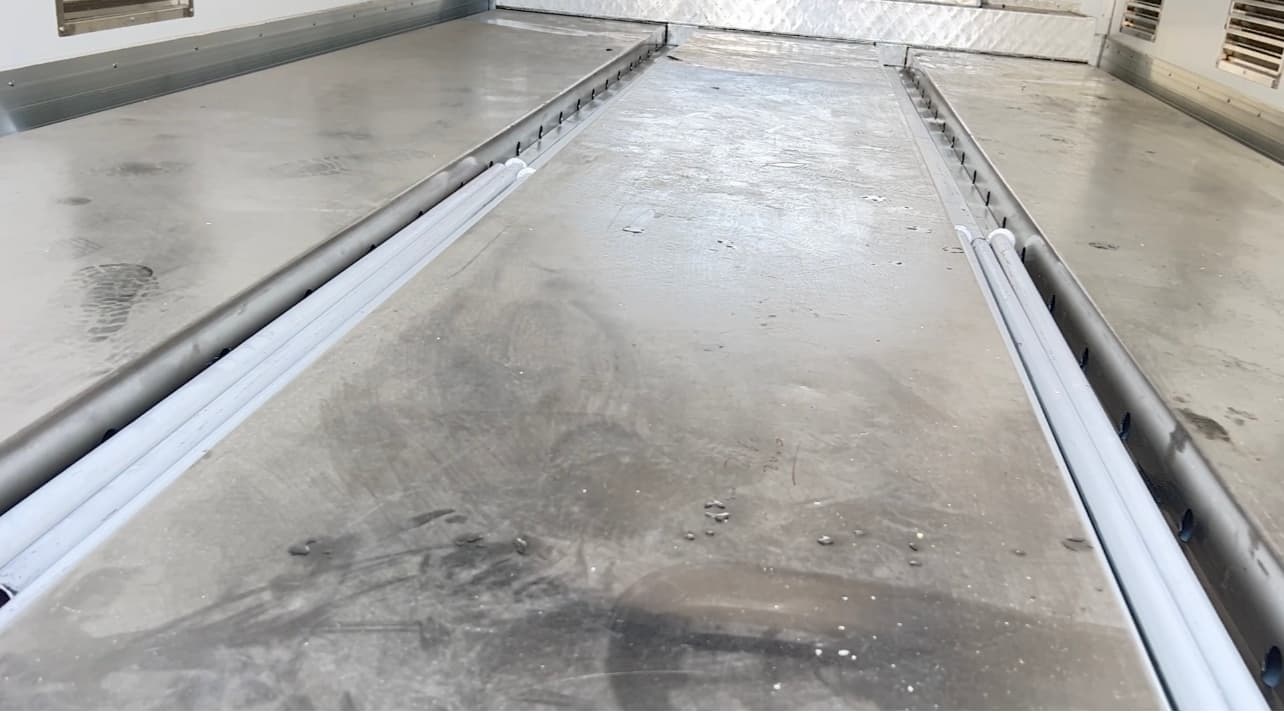

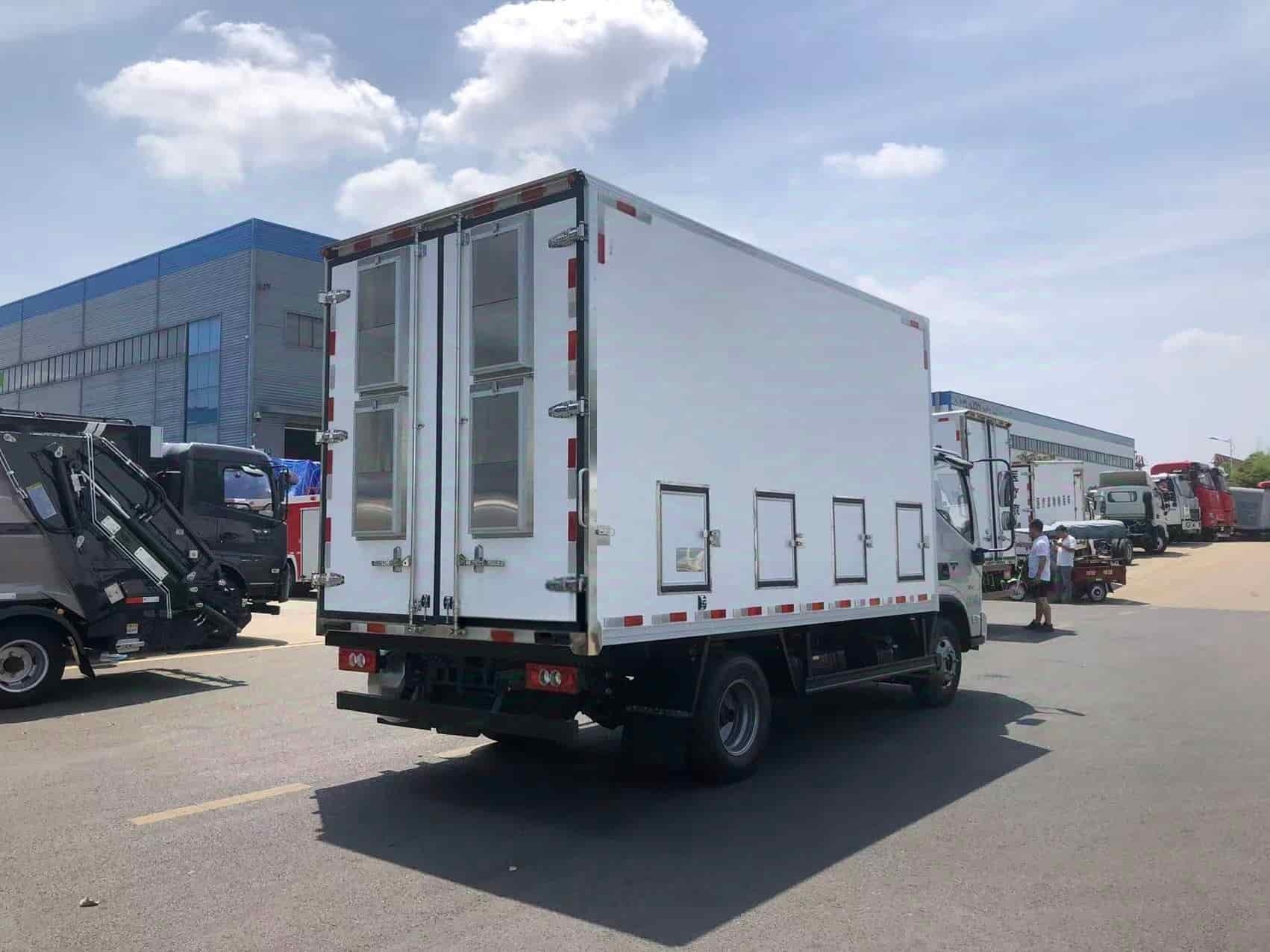

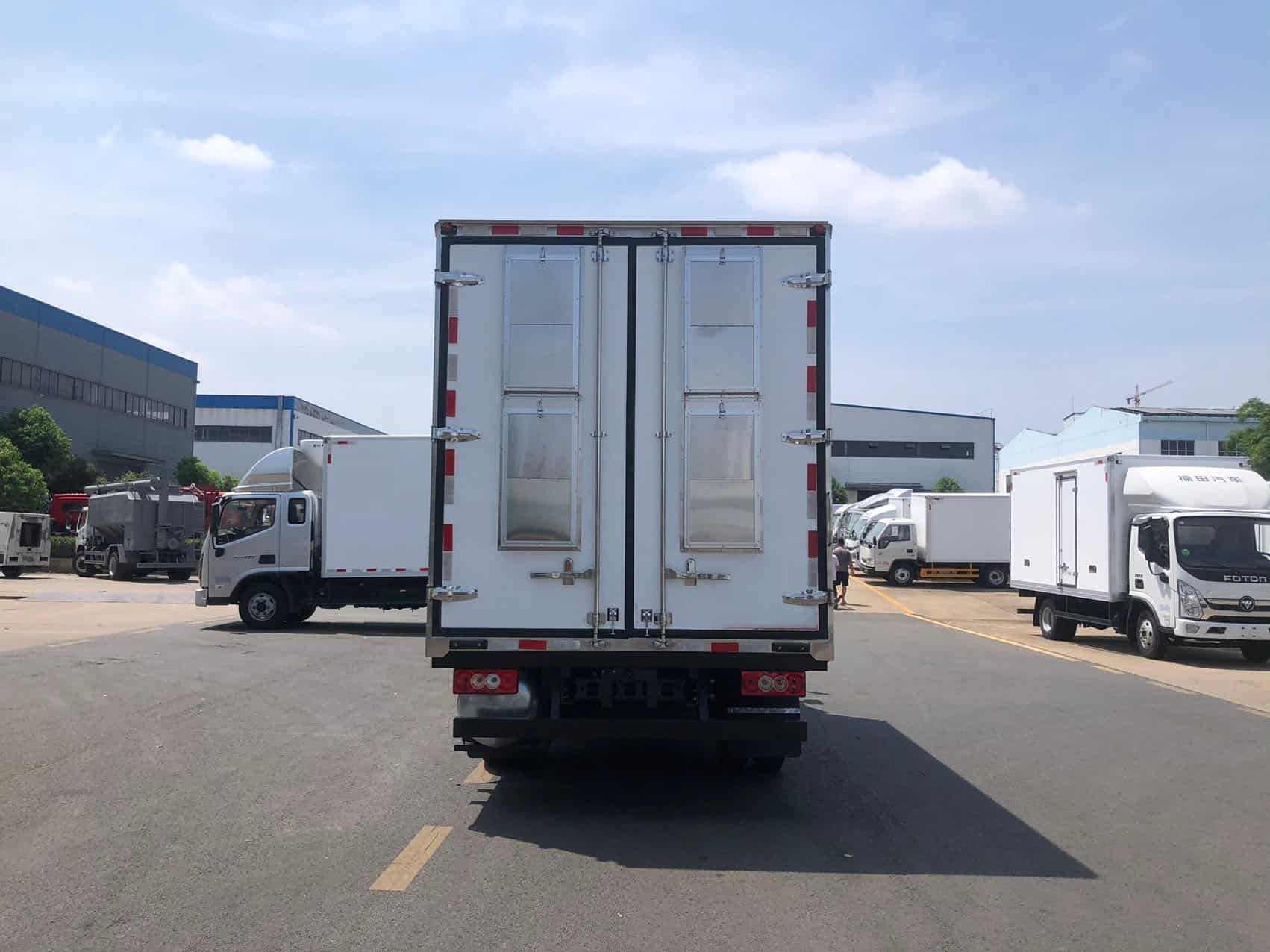

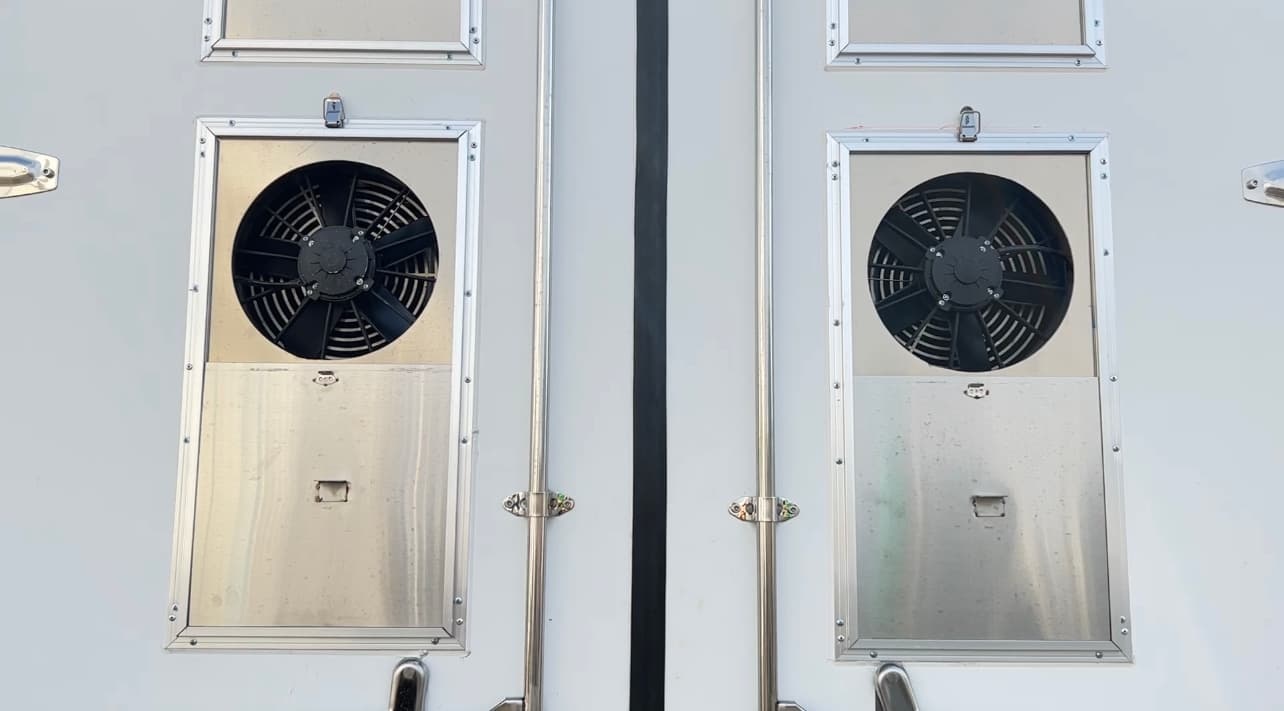

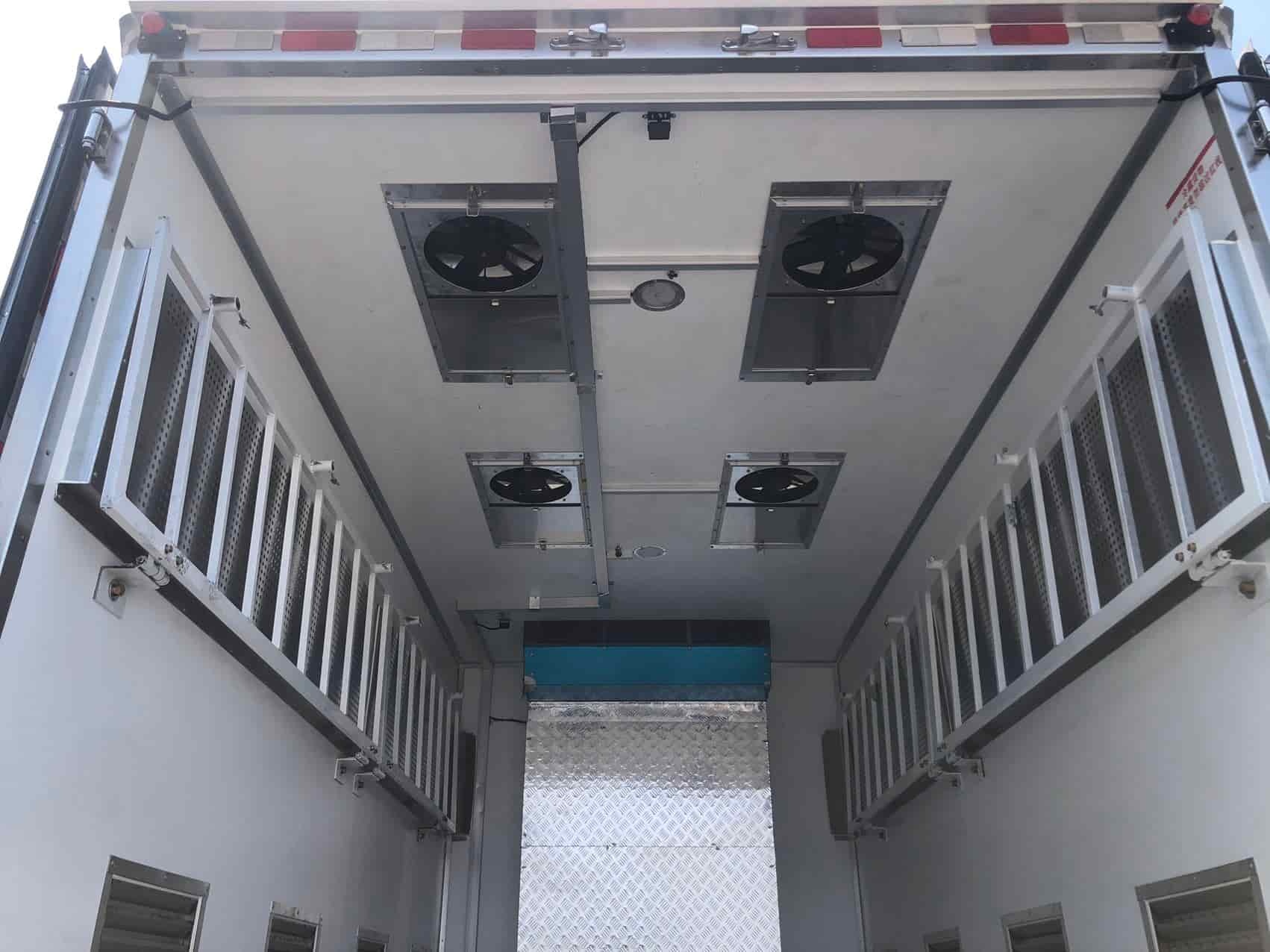

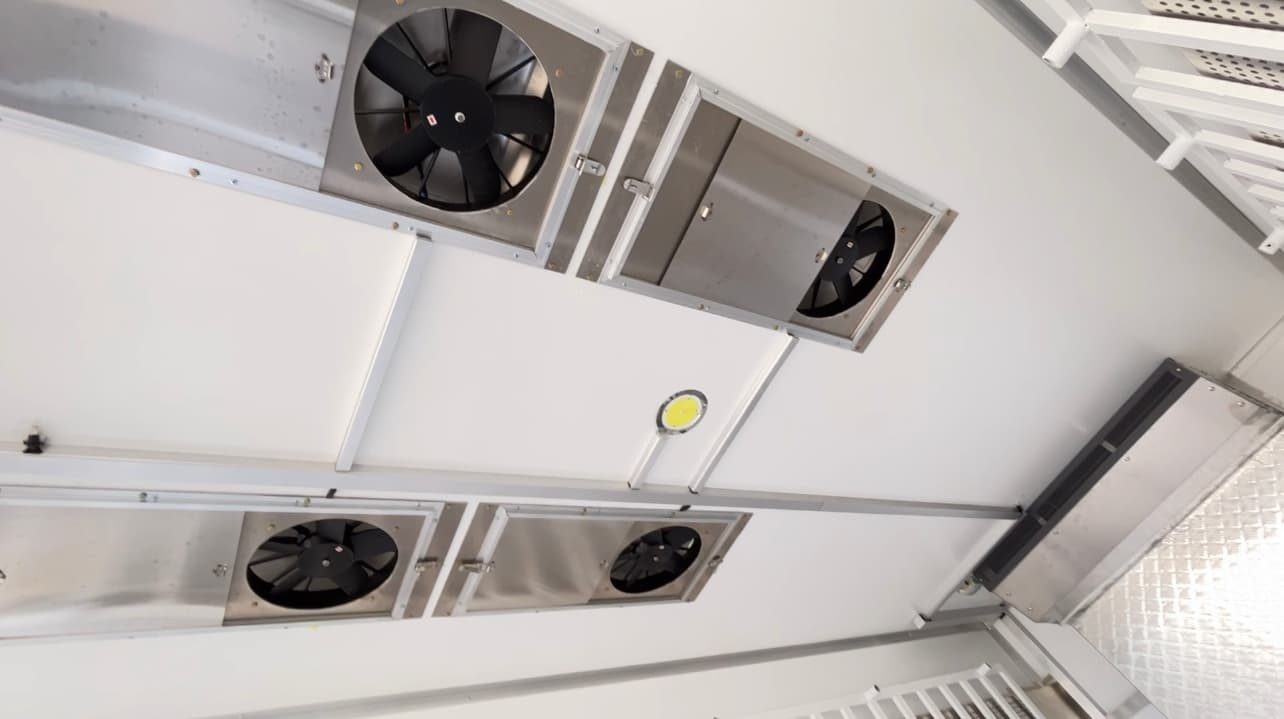

【Ventilation Equipment】Eight externally operable ventilation windows on both sides of the body; four exhaust fans on the top, four exhaust fans at the tailgate, ventilation ducts on both sides of the upper part of the body, and electric louvered air intake at the front. The floor has removable stainless steel ventilation ducts.
【Flip-over Shelving】Manually flip-over stacking shelving on both sides of the body.

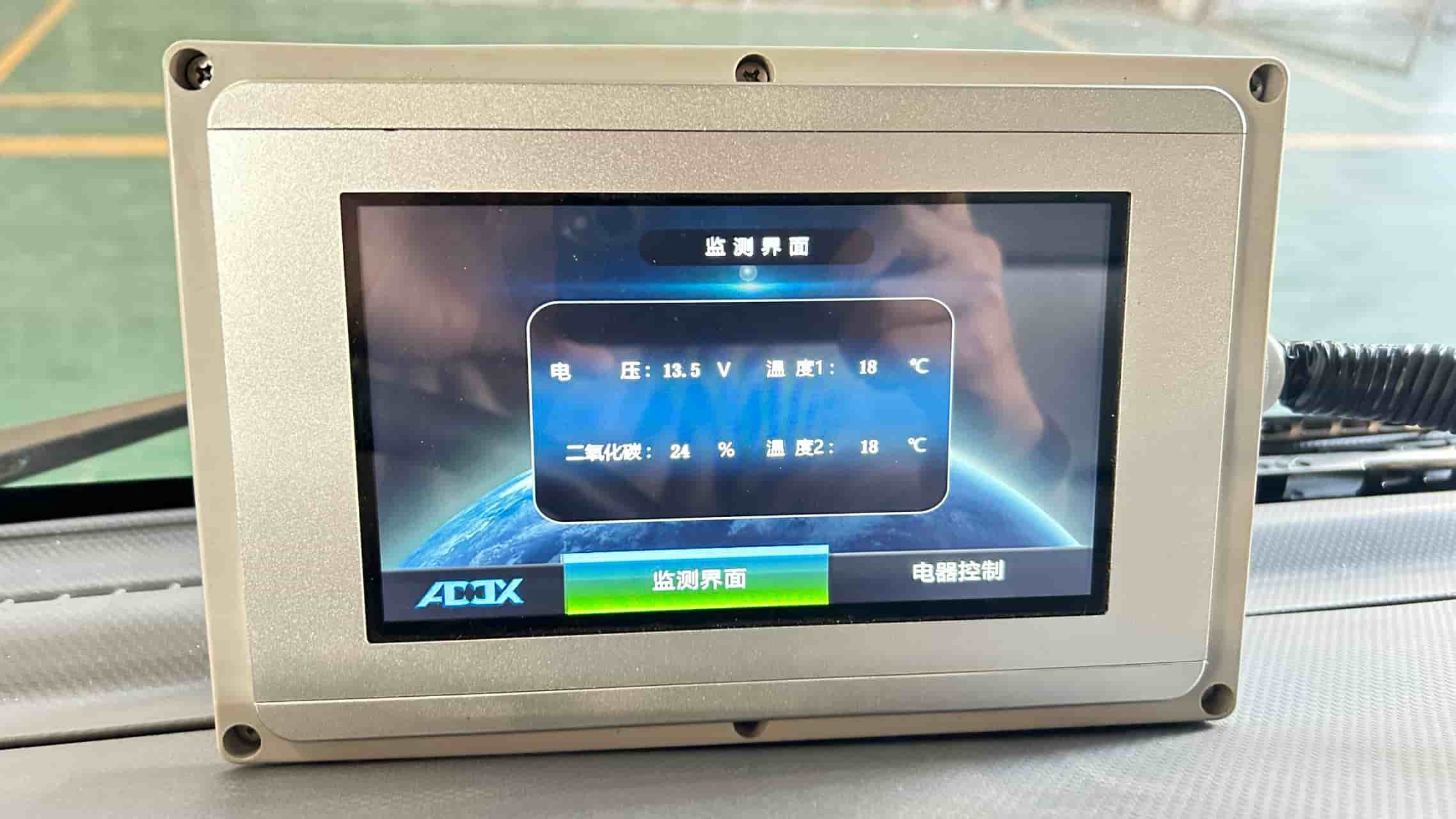

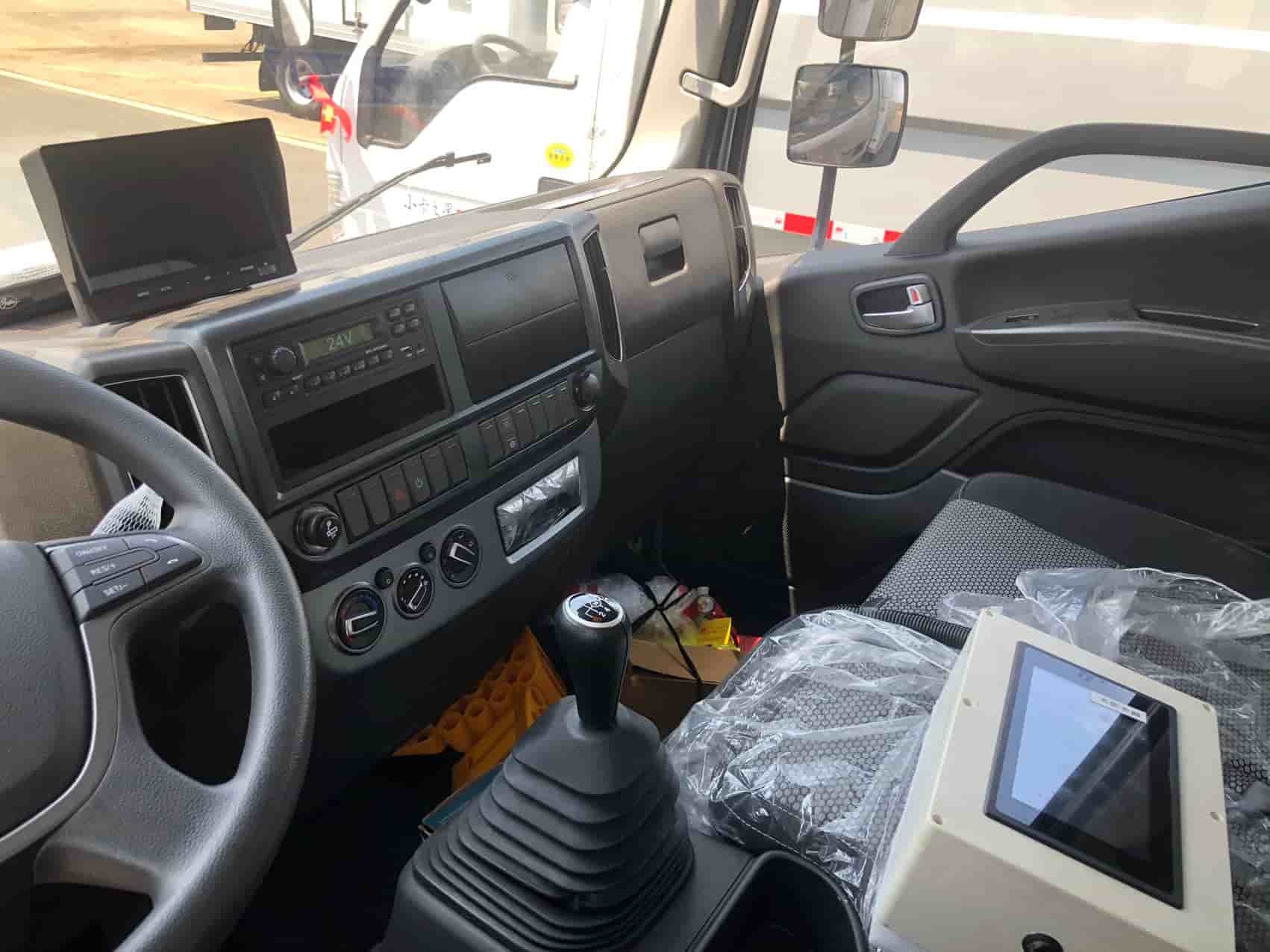

【Control Equipment】LCD touch panel assembly.
【Probes】Carbon dioxide sensor, two temperature probes.
