Overall Dimensions: 5995×2180×3150mm
Interior Dimensions: 4050×1850×1960mm
【Chassis Configuration】

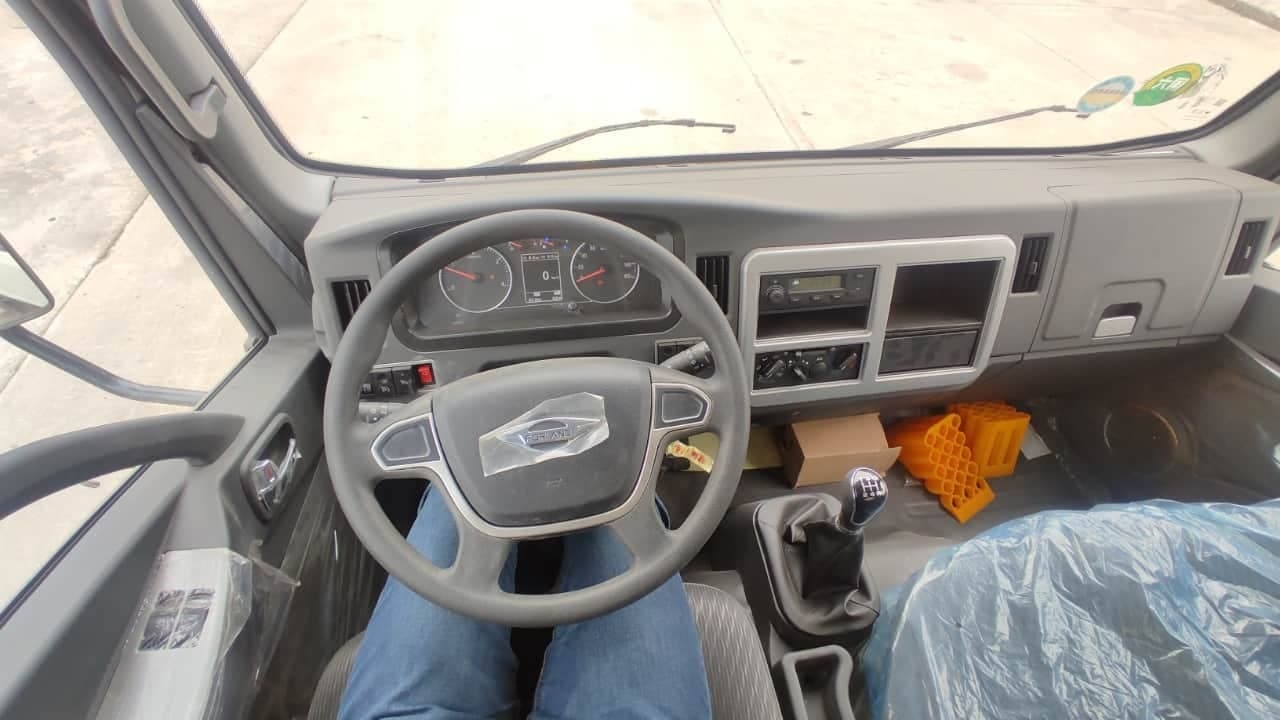

Wheelbase: 3360mm, Engine: Quanchai 115hp, Displacement: 2300ml, Tires: 700R16 steel radial tires, ABS, air brakes, 5-speed gearbox, power windows and doors, power steering, air conditioning, fairing.
【Upper Structure Configuration】
●Body: High-quality carbon steel frame, 1.2mm thick cold-rolled steel plate exterior, lower skirted structure, maintenance hatch provided according to chassis layout. Fiberglass interior trim on the top, 2 ventilation sunroofs, 1 LED light, louvered ventilation design on the front panel. Rust-proof paint on the base layer, special automotive paint on the exterior.

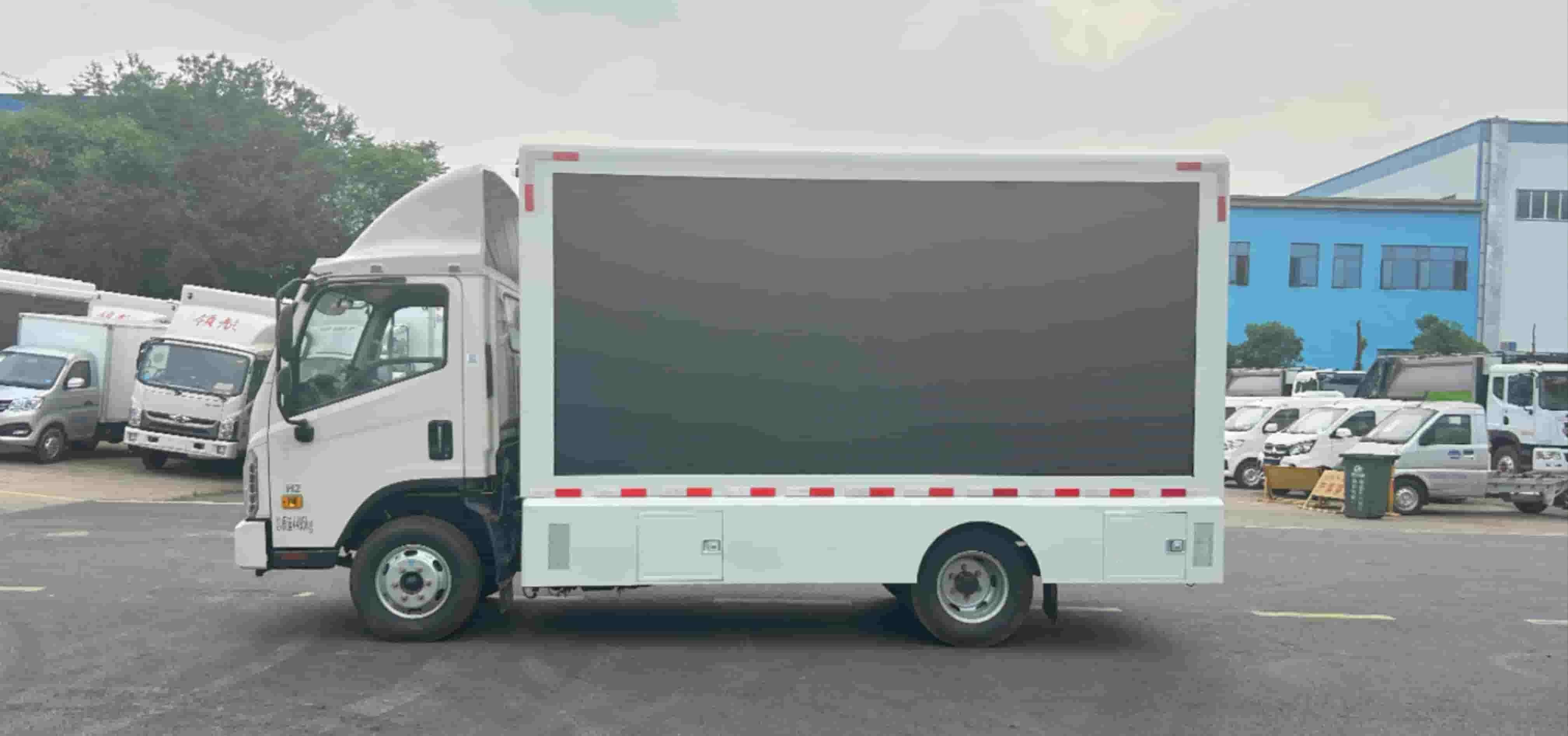

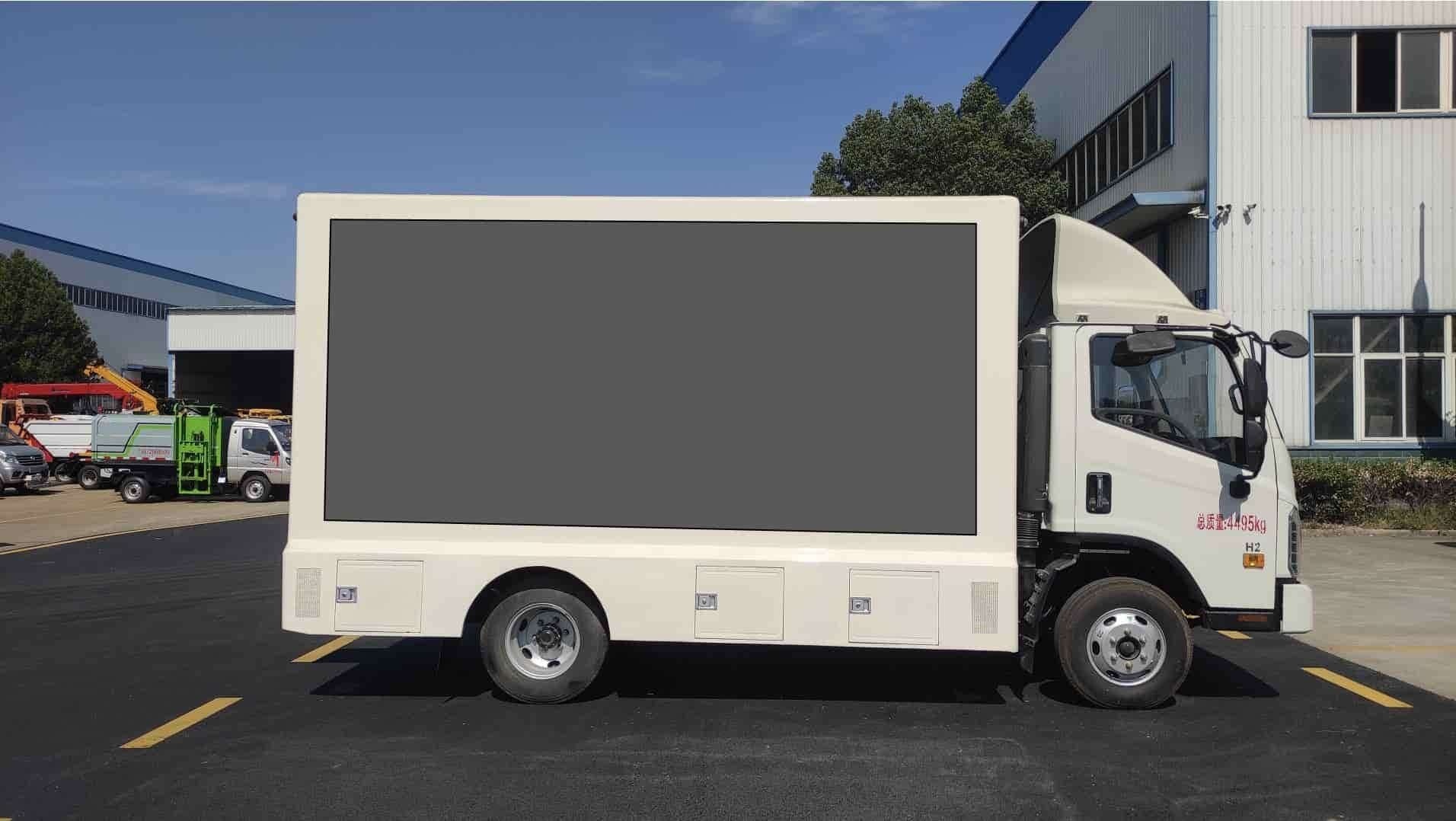

●Driver's Side (Standard): High-powered, large-color, high-definition outdoor LED full-color screen. Displays video and images; screen size: 3840×1760mm; screen area: 6.75m².

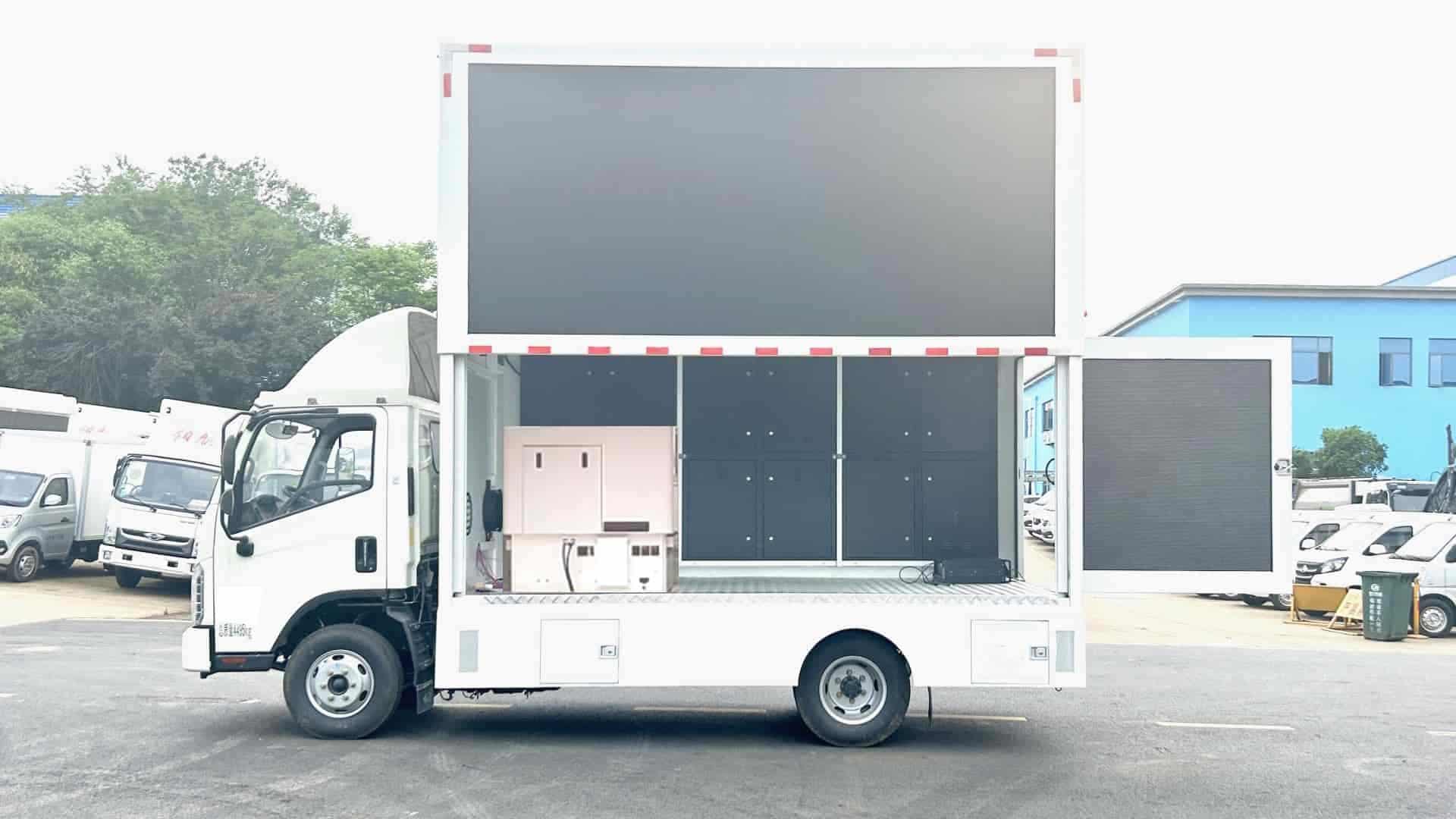

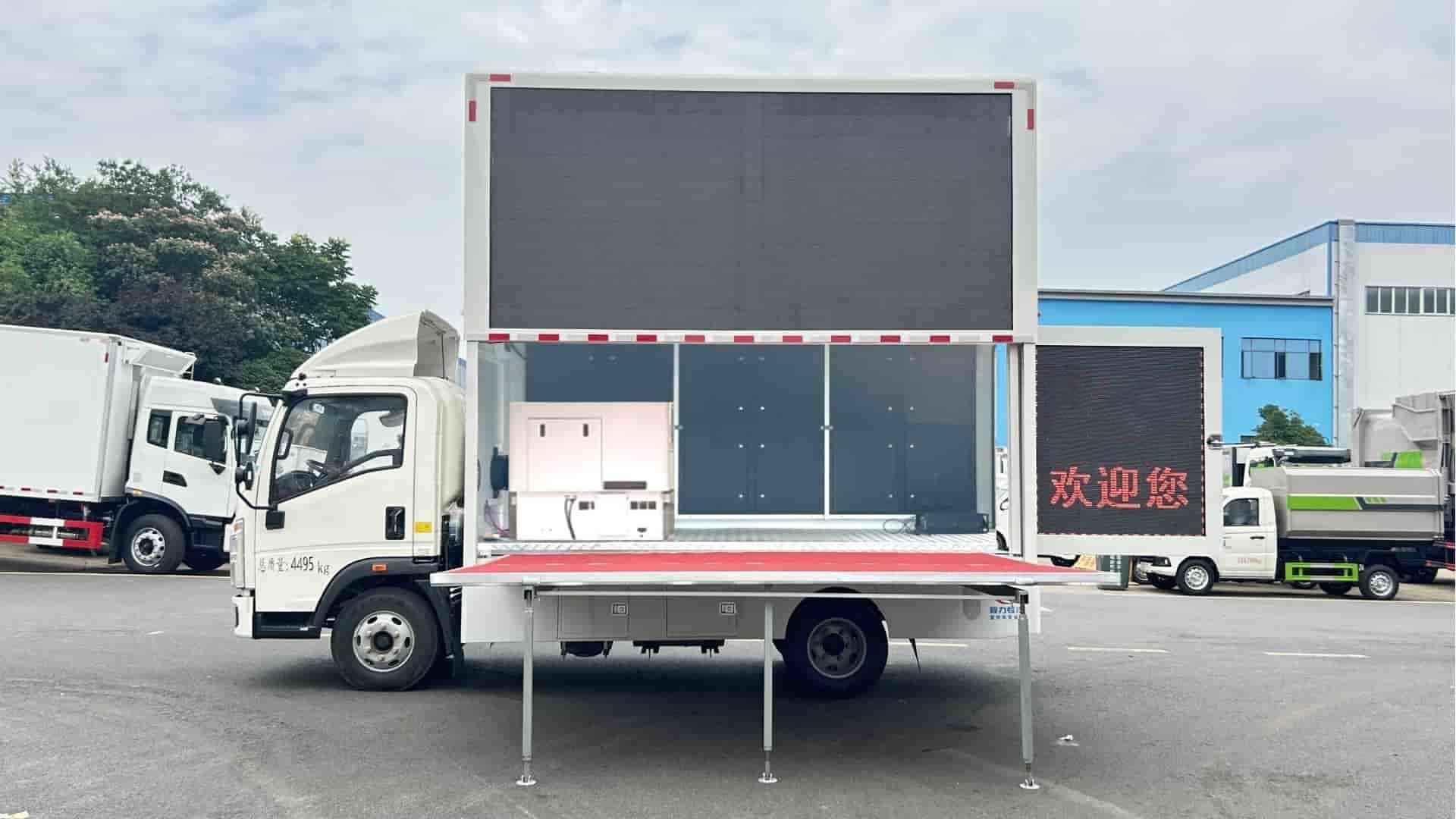

(*Optional single-side large screen lifting function, lifting height ≥1600mm; optional hydraulic stage.)

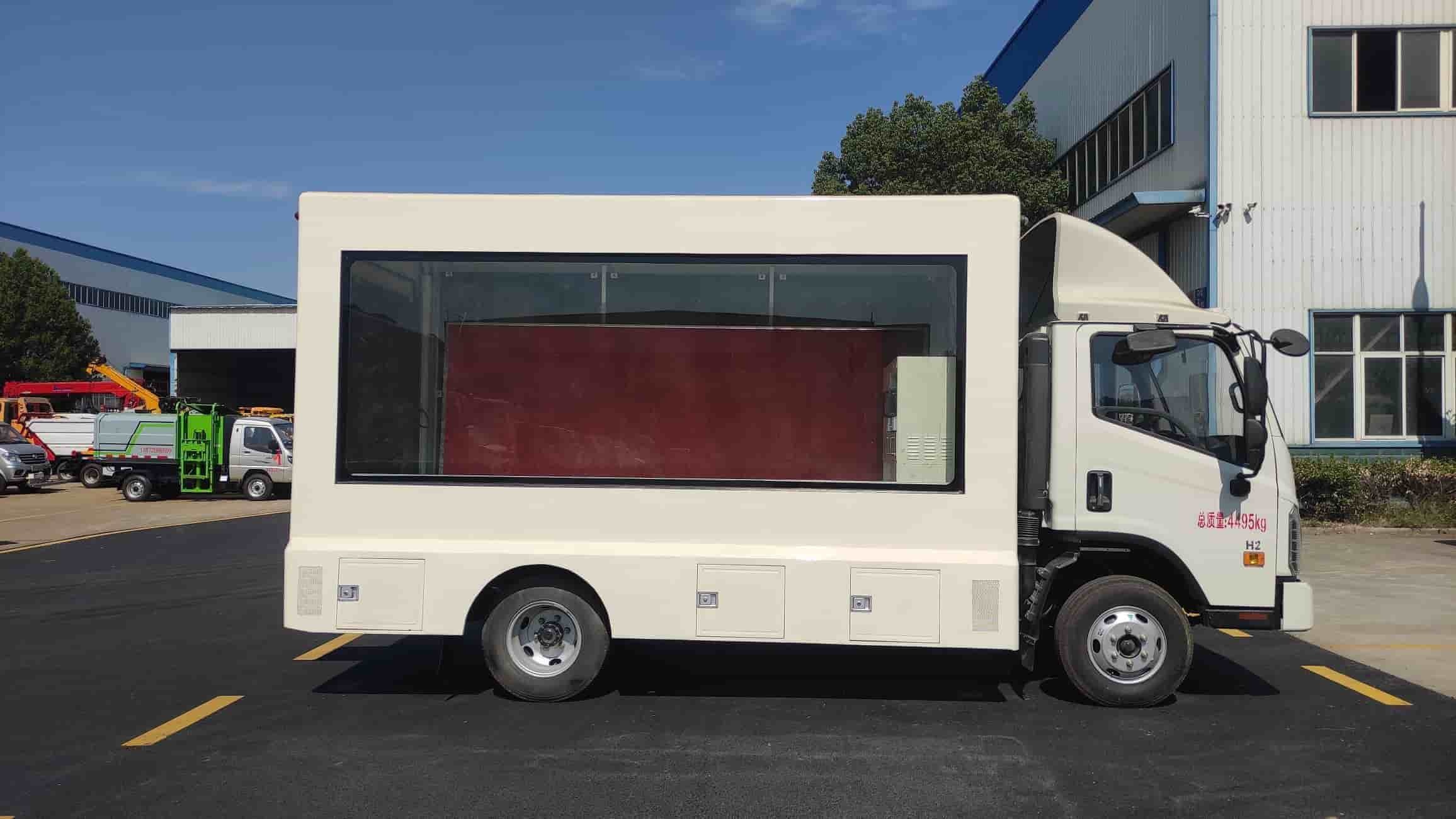

● Passenger side (standard): Glass roller light box or enclosed cargo box structure.
(*Optional dual-side LED full-color screen.)

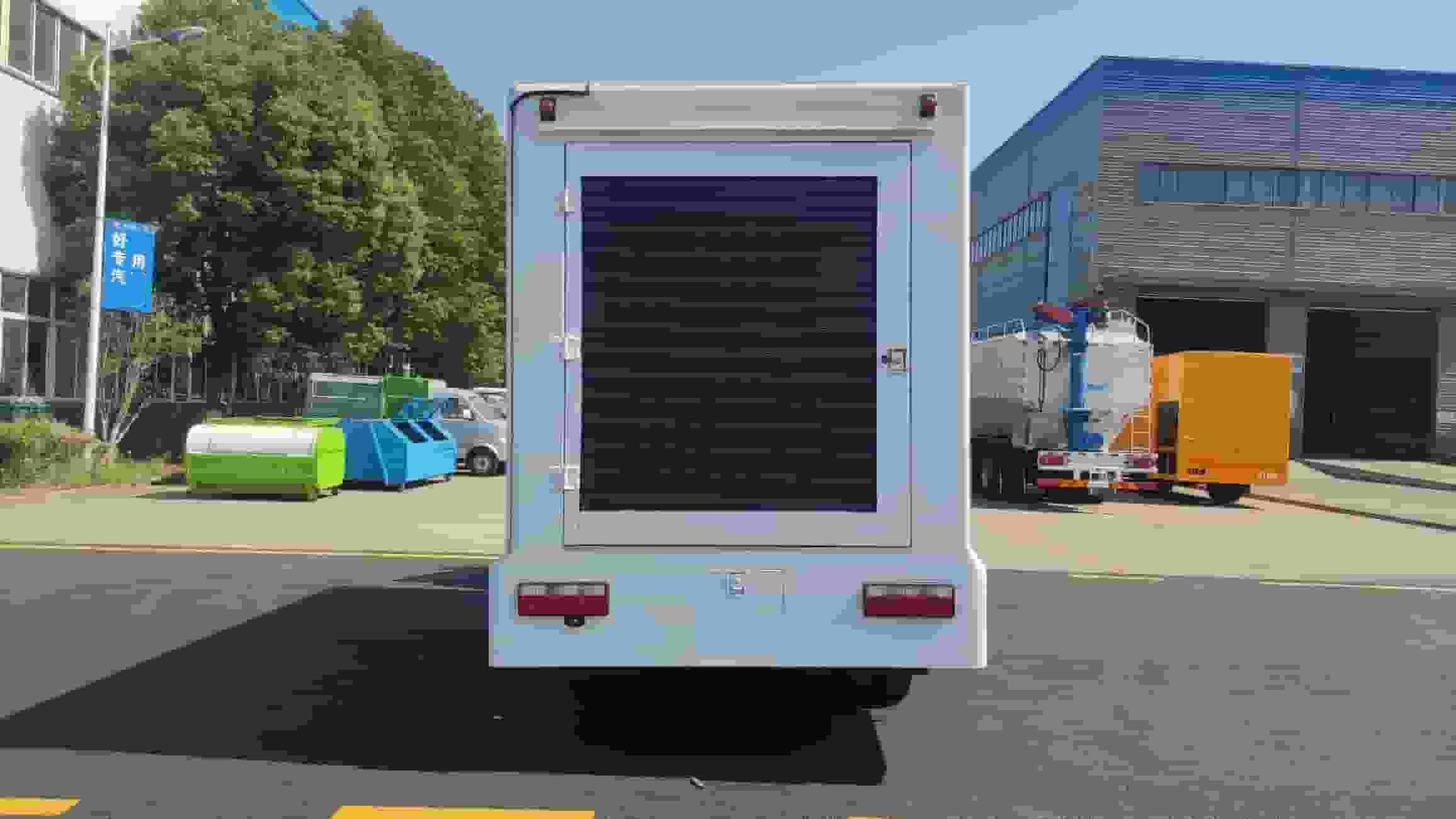

● Rear (standard): P10 single red text screen, capable of displaying text information; screen size: 1280×1440mm.
(*Rear single red text screen optional with LED full-color screen.)
● Control equipment (standard): 1 video player; functions: plug-and-play with USB flash drive; wireless transfer of video and image files via mobile phone Wi-Fi. (*Optional industrial desktop computer operation.)
● Audio equipment (standard): 1 Evit broadcast-grade 200W amplifier; 4 30W waterproof speaker columns.

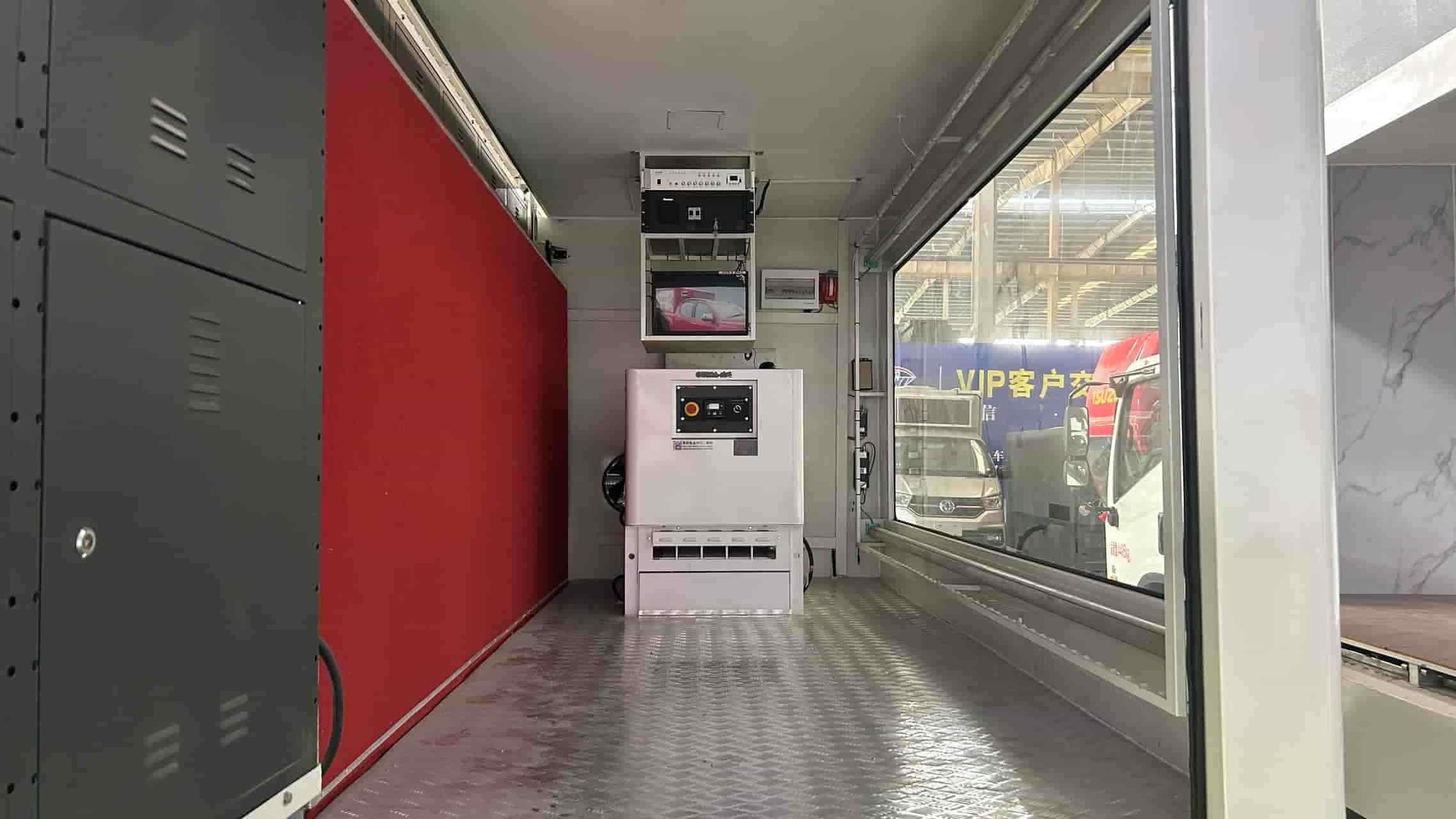

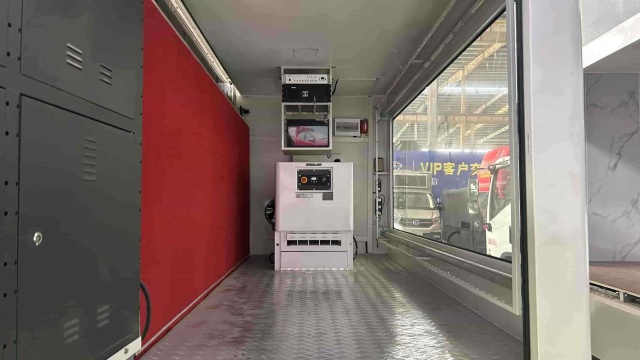

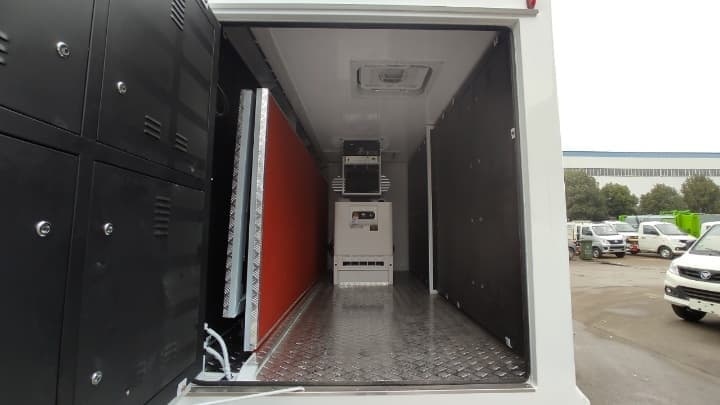

● Power Supply Equipment (Standard): One 8kW silent diesel generator from OMA is installed inside the vehicle.
(*Lithium battery power supply optional, *chassis engine drive "mild hybrid power supply mode" optional)
● External Power Interface (Standard): One 220V AC mains power interface device.
● Upper Structure Accessories (Standard): One spare LED color screen module, one power supply box, 10 ribbon cables, and 30 meters of external wiring.
Optional: Hydraulic screen lifting, stage
