[Chassis Specifications] National VI emissions standard, wheelbase 3070 mm, Engine: DAM15KR Harbin Dong'an 115 horsepower, 1.5L gasoline engine, Tire size: 175R14LT 8PR, ABS, five-speed transmission, power steering, manual windows.
[Upper Body Configuration] 1. Body Construction: Carbon steel frame, outer shell made of 1.2mm cold-rolled steel plate, base layer with anti-rust paint, and exterior sprayed with special vehicle paint. The interior features fiberglass lining, LED lighting, and an aluminum checkered plate floor. Includes one top ventilation skylight, front panel louvered ventilation design, skirt surrounding structure with access doors, and a toolbox.
2. Driver's Side (Standard): High-definition outdoor full-color LED screen, capable of displaying videos, images, text, etc. Screen size: 2560×1440mm. (*Optional: Hydraulic lifting function for the driver's side screen, lifting height ≥1450mm)
3. Passenger Side (Standard): Glass roller light box or enclosed cargo box structure. (*Optional: Dual-sided LED full-color screens)

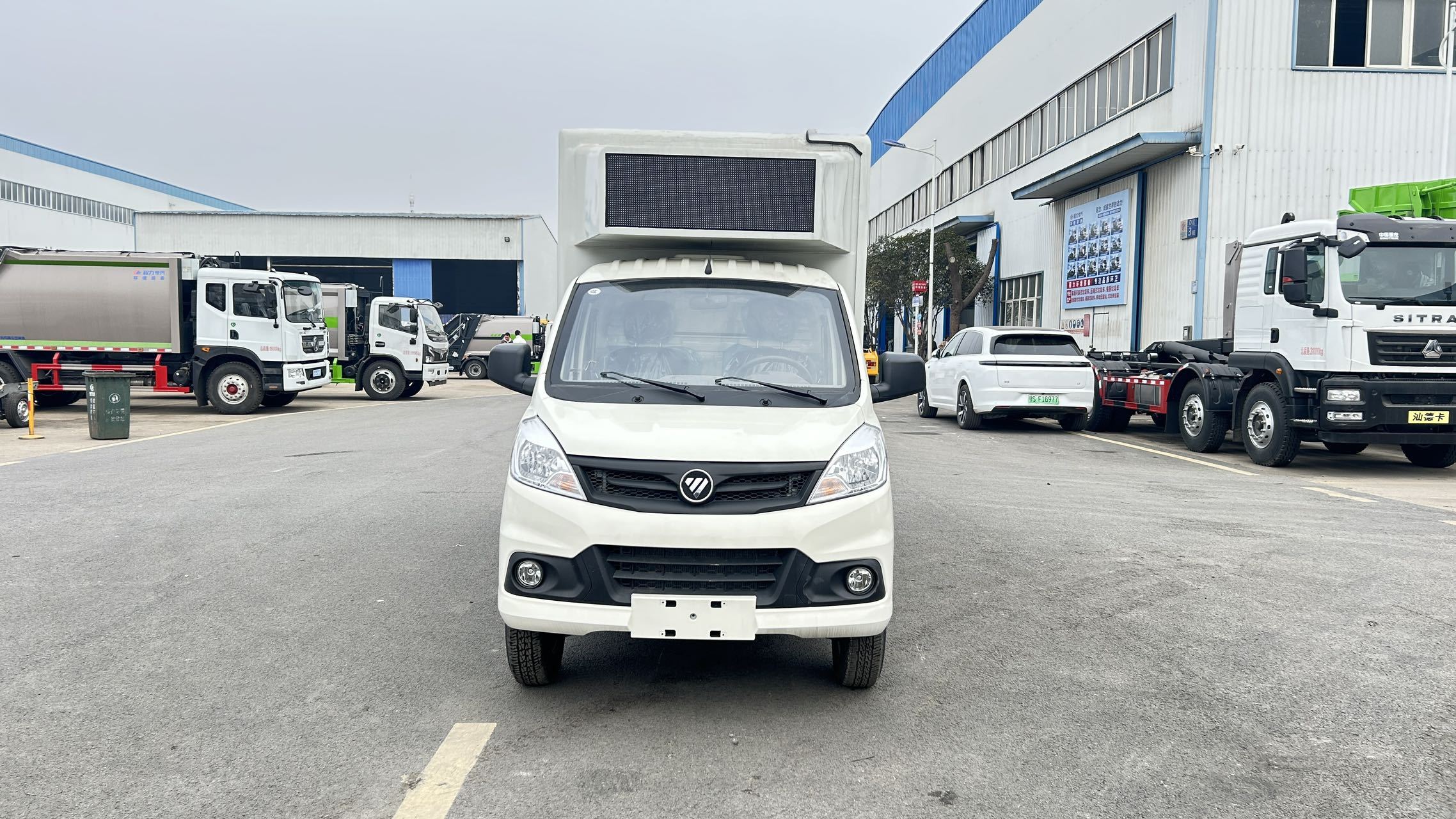

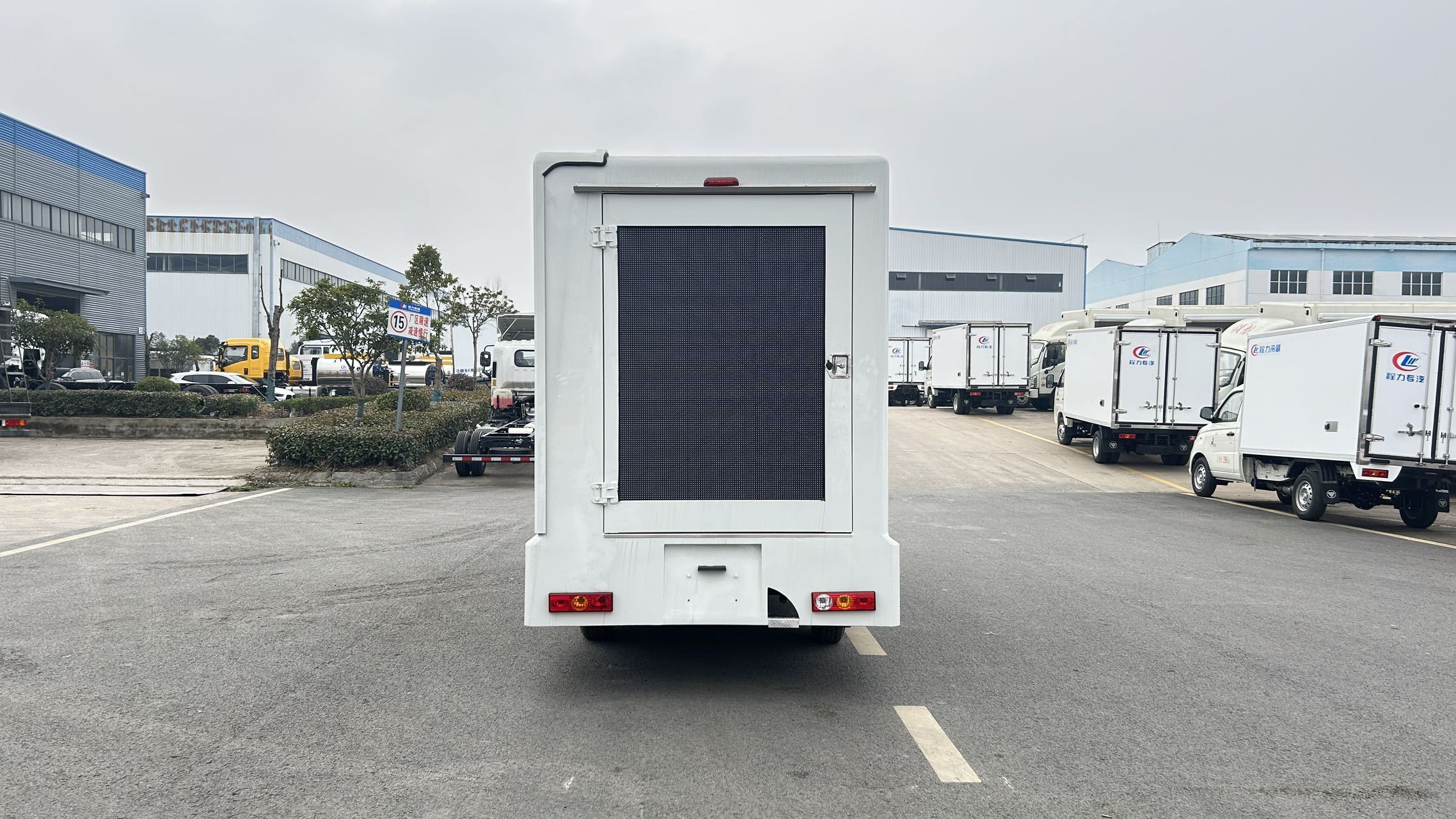

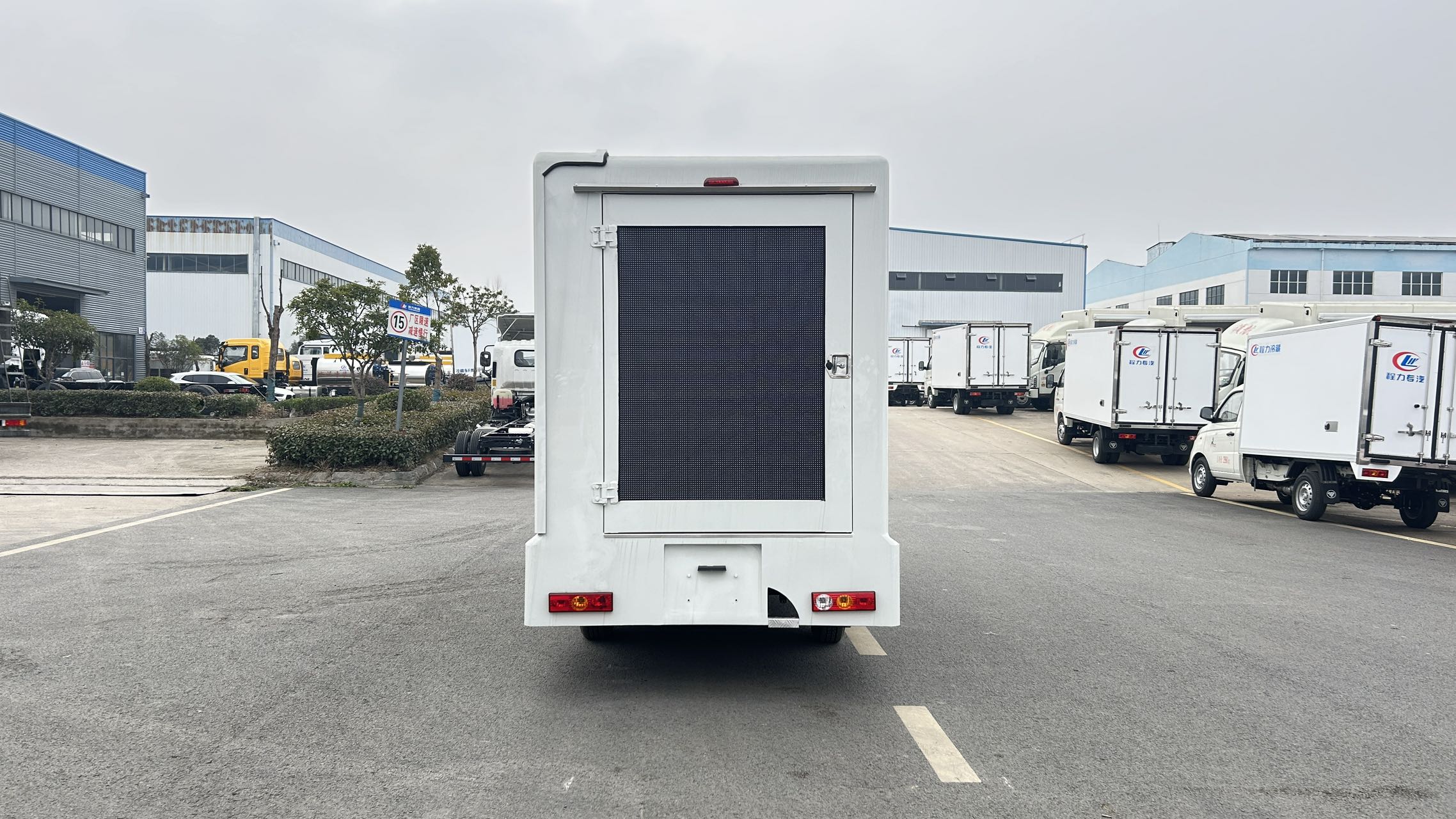

4. Front and Rear (Standard): P10 single-red LED display screen, capable of displaying text information. Front screen size: 960×320mm, rear screen size: 960×1280mm. (*Optional: Rear single-red LED screen can be upgraded to a full-color LED screen)
5. Control Equipment (Standard): Mobile phone controlled playback box, (*Optional: Industrial control computer)
6. Audio Equipment (Standard): One Evotech broadcast-grade 200W amplifier, two 30W waterproof speakers.

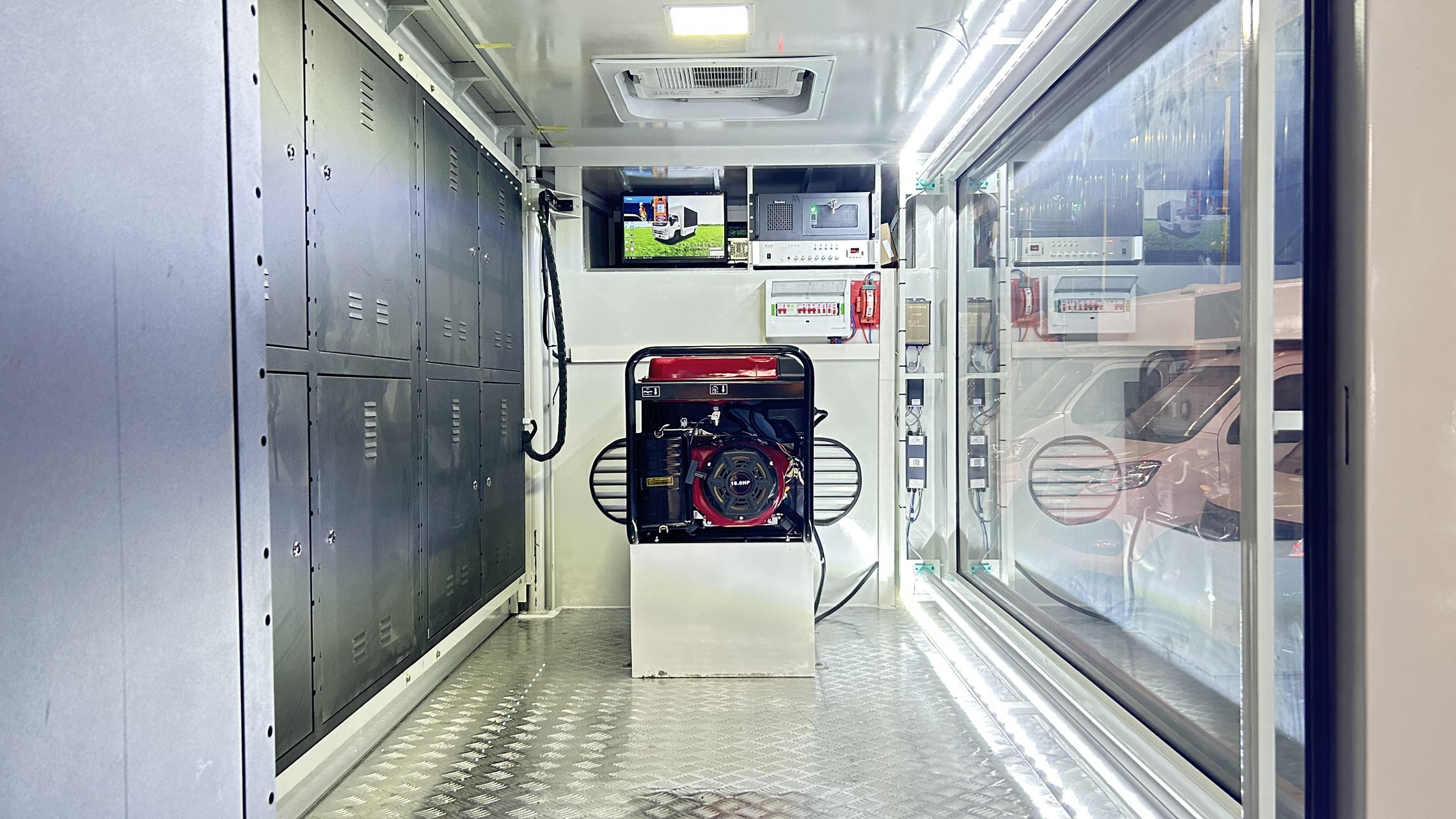

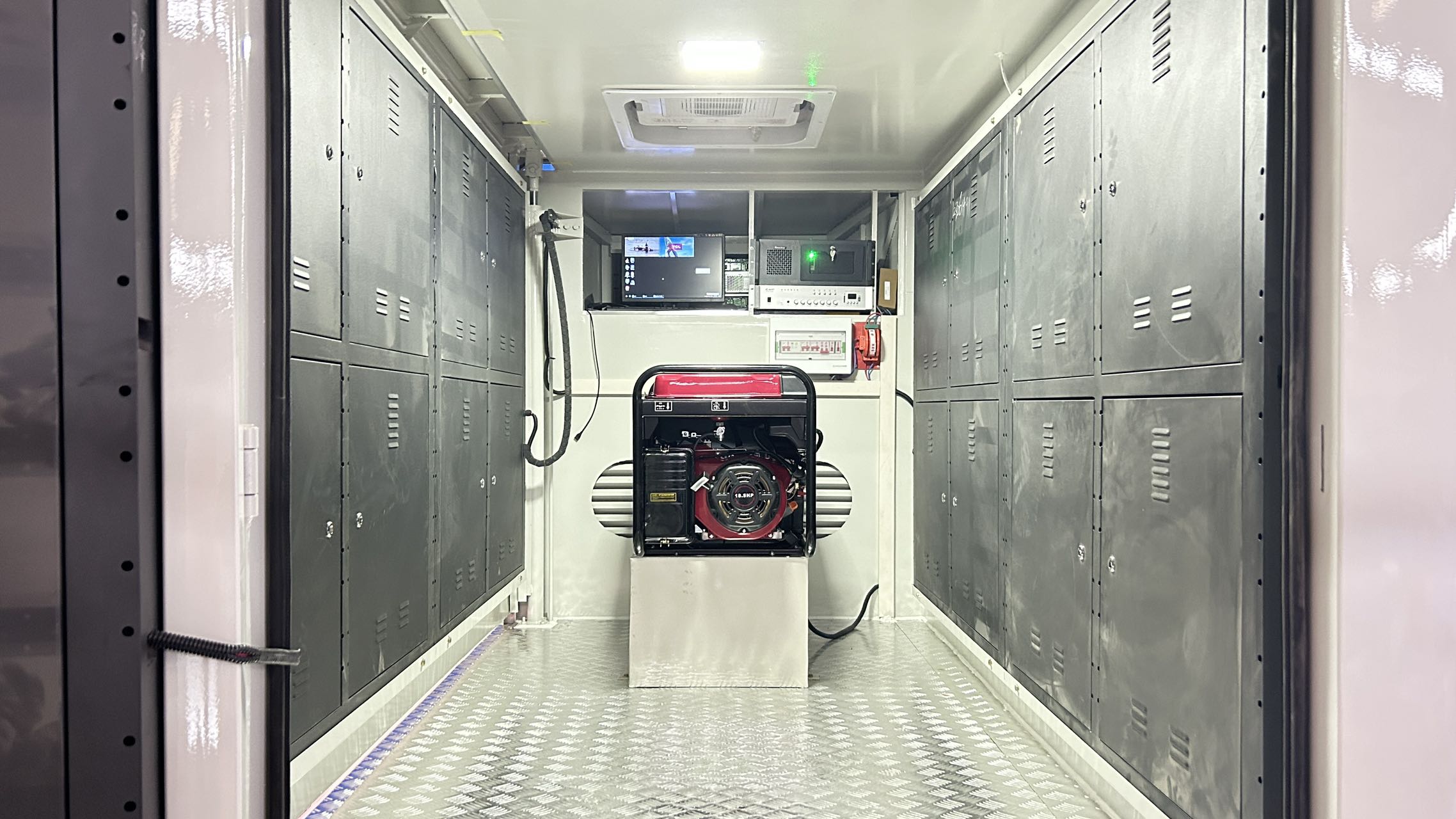

7. Power Supply Equipment (Standard): One Yihu gasoline generator installed inside the vehicle body. (Note: Generator power: 6.5KW for single-sided color screen, 9.5KW for dual-sided color screens) The upper body comes standard with a 220V mains power interface. (*Optional: "Chassis-driven mild hybrid power supply device" or "lithium battery pack" power supply device)
8. Accessories (Standard): One spare LED color screen module, one power box, 10 connecting cables, 20 meters of external cable.

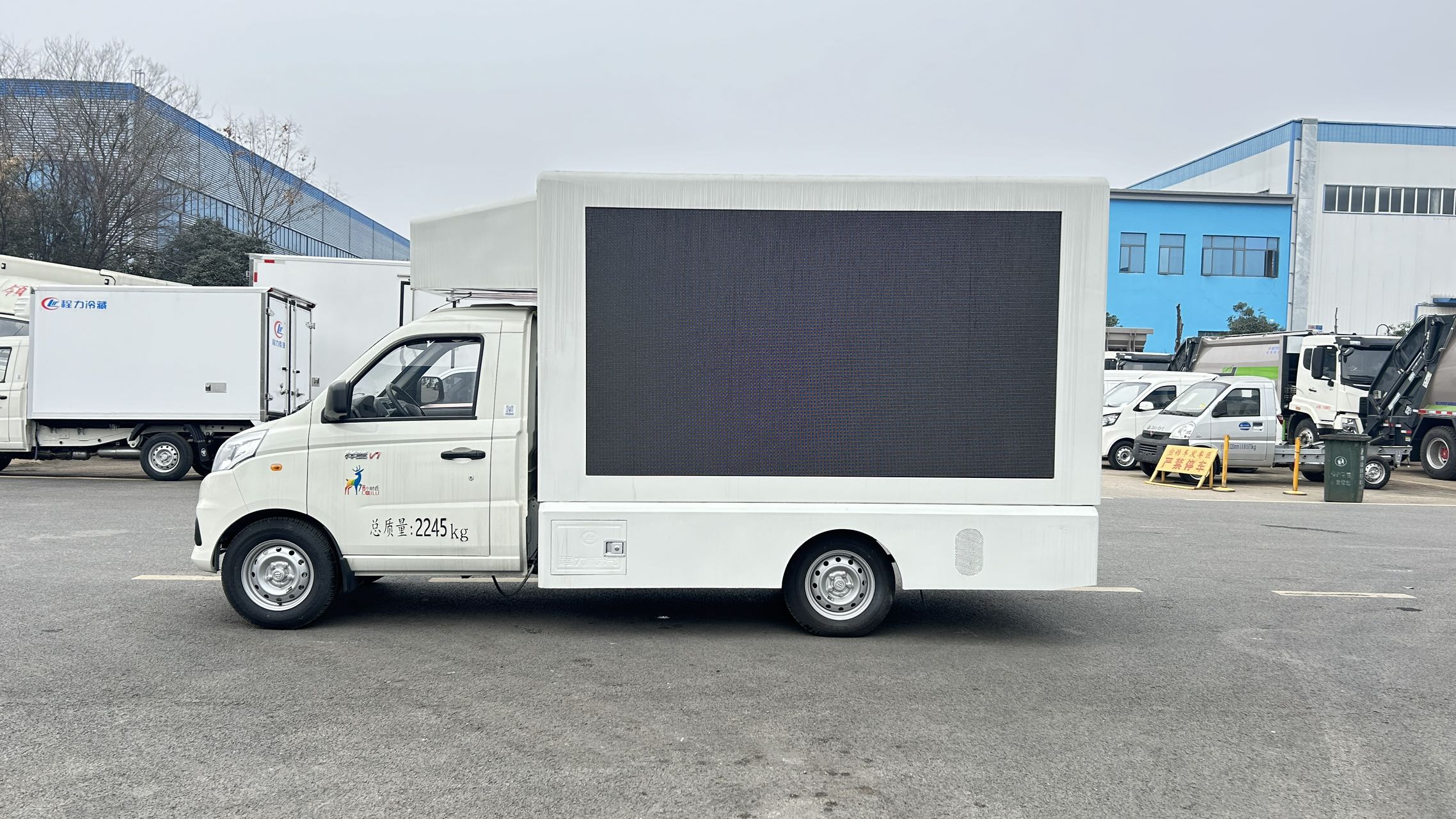

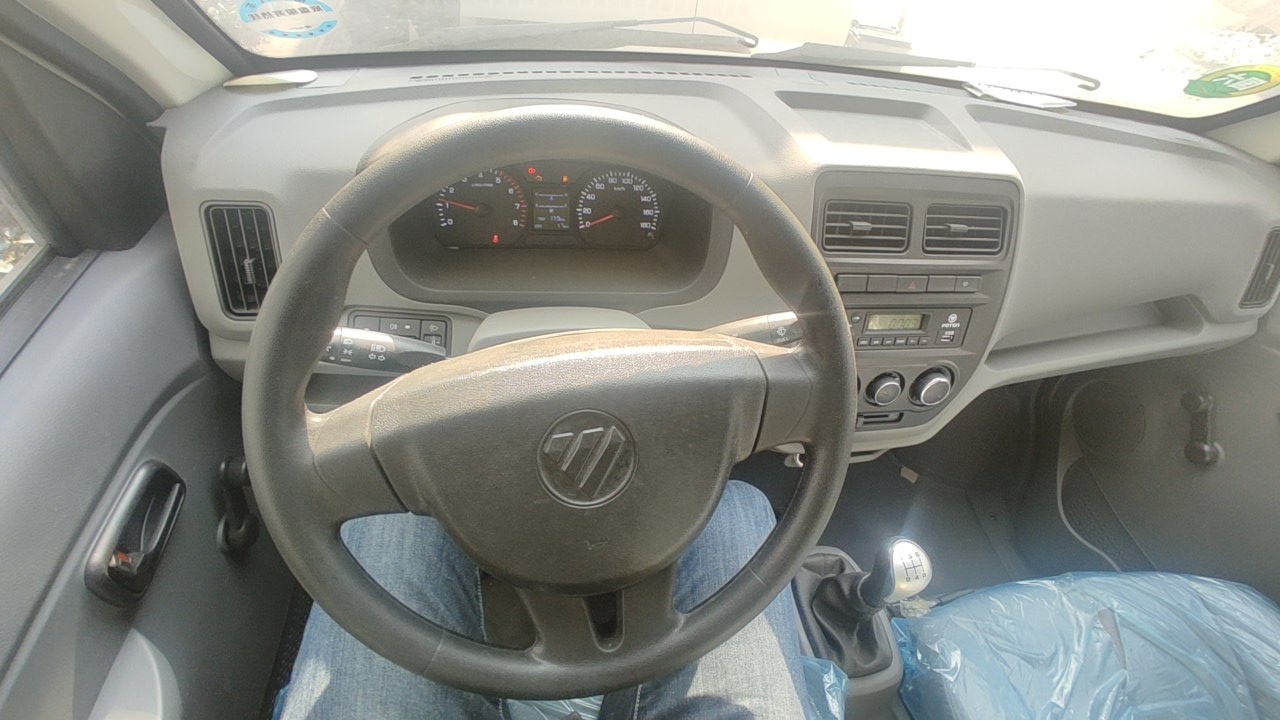

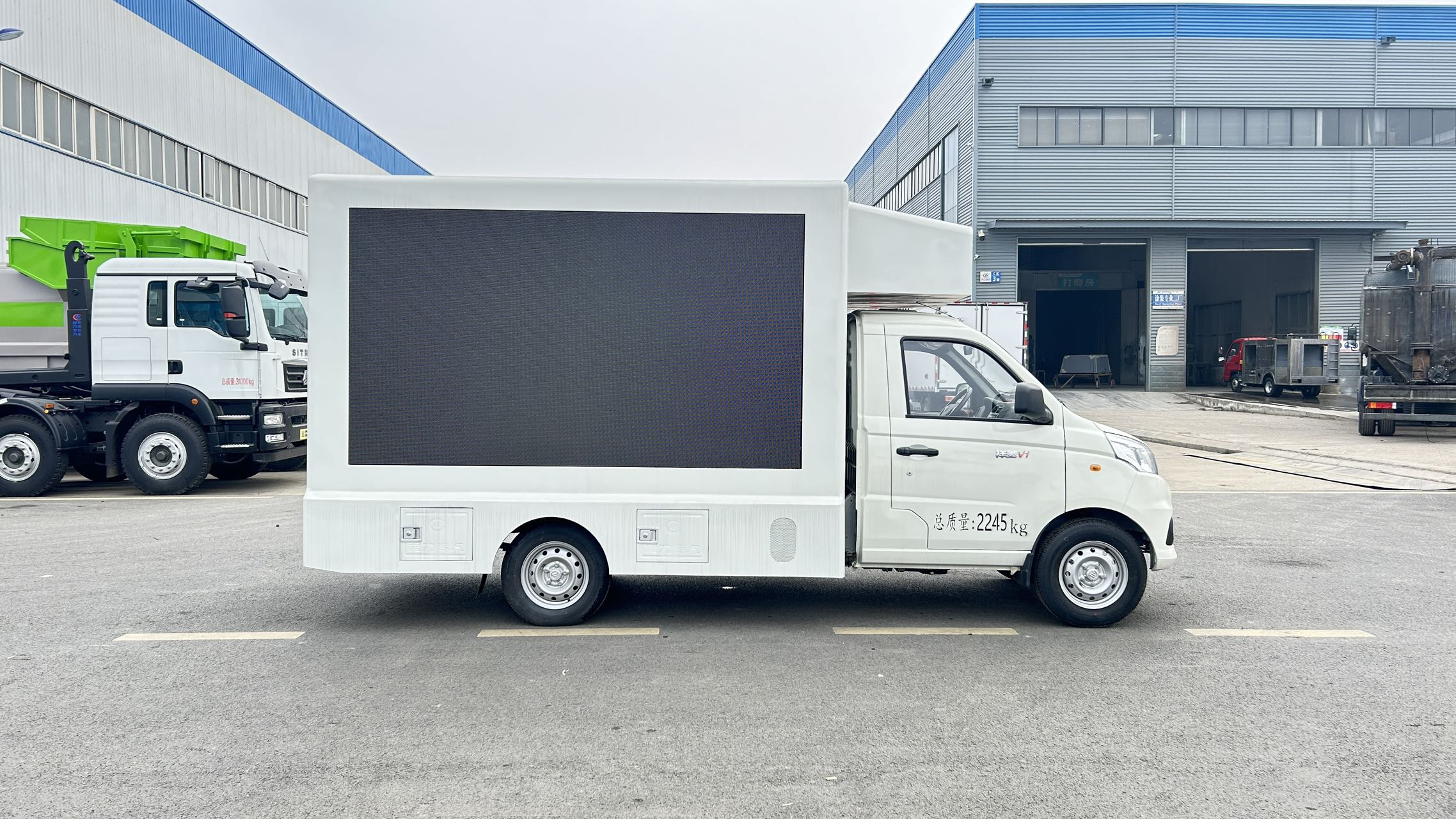

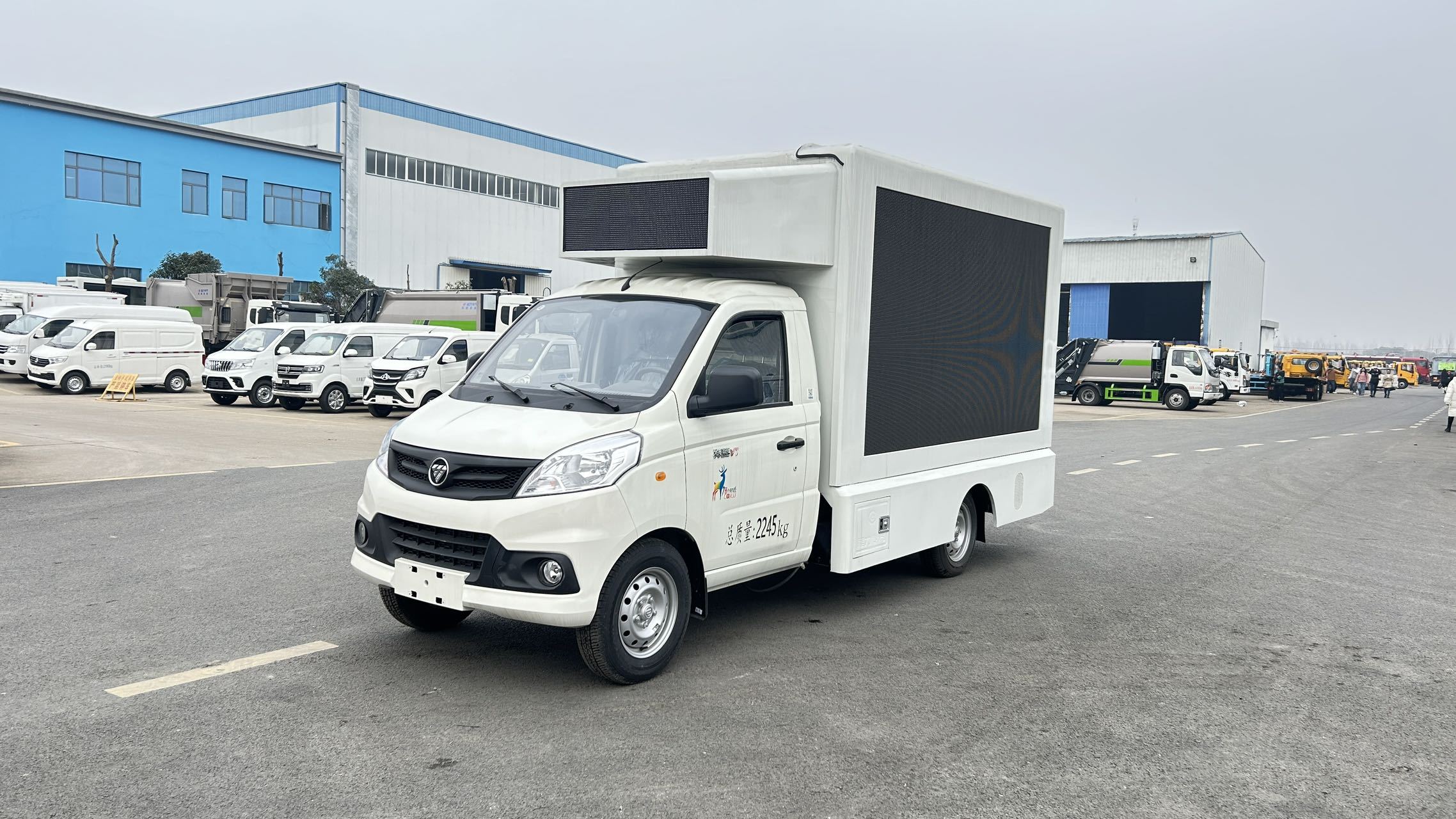

Vehicle reference images

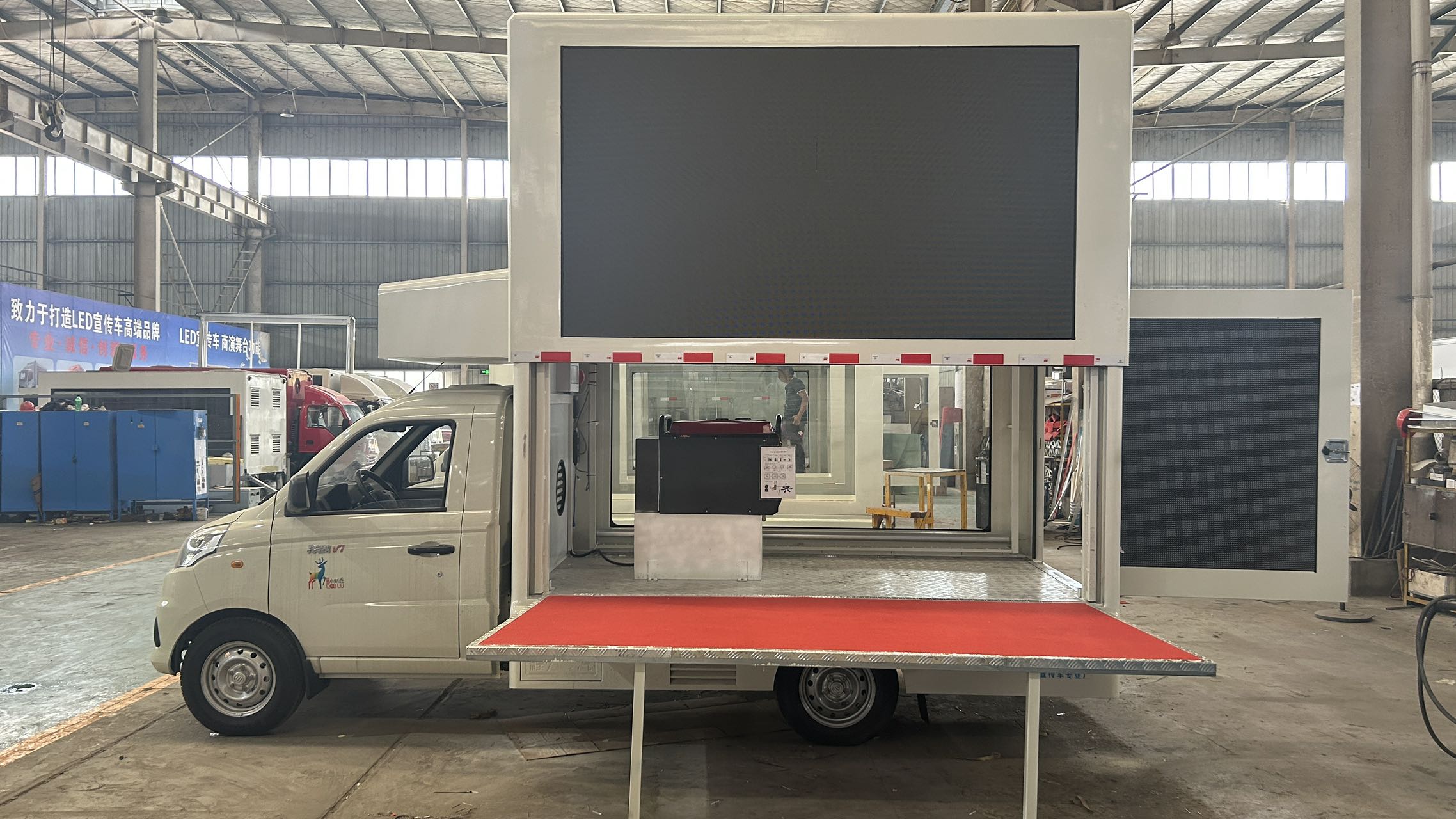

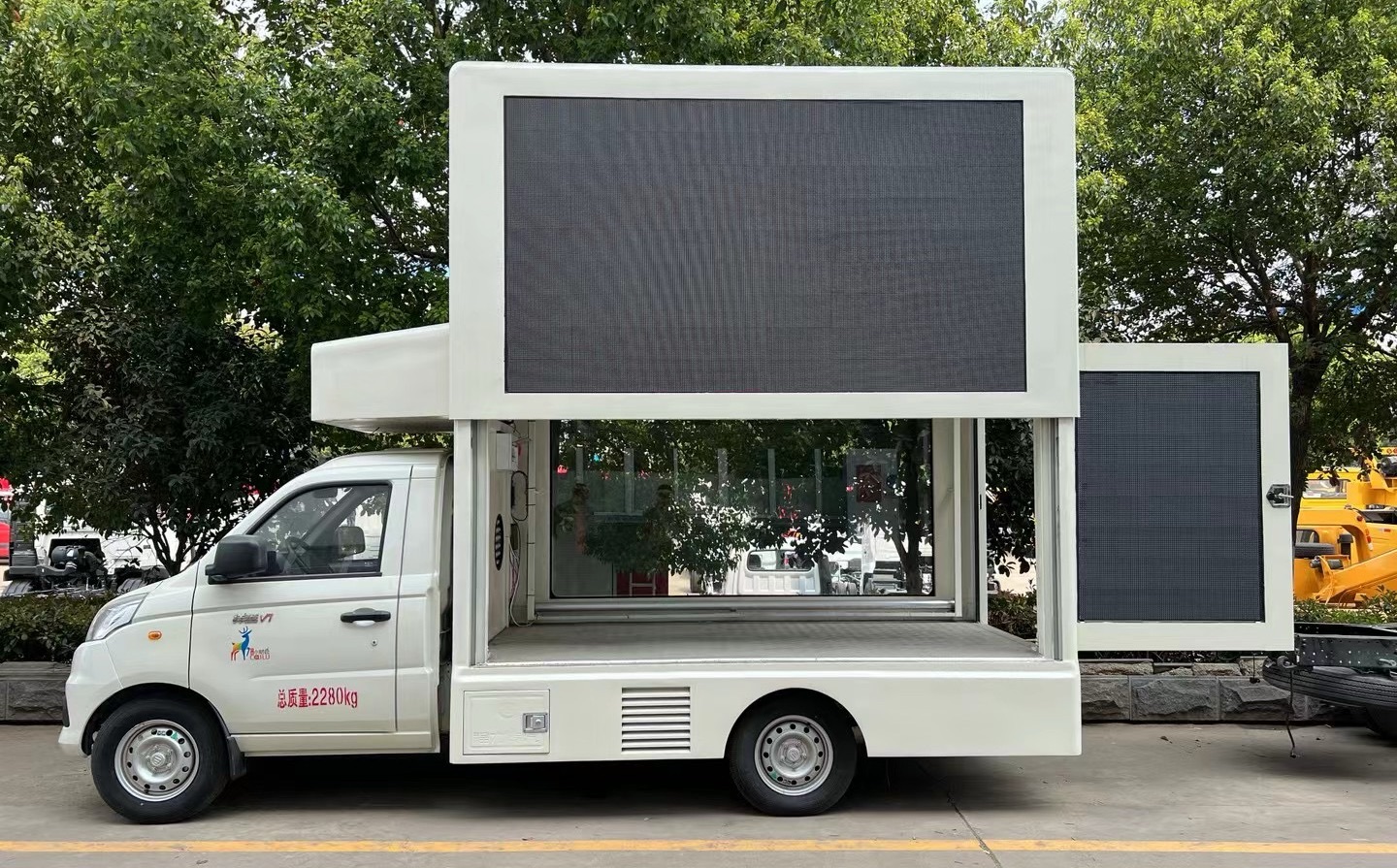

Optional: Single-sided screen with hydraulic lifting mechanism.
