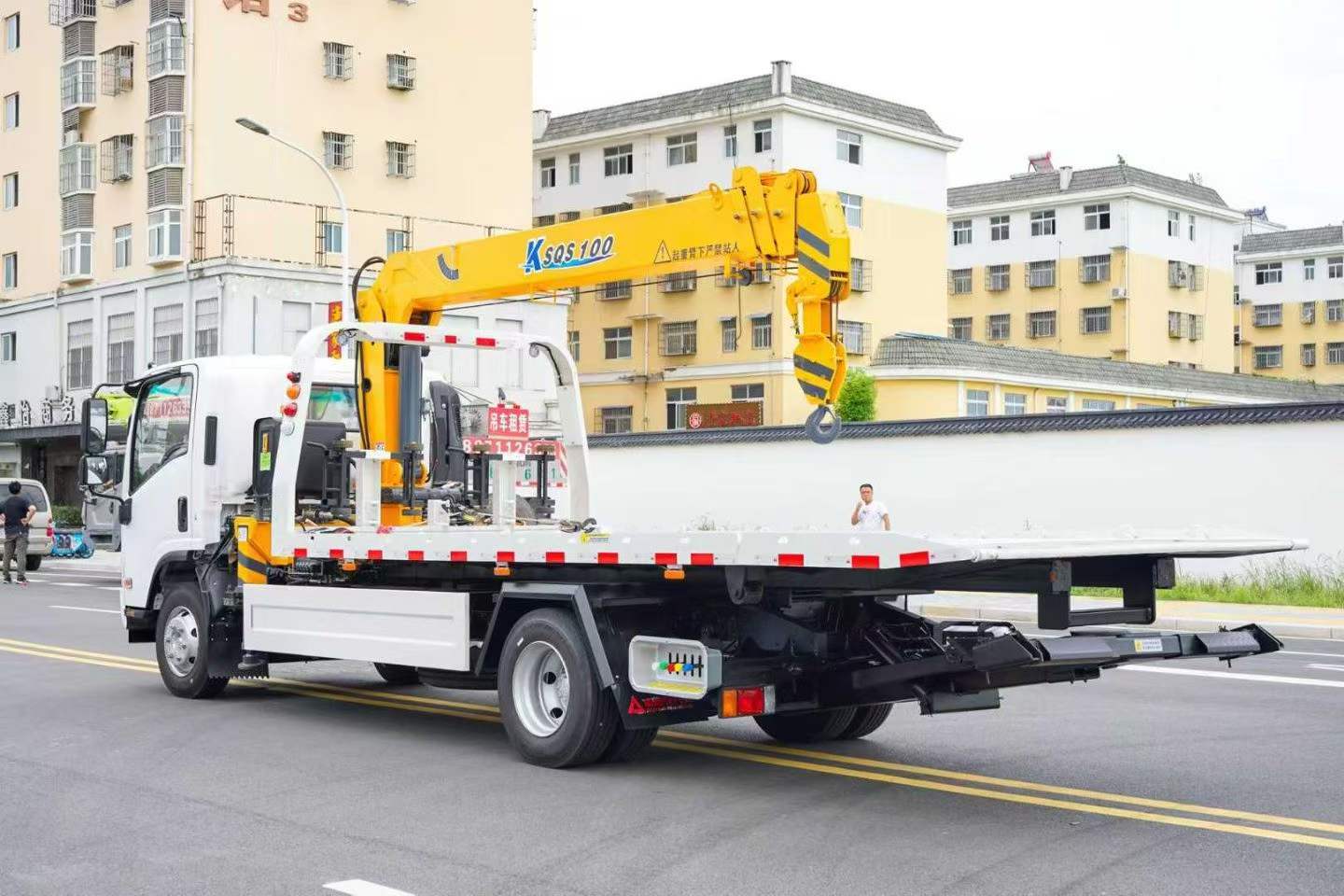

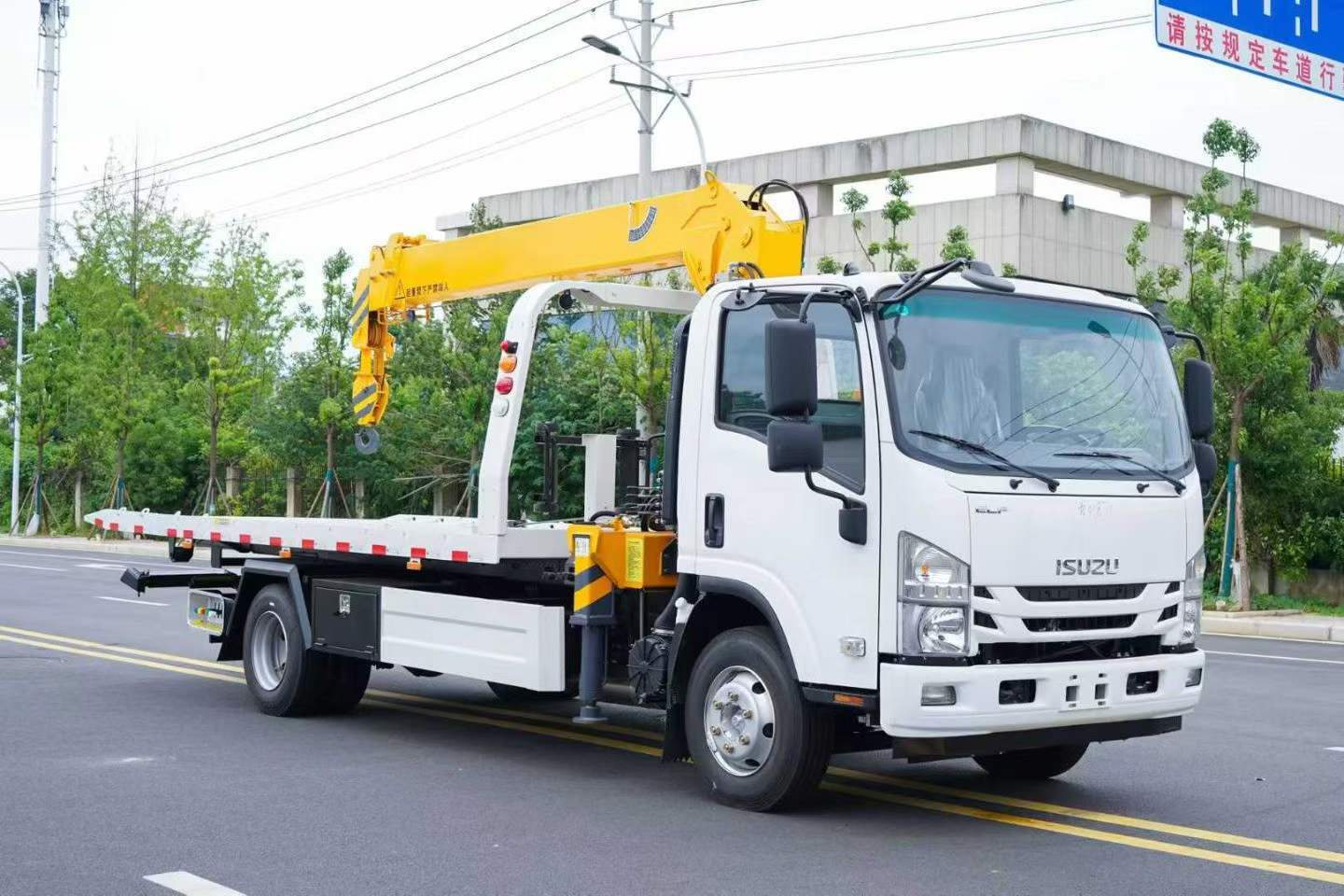

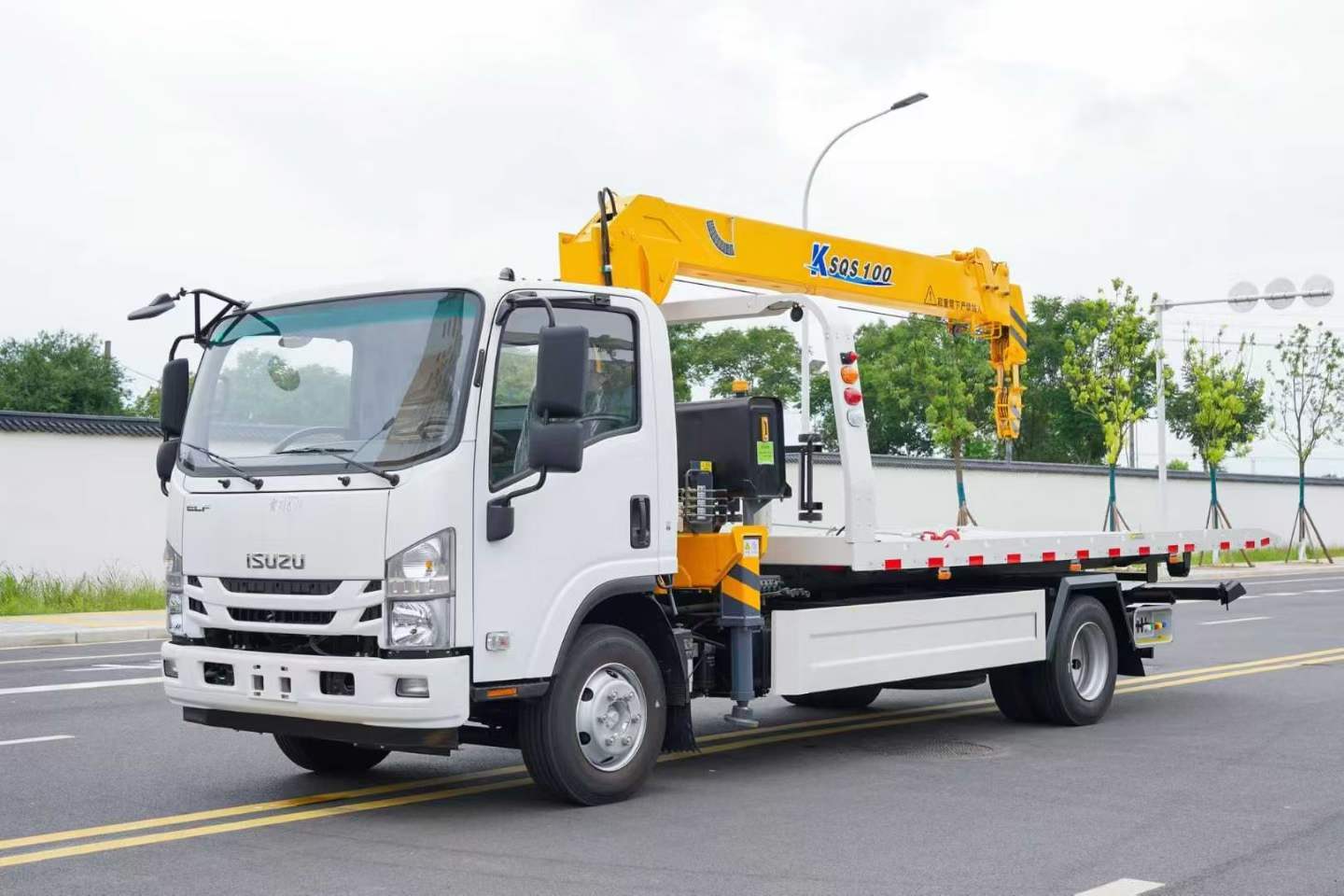

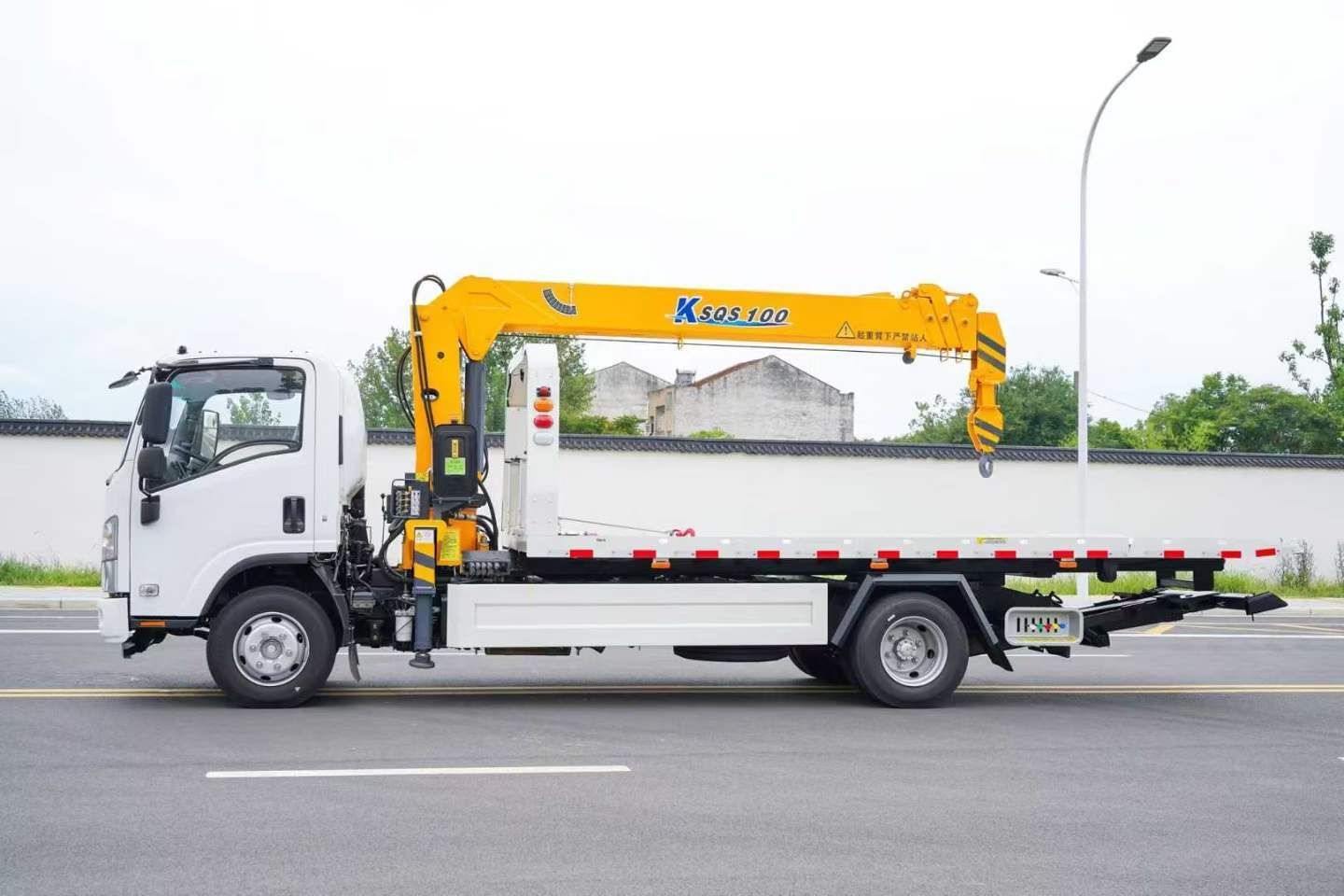

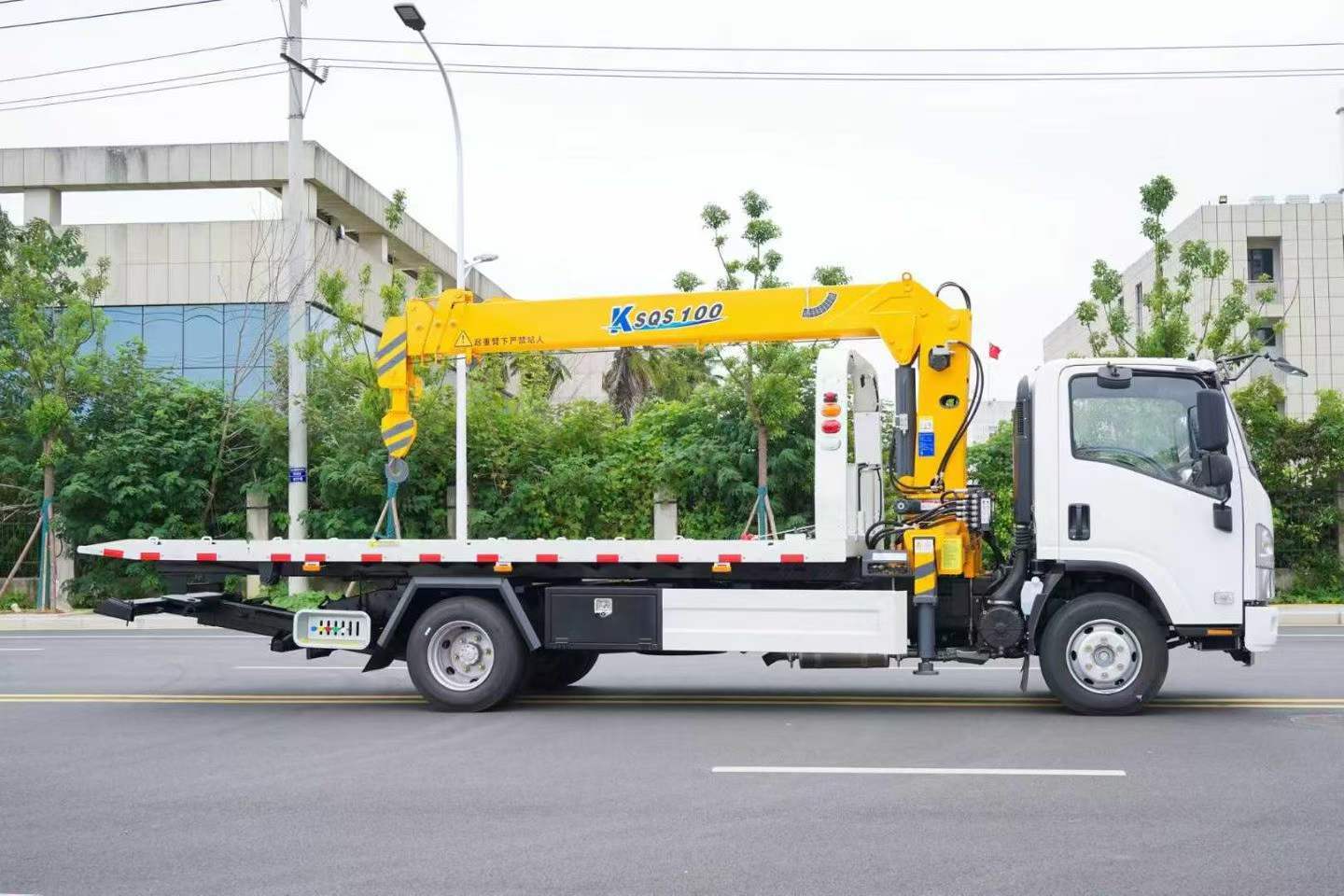

Chassis configuration: Isuzu 700P, 4175 wheelbase, chassis equipped with Isuzu 3X level wide body cab: standard Isuzu 4HK1-TCG61 engine, National VI emission 190 horsepower, Isuzu MLD six speed transmission, with air conditioning, steering assistance, central locking, electric glass, multifunctional steering wheel, front axle 4 tons, rear axle 7 tons, with ABS, air brake, cab can be flipped, standard 235/75R17.5 tires.
XCMG 4-ton 4-section crane
Upper configuration: vehicle electrophoretic paint, through axis flipping plate, 5mm thick patterned plate, standard small hole, 14mm * 140 solid frame with a hole height of 45, plate length of 5.7 meters (main board 4.3 meters including hinges, tail board 1.4 meters), plate width of 2.4 meters, welded pull rings on both sides of the flat plate, 90-105 # main oil cylinder, 80-95 # lifting oil cylinder, double auxiliary beam structure, 120 * 60 double auxiliary beams, 10 thick sliding tracks, extended and encrypted cross braces, double field grid, 4-ton hydraulic winch, 25 meter steel wire rope, 4-ton rear support arm hanging main beam. Bilateral linkage operation, 1 pair of auxiliary carts, 4 straps, 1 pair of tire holding tubes, 1 pair of 7-shaped arms, and a set of side lights. Paint: white/blue.
