Chassis Signal: QL1043BUHAY

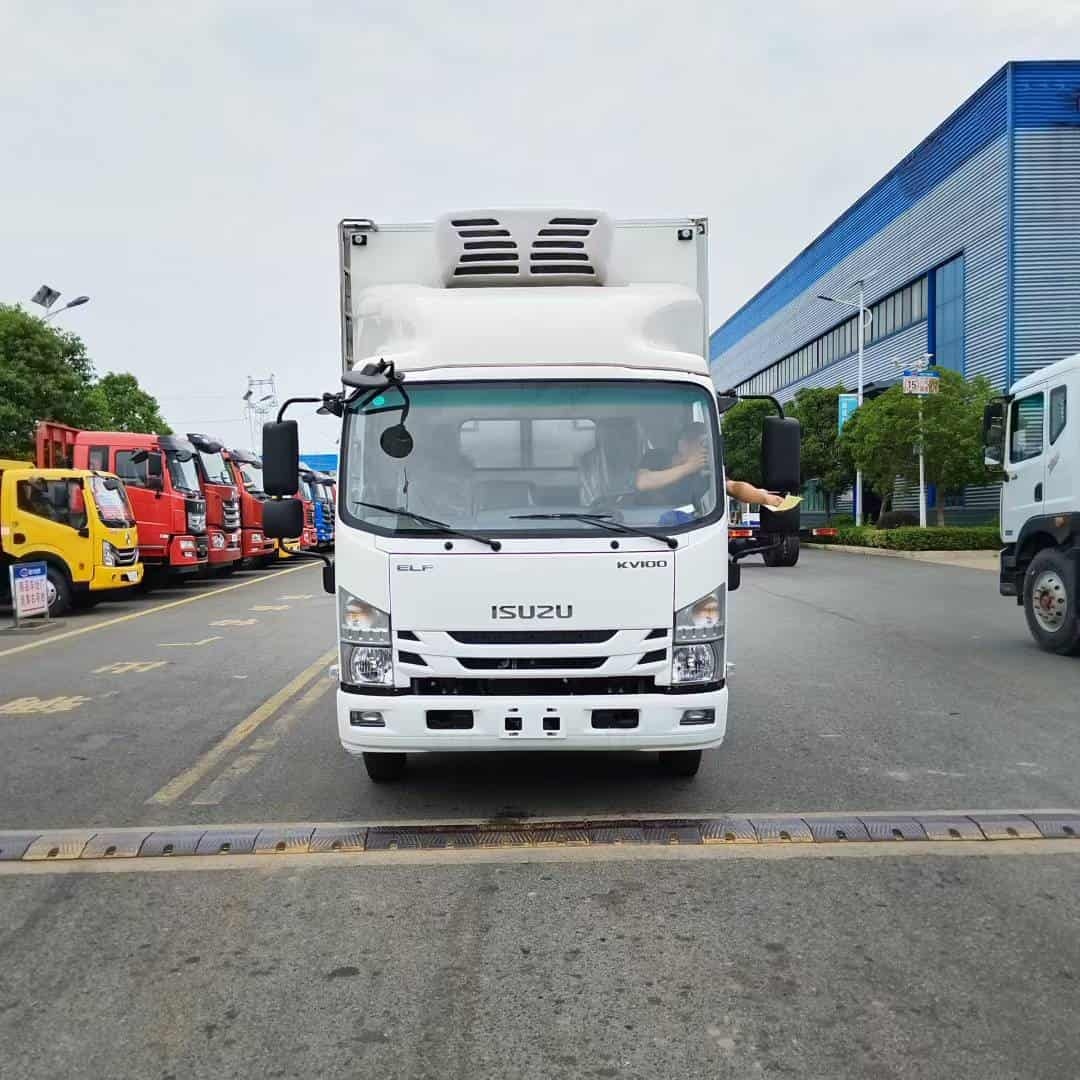

Chassis Configuration: Uses original Isuzu chassis, tiltable cab, Euro VI emission standard with air conditioning, Isuzu 120hp engine, power steering, multi-function LCD instrument panel, 3-ton front axle, 5-ton rear axle, with ABS, air brakes, standard 700R16 tires, electric windows, and central locking.

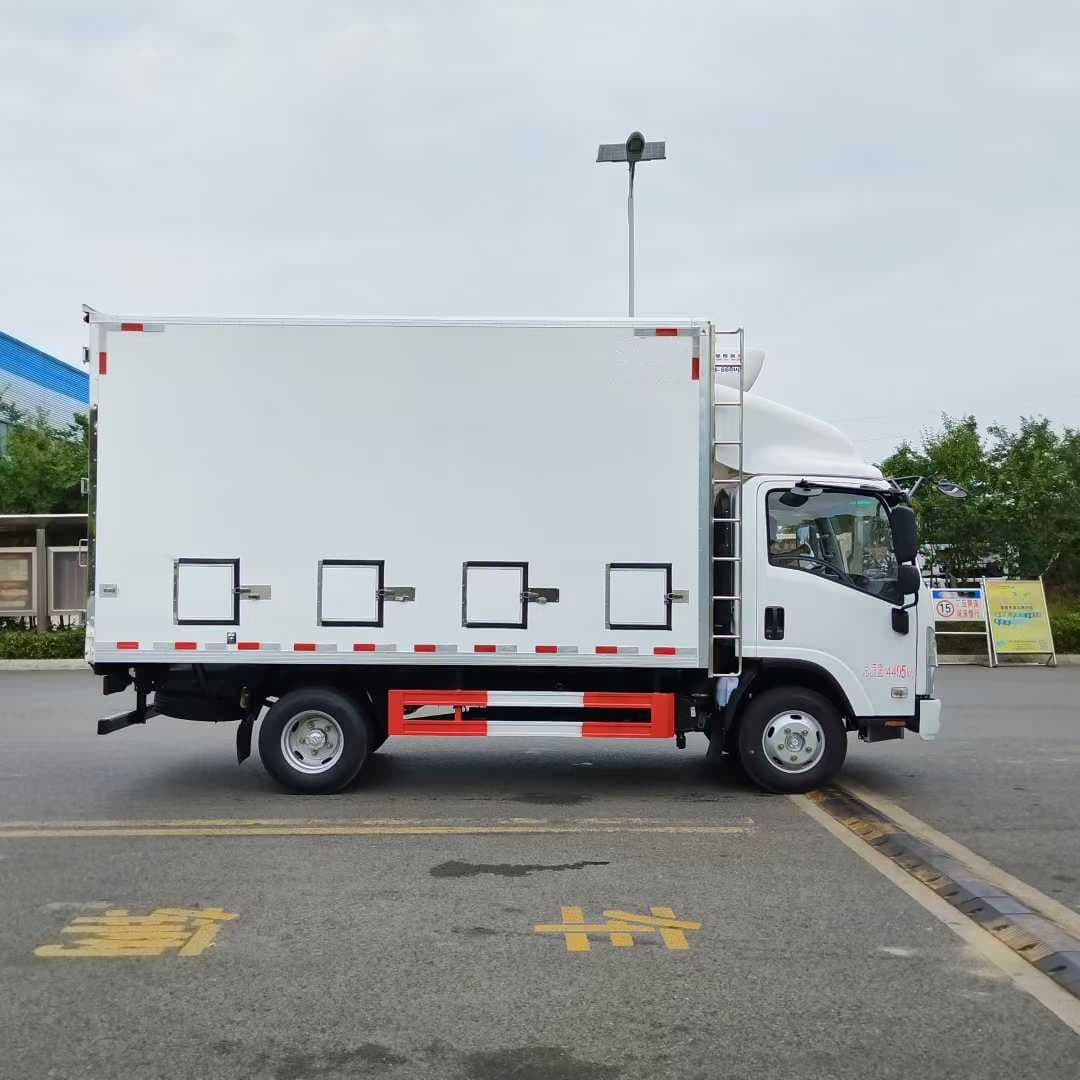

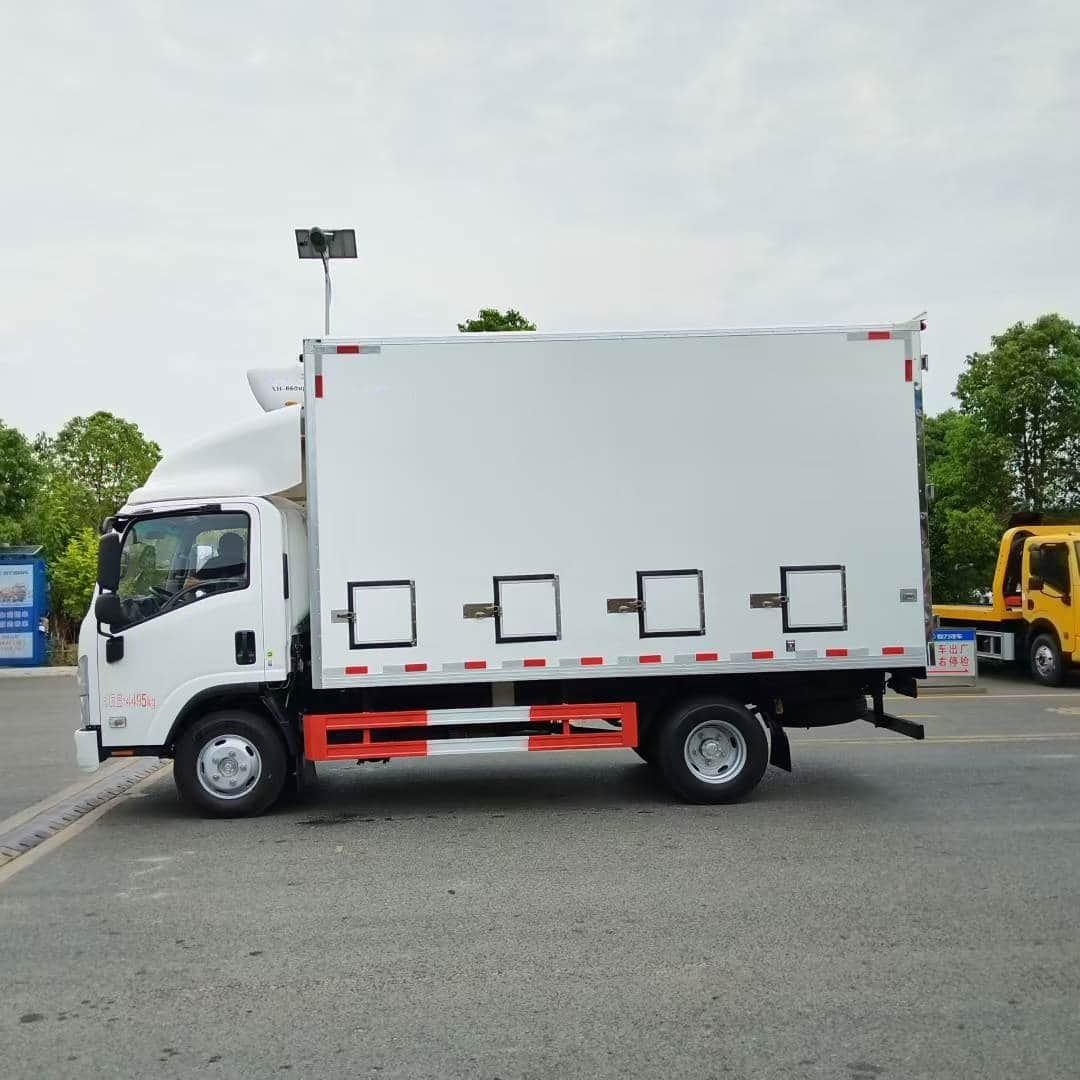

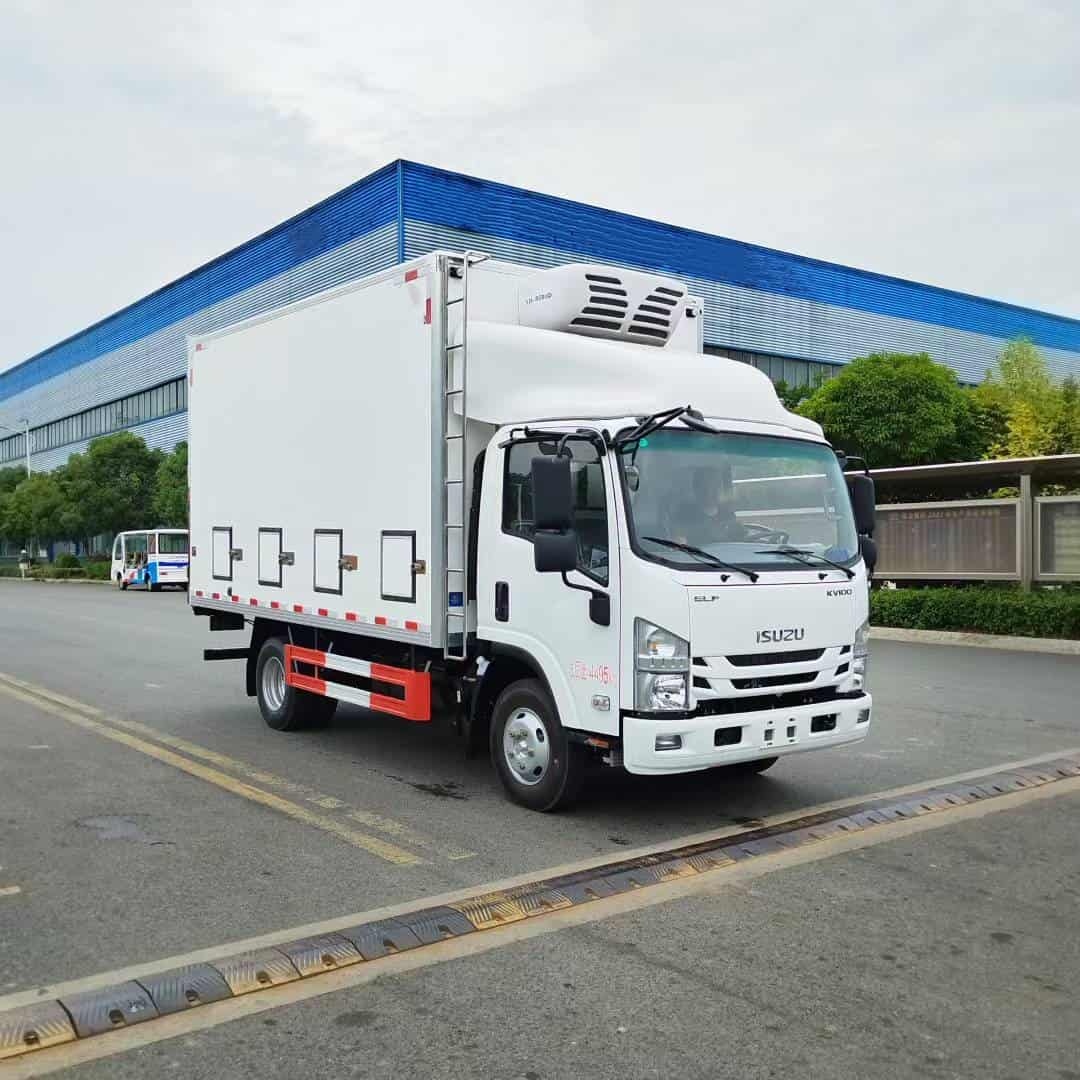

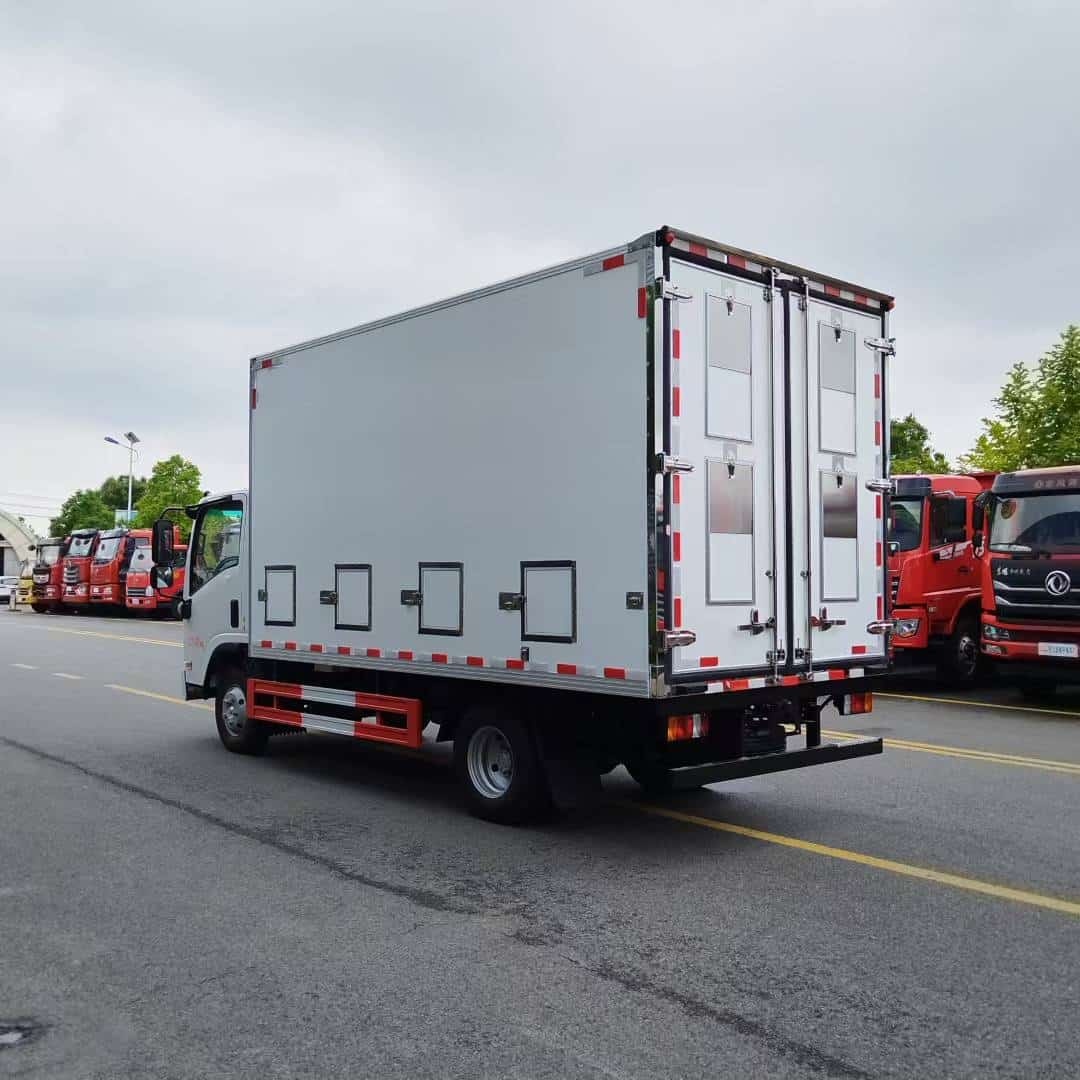

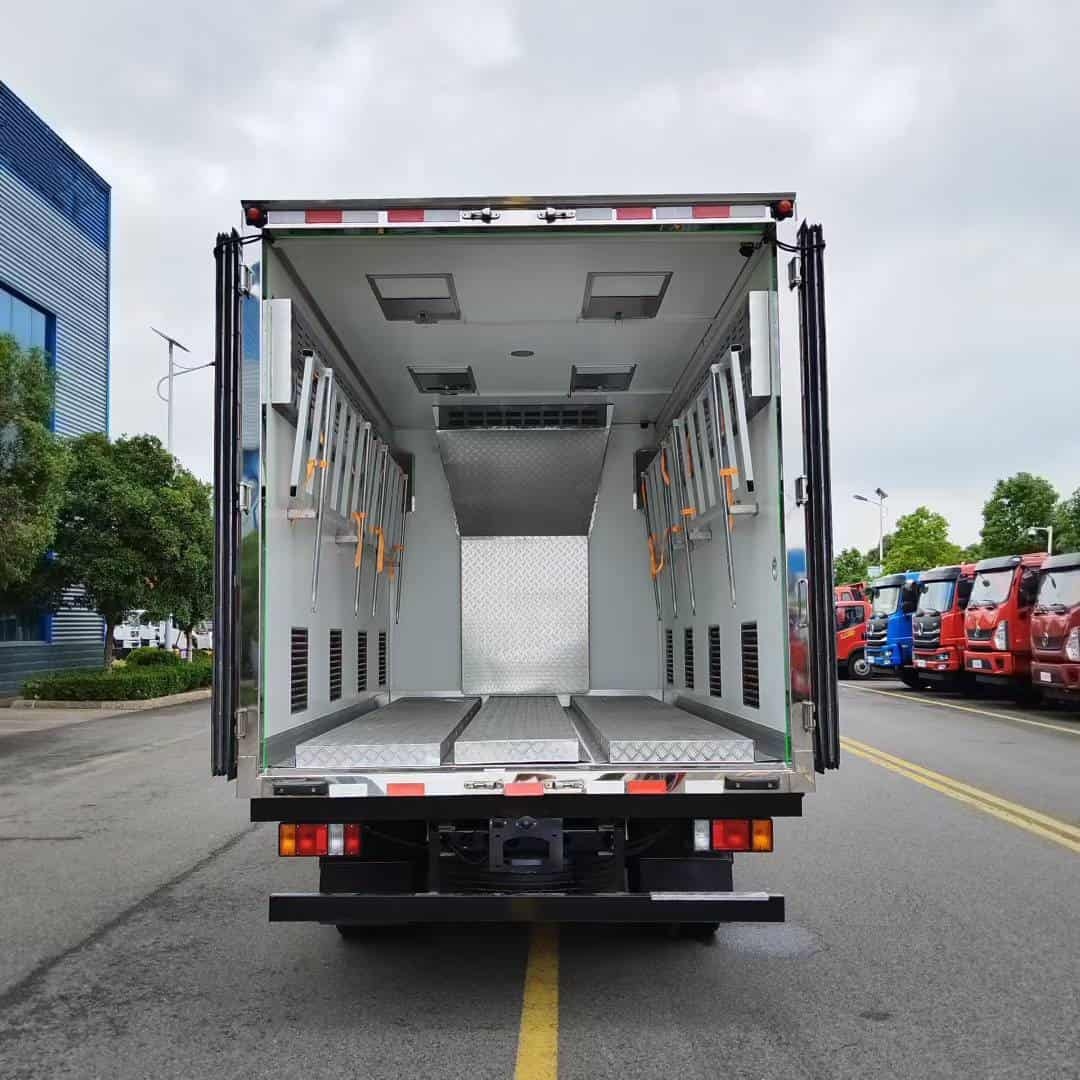

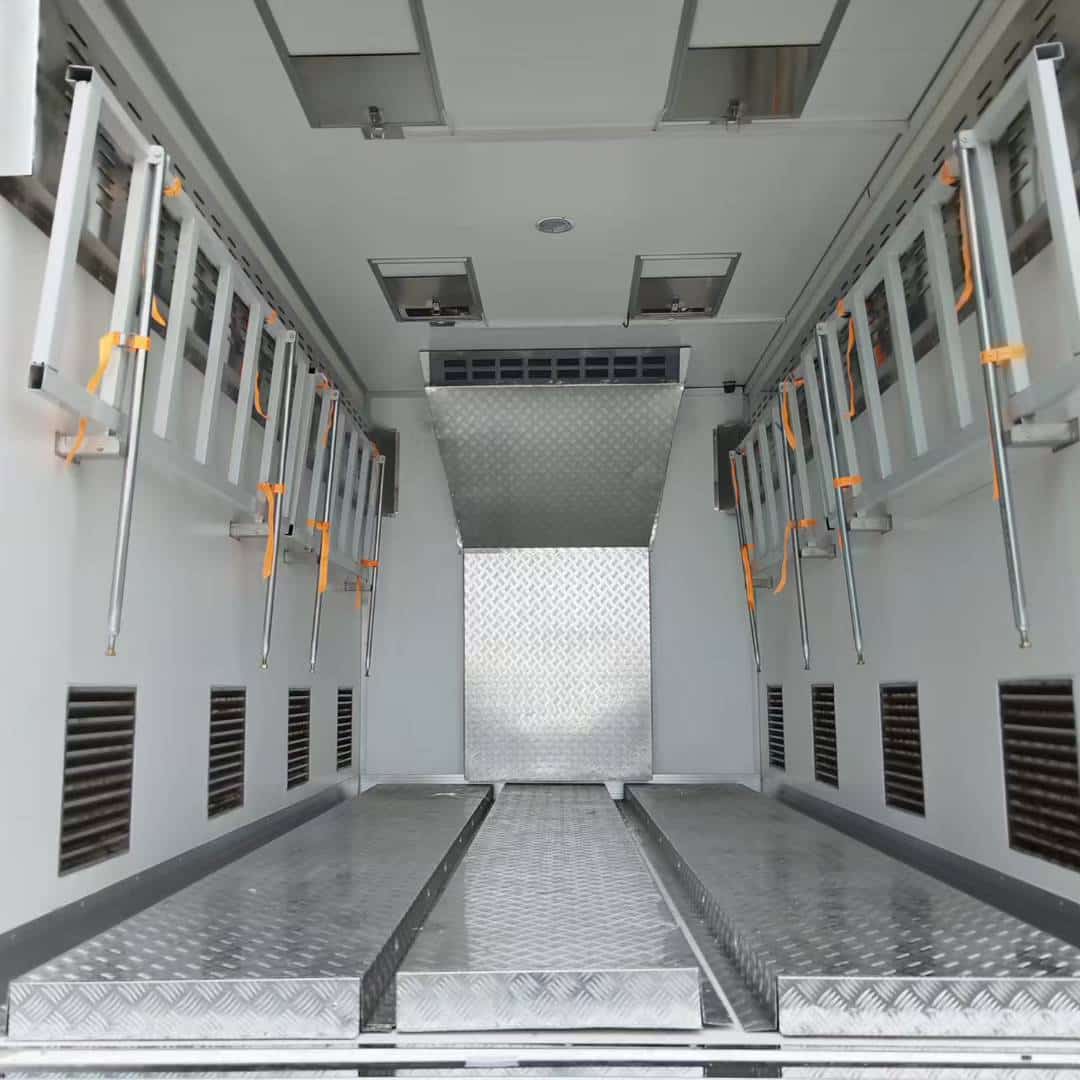

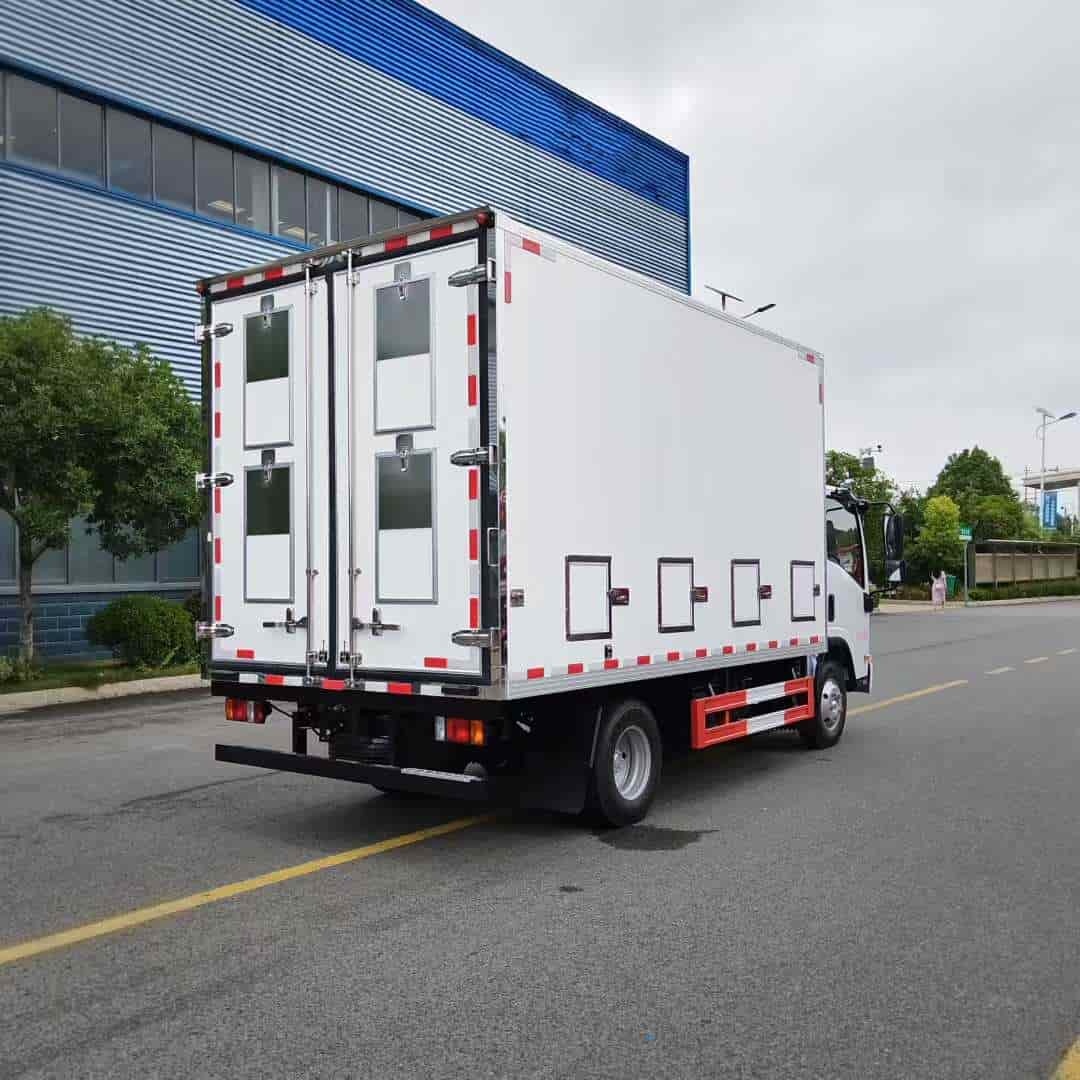

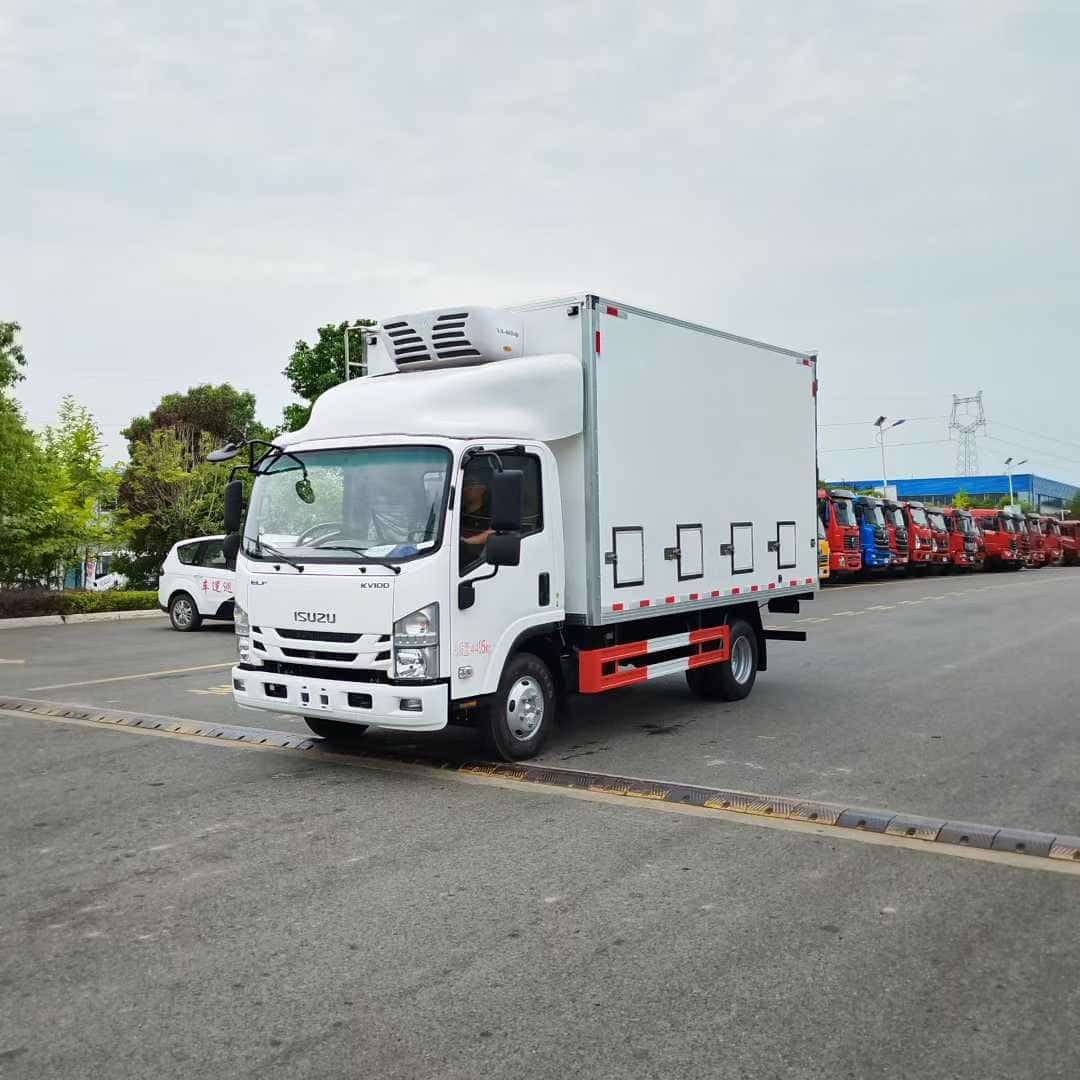

Upper Structure Configuration: The cargo box is constructed with inner and outer fiberglass, with an 8cm thick polyurethane insulation panel in the middle. It features a double-opening tailgate with stainless steel locks. The cargo box is white, maximizing internal dimensions. Overall vehicle dimensions: 5995*2270*3400mm; internal dimensions: 4125*2100*2200mm. Equipped with a Xinghui -15°C dual-temperature refrigeration unit. The front roof panel is made of 5cm thick sheet metal. Optional ventilation ducts are available at the bottom. Louvers are installed on both sides of the cargo box. A sunroof and ventilation fan are optional on the top. The tailgate also has a ventilation fan. A detachable rack is optional inside the cargo box. The subframes are padded. Manufactured strictly according to the approved dimensions to ensure the vehicle does not exceed weight limits.
Included: One set of vehicle certificate of conformity/vehicle, one set of vehicle registration invoice/vehicle, one set of after-sales service manual/vehicle, and one set of vehicle tools/vehicle.
The cargo box is 4 meters long, with a usable area of approximately 15 cubic meters. It can store 12,000-14,000 chicks.
