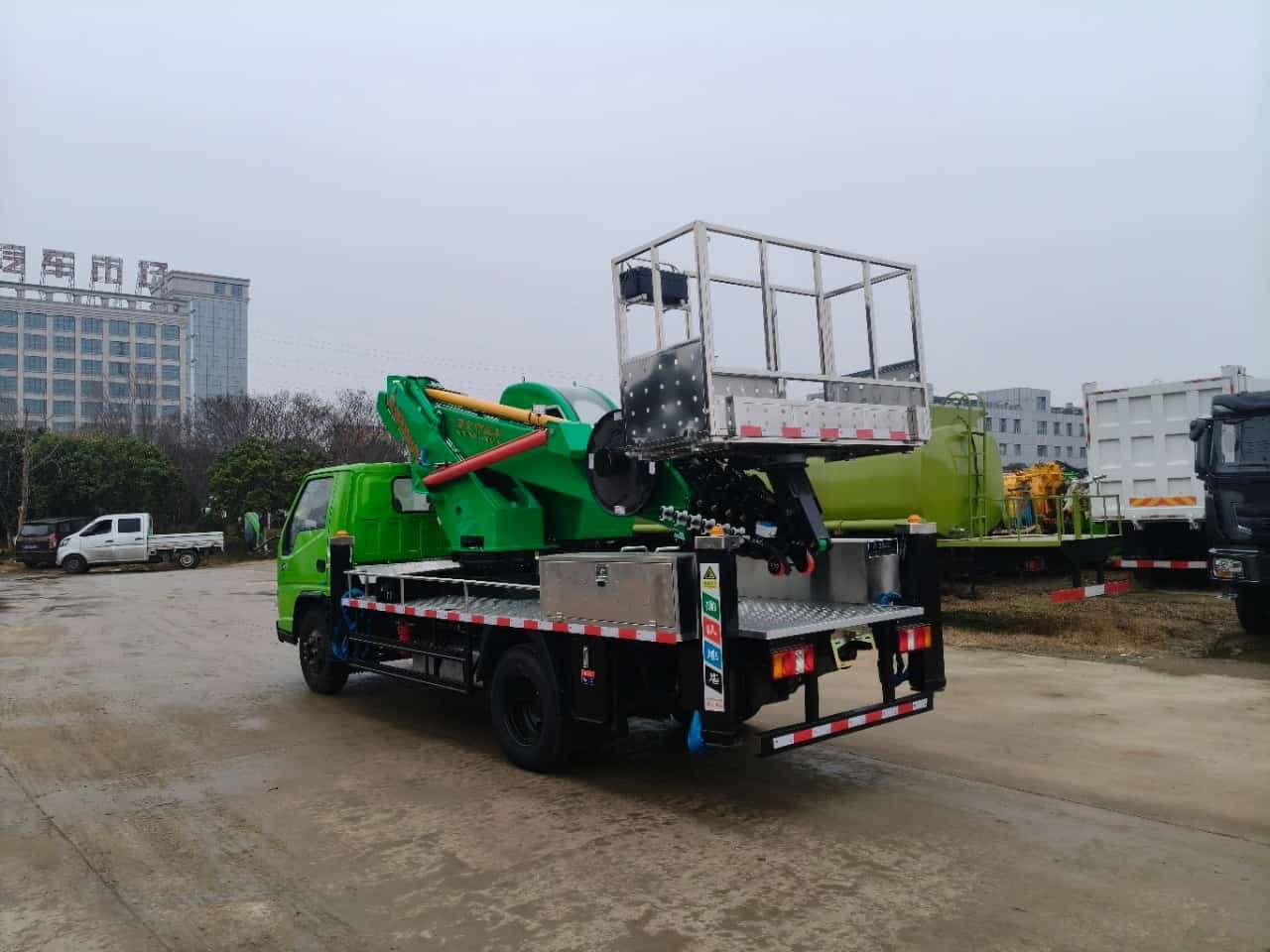

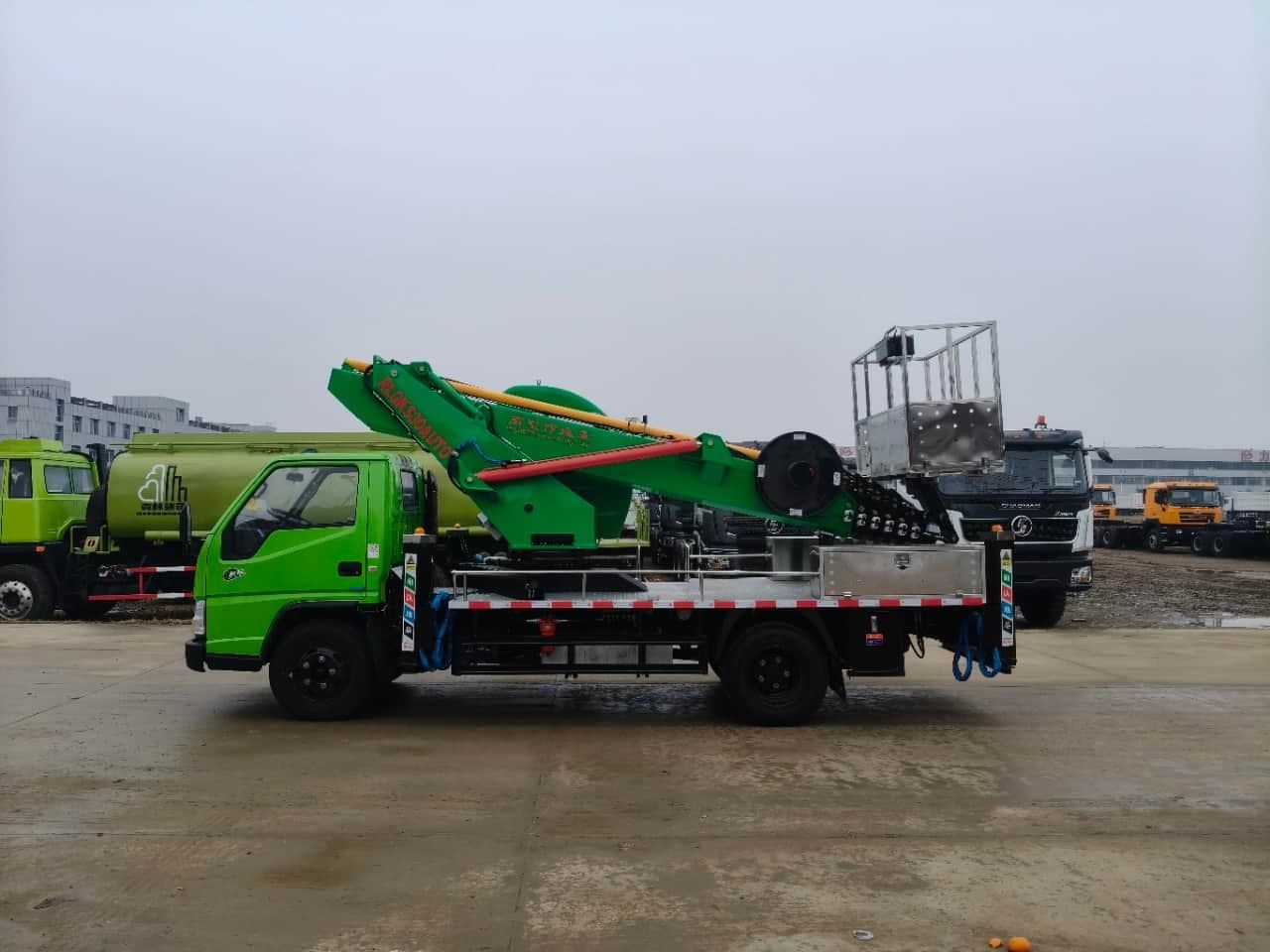

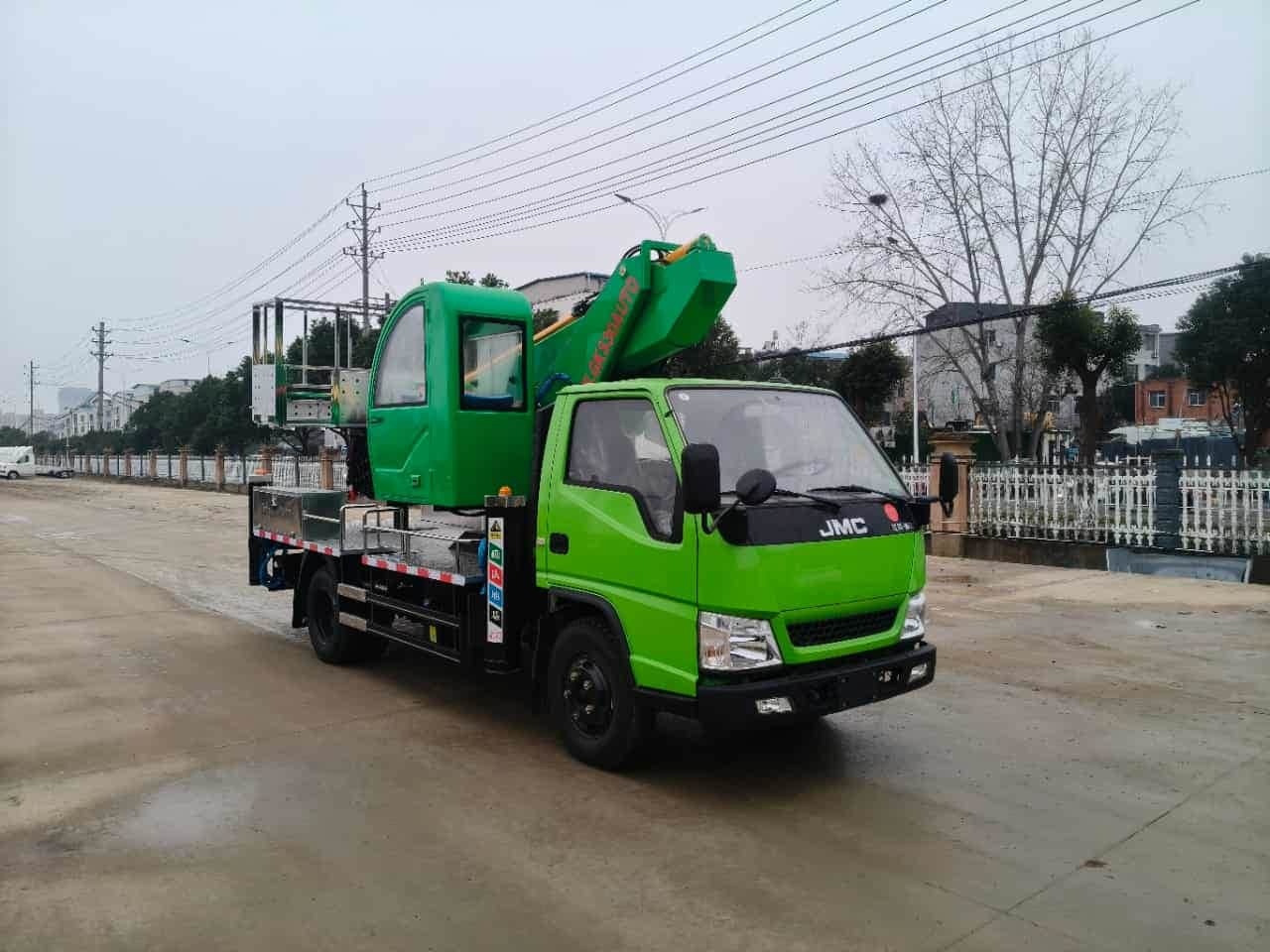

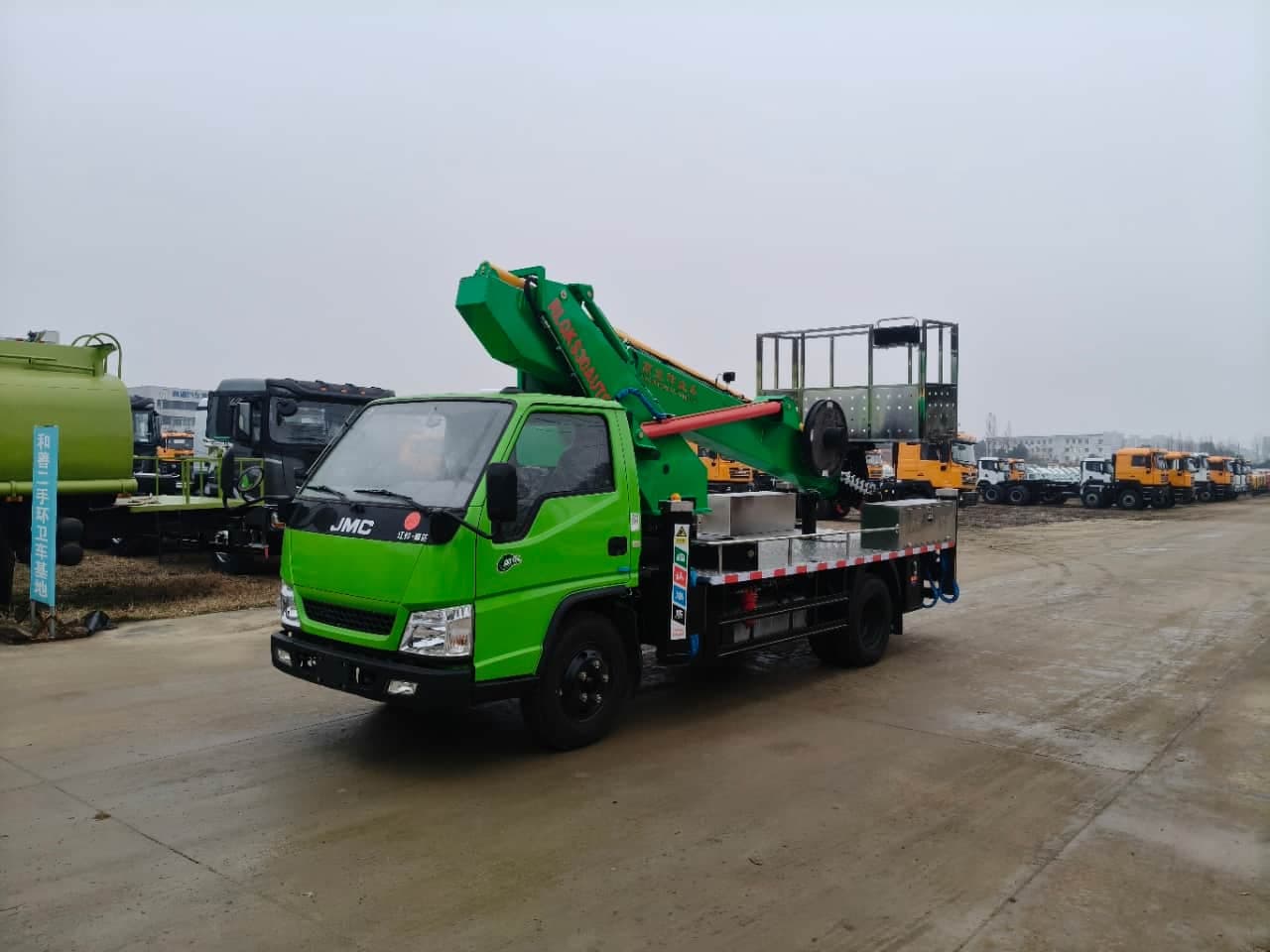

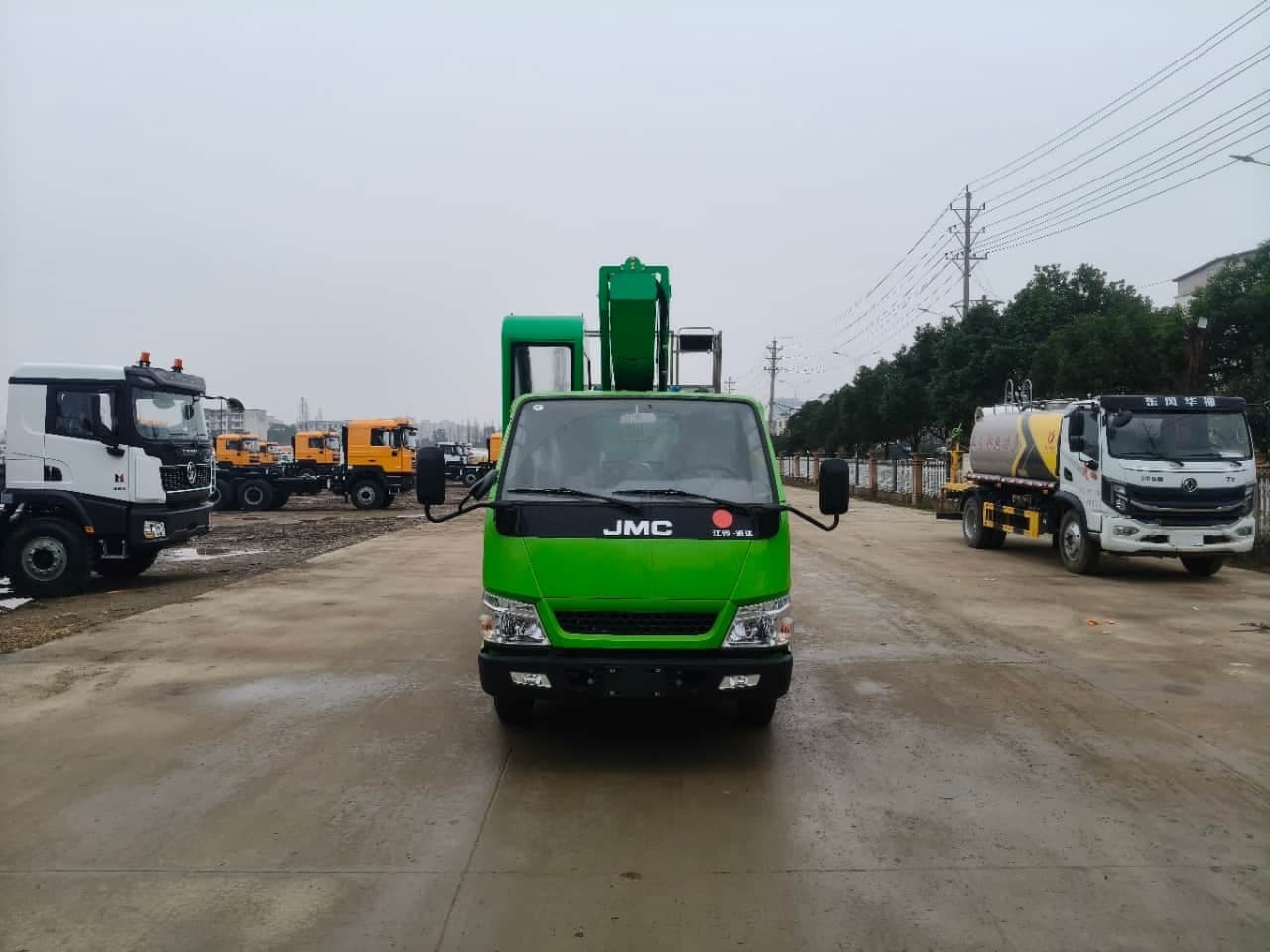

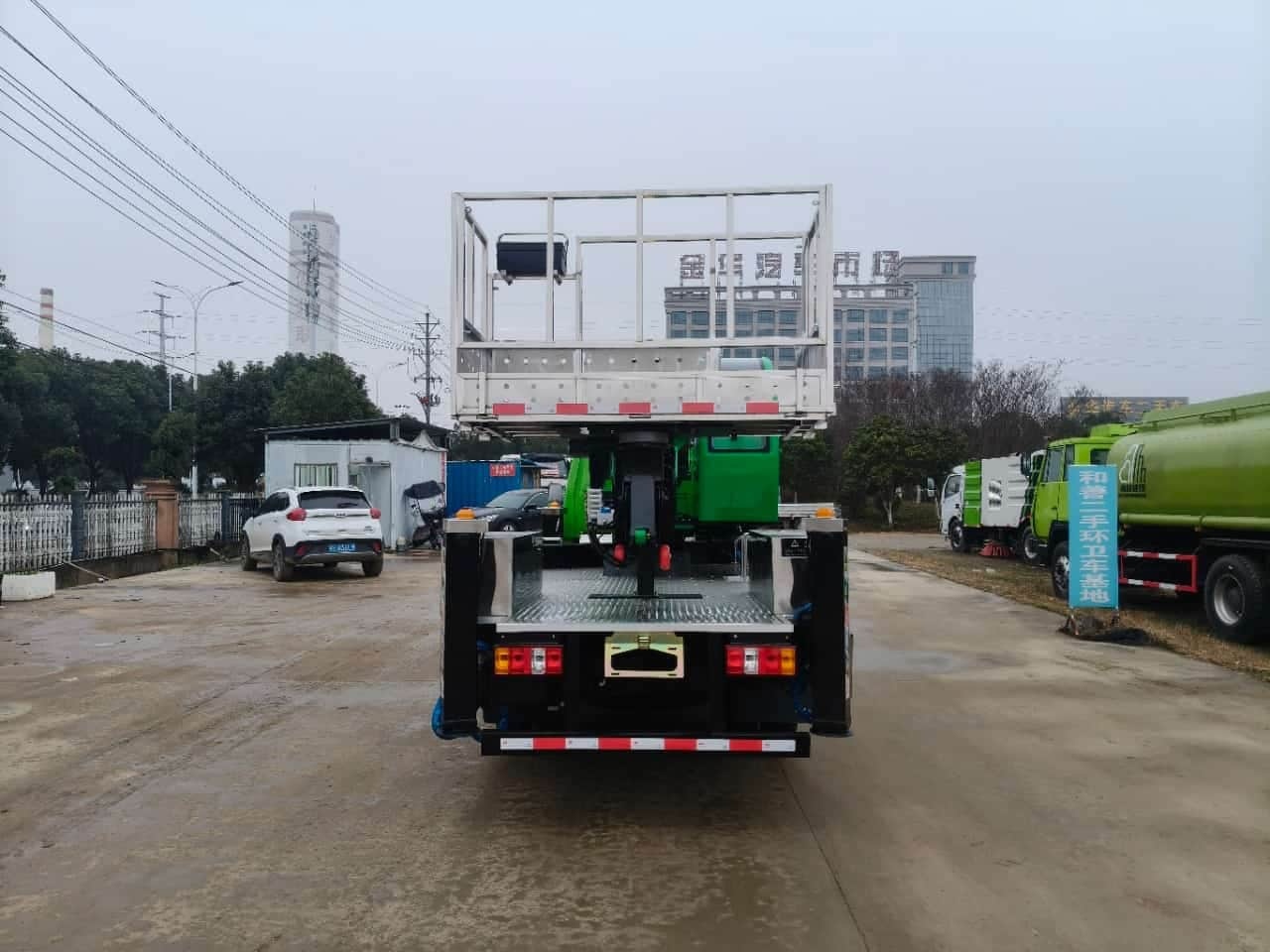

Upper configuration: The working arm adopts a seven section hexagonal high-strength steel synchronous telescopic operation, with a maximum working height of 30 meters. The front V-shaped and rear V-shaped support legs can be adjusted separately. The working arm has a 360 degree platform bearing capacity of 200kg and dimensions of 1600x700x1100mm
Emergency pump with automatic engine ignition and remote control operation
• Drive form: Single bridge (2x4)
• Cab: Jiangling Shunda (green)
• Engine: Jiangling 120 horsepower
• Transmission: 5-speed gearbox
• Main beam: 180mm main beam, single-layer main beam
• Beam length: The total beam length is 4 meters, with a rear overhang length of 1.4 meters
Front axle: 1.8 tons
• Rear axle: 4 tons
• Tire: 7.00R16 steel wire tire
• Wheelbase: 3360
Standard configuration of the cab:
Electric doors and windows
• Air conditioning
• Air shut-off brake
Our company manufactures and sells various types of dump trucks, cargo trucks, box trucks, refrigerated trucks, aerial work platforms, fire trucks, truck-mounted cranes, mixer trucks, wrecker trucks, ambulances, RVs, chick trucks, bulk feed trucks, asphalt distributors, water trucks, garbage trucks (compressed garbage trucks/hook-lift garbage trucks/hook-lift garbage trucks/swing-arm garbage trucks), road sweepers, washing and sweeping trucks, snowplows, advertising trucks, tank trucks, LPG refueling trucks, flatbed trucks, fresh milk transport trucks, sewage suction trucks, RVs, tractor units, and other special-purpose vehicles.
If you are interested in this model and would like to know more about the price, pictures, and specifications, please feel free to contact us!
