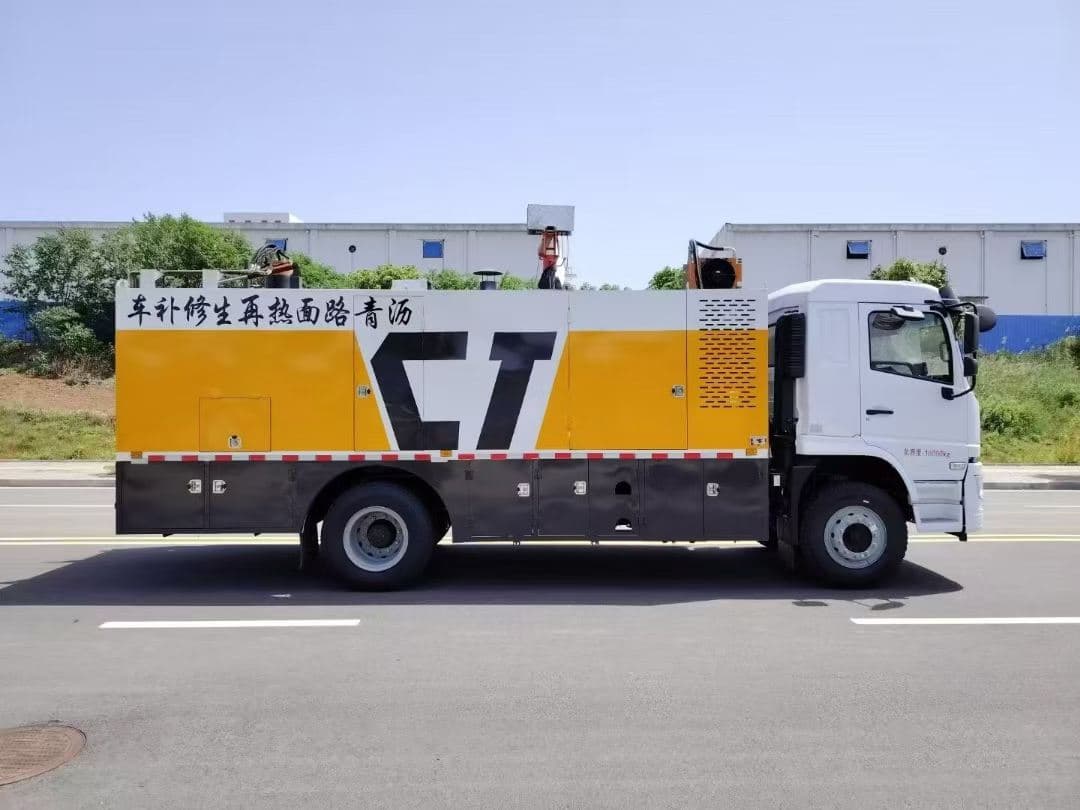

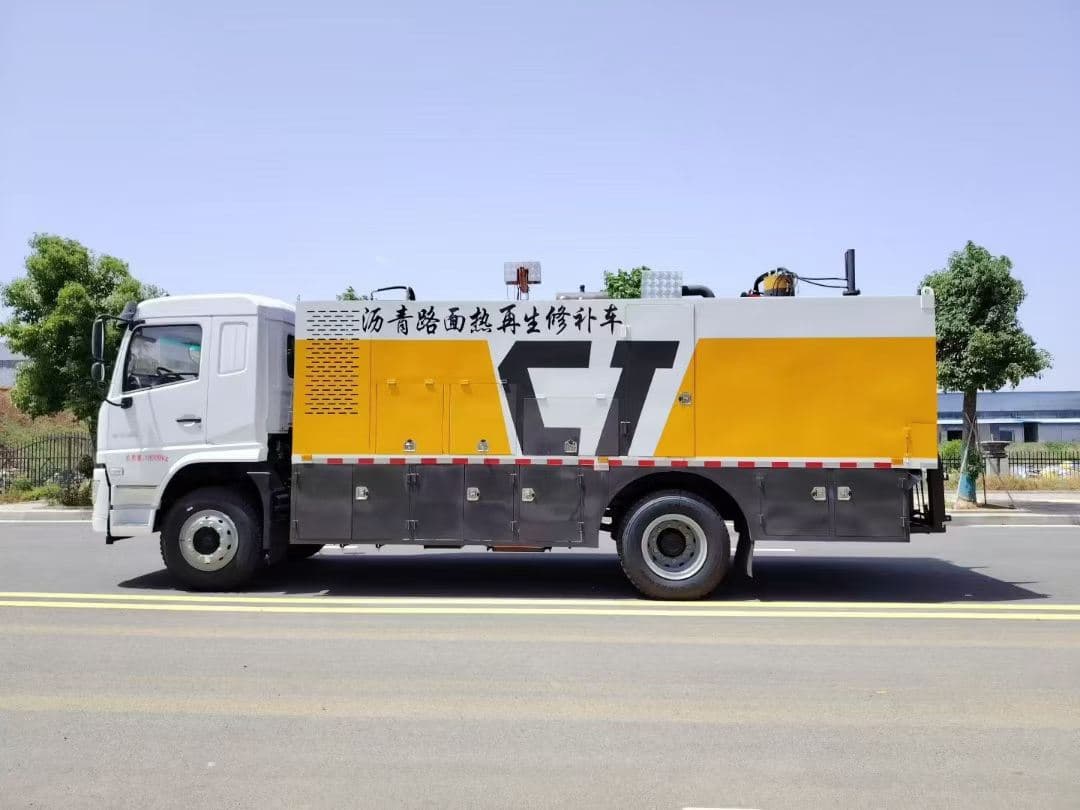

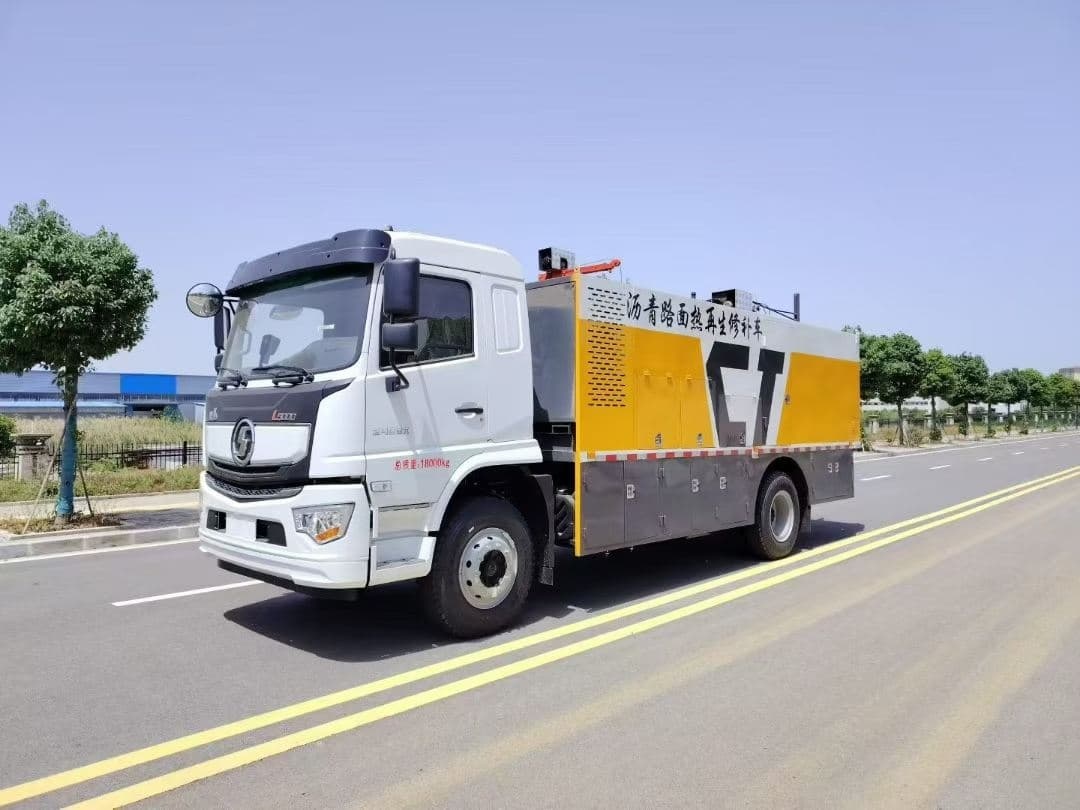

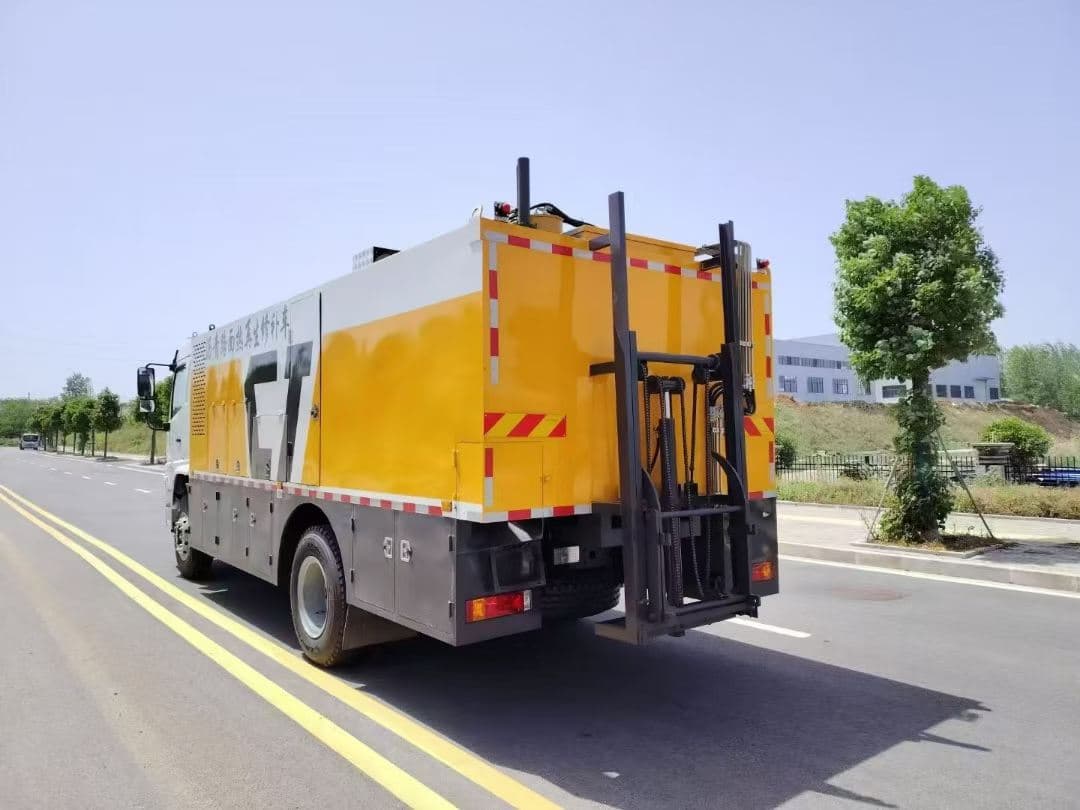

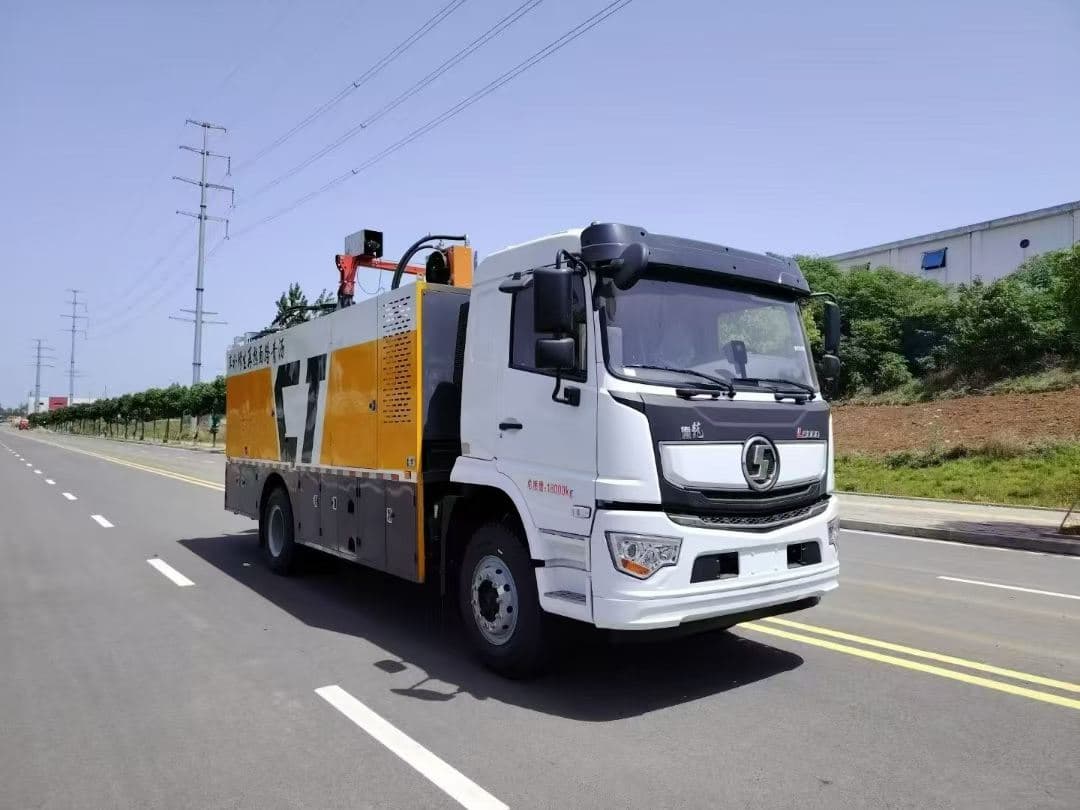

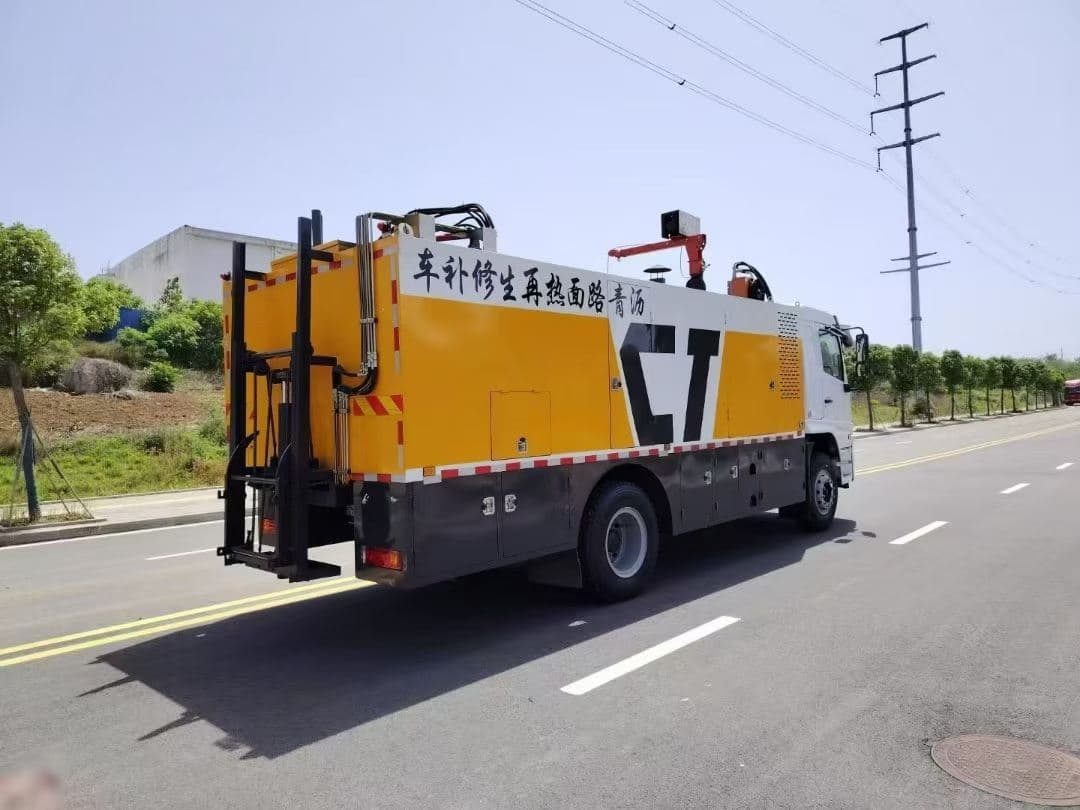

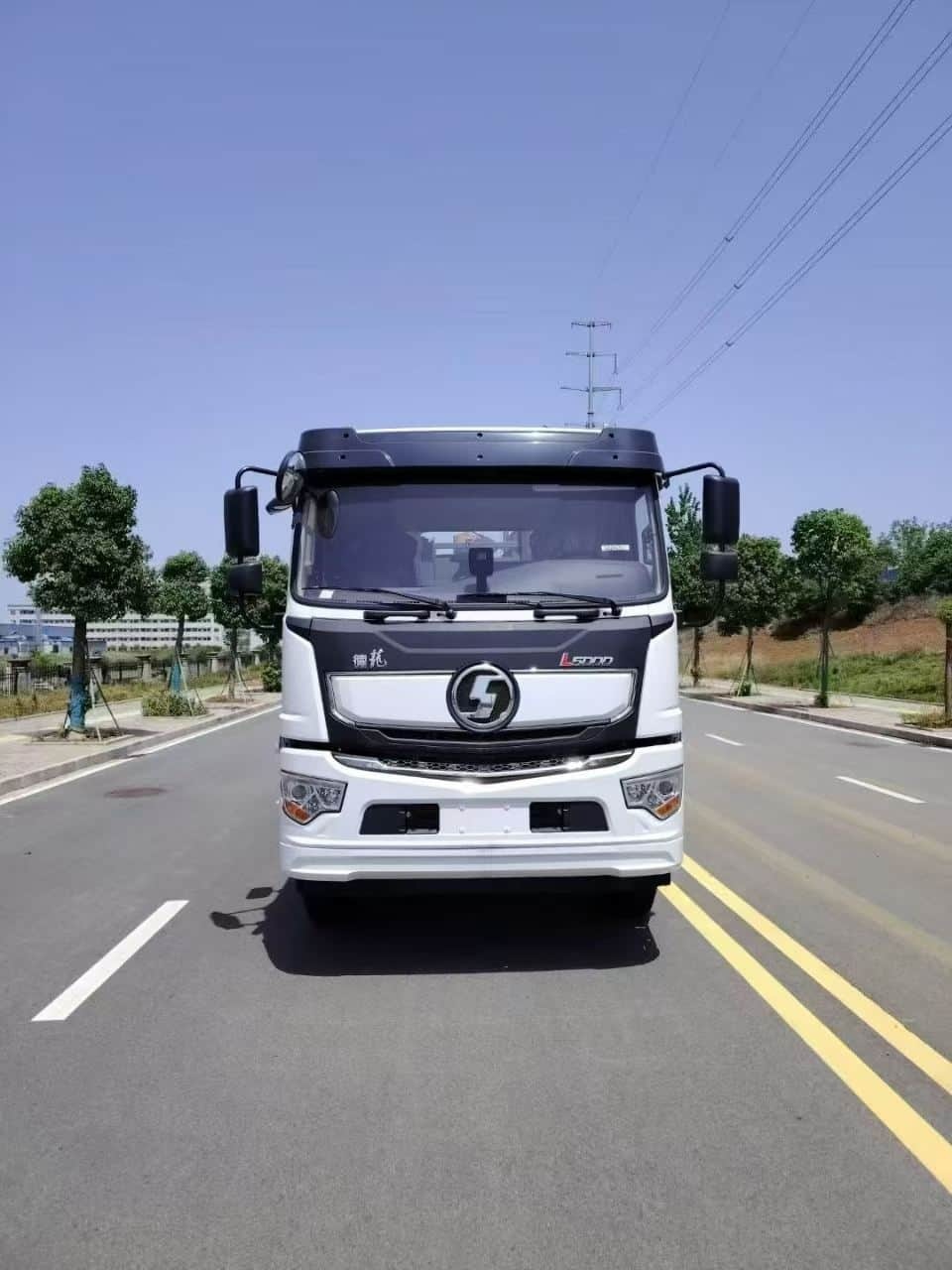

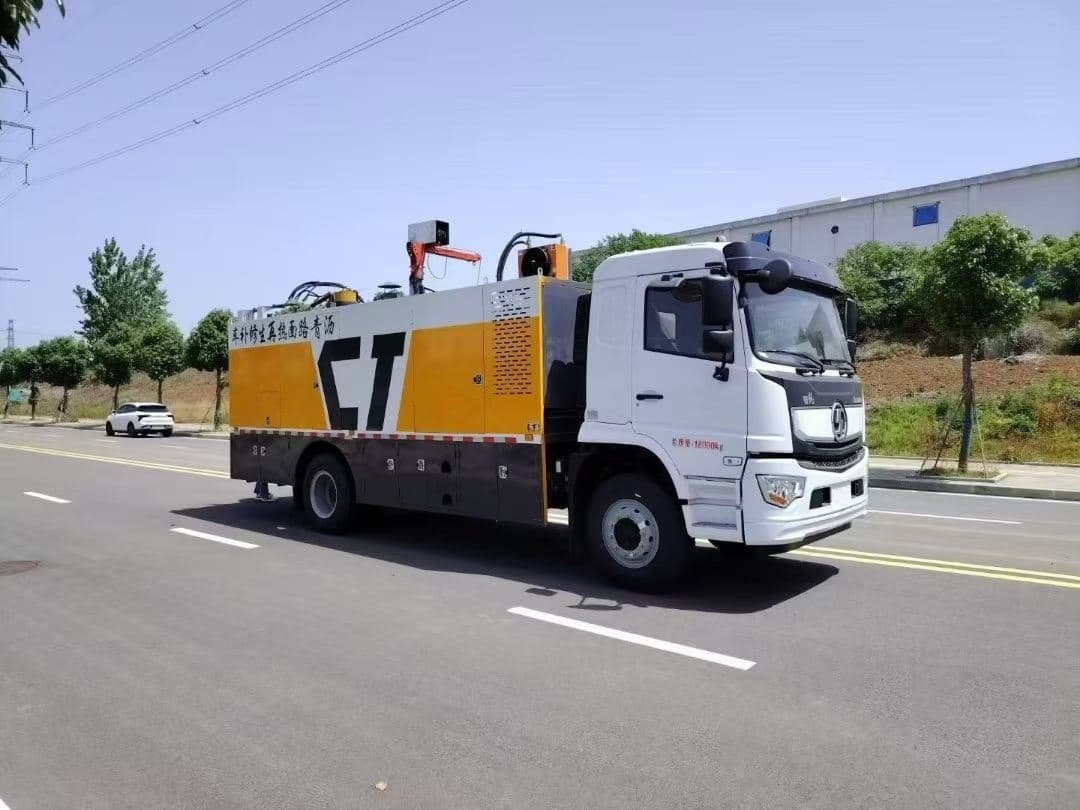

Chassis model SX1189LA1F1C, National VI emission standard Yuchai engine 200hp, wheelbase 4500mm, 1000R20 steel radial tires, electric windows, air conditioning, central locking. Overall dimensions (L/W/H): 8800/2500/3650mm. Curb weight 14880kg, rated payload 2990kg, gross vehicle weight 18000kg, maximum speed 95km/h.
Power System: Independent superstructure power (generator set): 60kW; Asphalt tank volume: 1800L; Asphalt tank burner power: 100000kcal/h; Temperature control range and method: 120～180 degrees, automatic temperature control + manual temperature control; Single recycling capacity: 1.2T; Recycling mixing tank structure: Vertical forced mixing recycling mixing tank; Asphalt mixture heating method: Hot air partition heating + hot air circulation composite heating; Recycling capacity: 8-12T per hour; Burner: Italian Riello; Feeding method: Rear hydraulic feeding; Self-unloading; Asphalt mixture discharge method: Rear discharge; Dust removal method: Cyclone water dust removal (four-layer water mist filtration); Emulsified asphalt tank volume: 120L.
Our company manufactures and sells various types of dump trucks, cargo trucks, box trucks, refrigerated trucks, aerial work platforms, fire trucks, truck-mounted cranes, mixer trucks, wrecker trucks, ambulances, RVs, chick trucks, bulk feed trucks, asphalt distributors, water trucks, garbage trucks (compressed garbage trucks/hook-lift garbage trucks/hook-lift garbage trucks/swing-arm garbage trucks), road sweepers, washing and sweeping trucks, snowplows, advertising trucks, tank trucks, LPG refueling trucks, flatbed trucks, fresh milk transport trucks, sewage suction trucks, RVs, tractor units, and other special-purpose vehicles.
