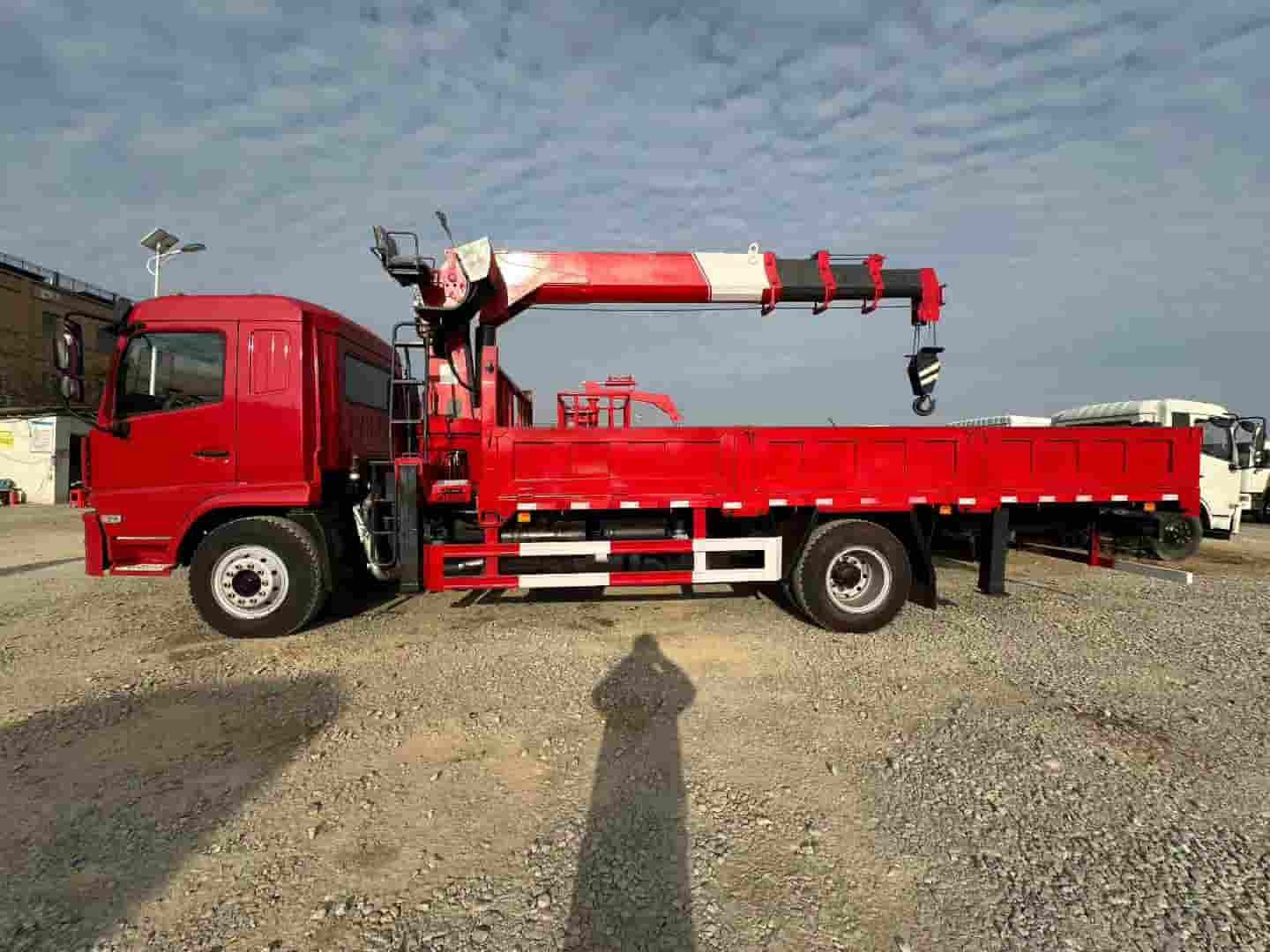

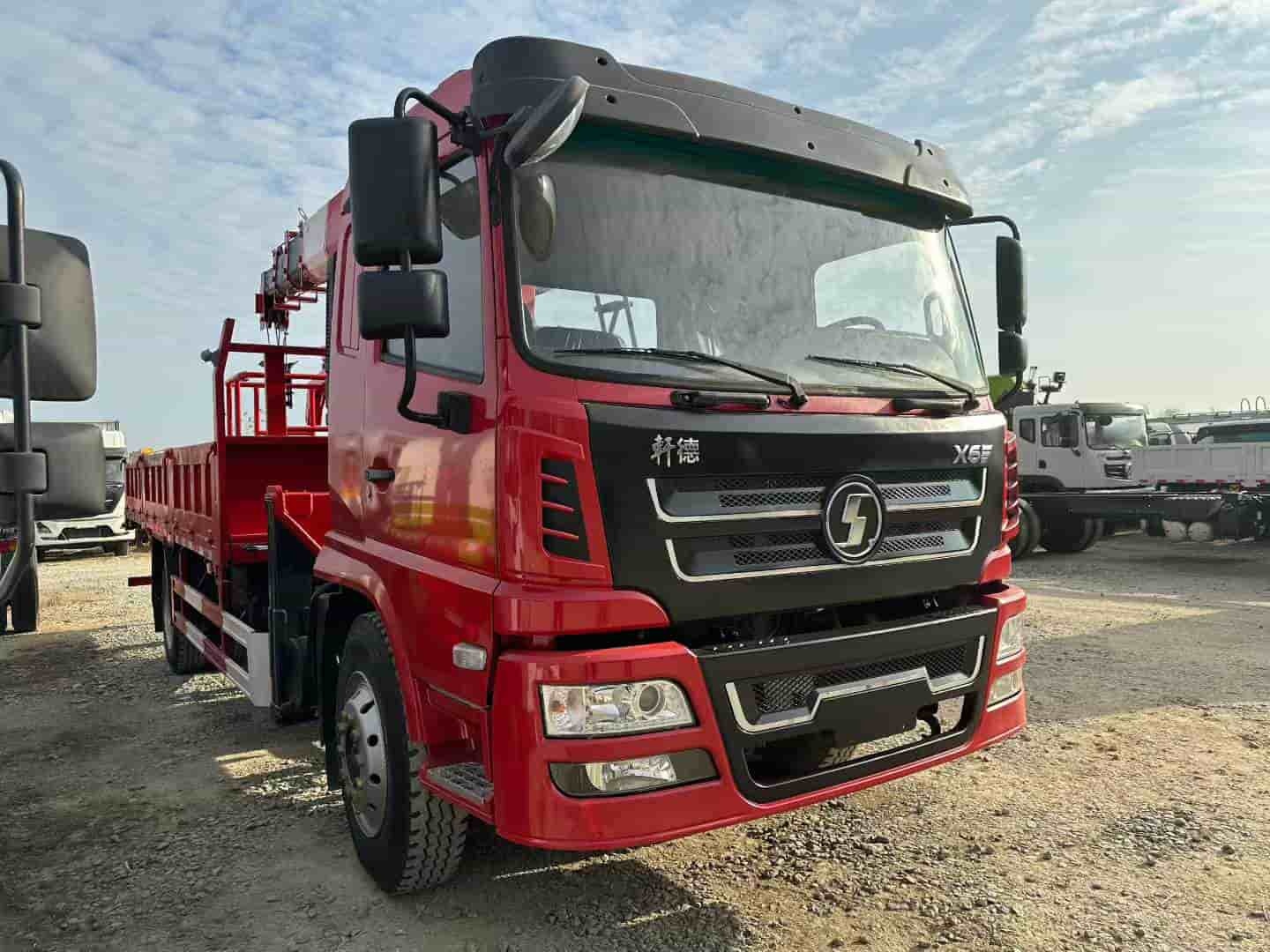

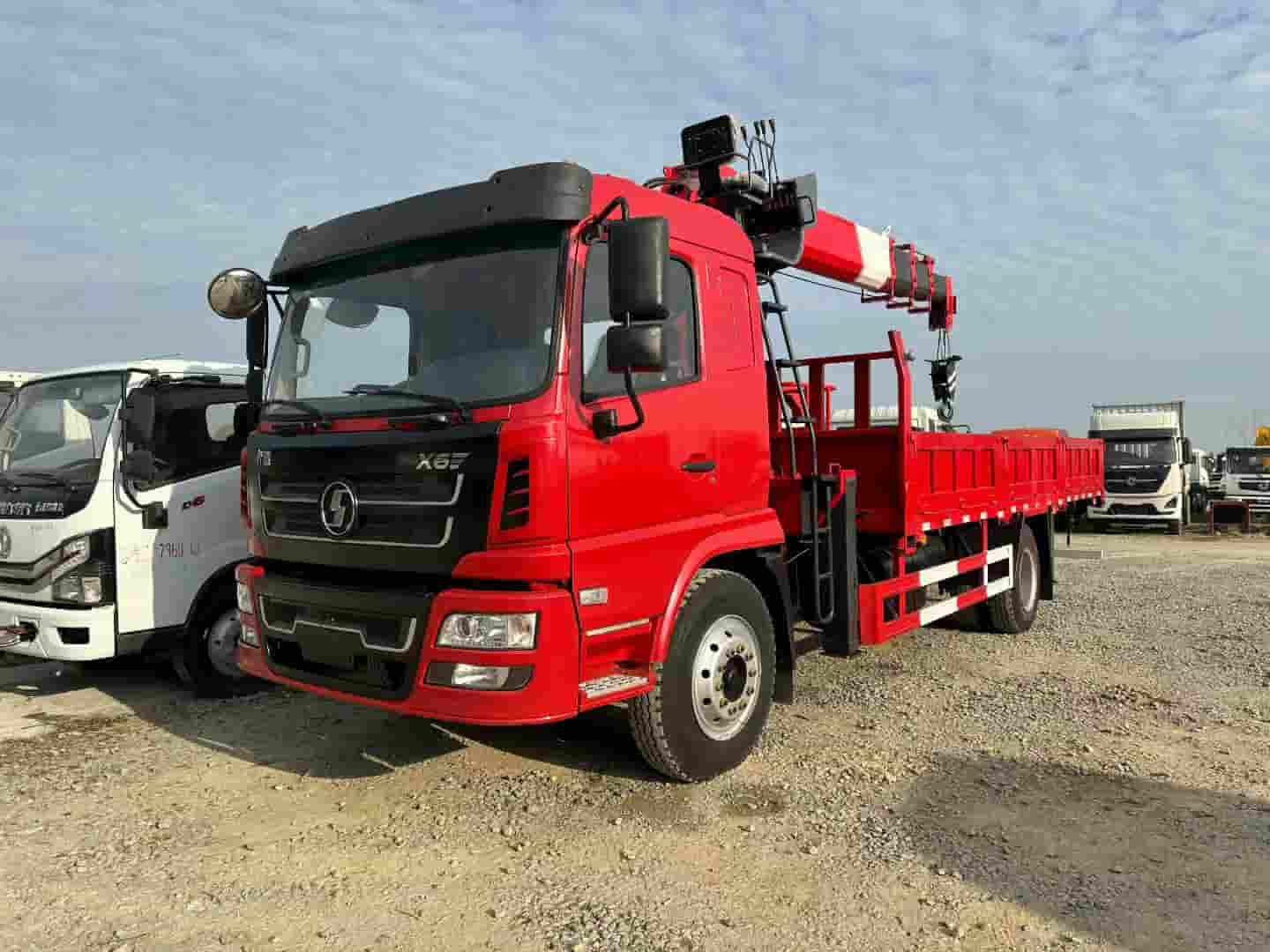

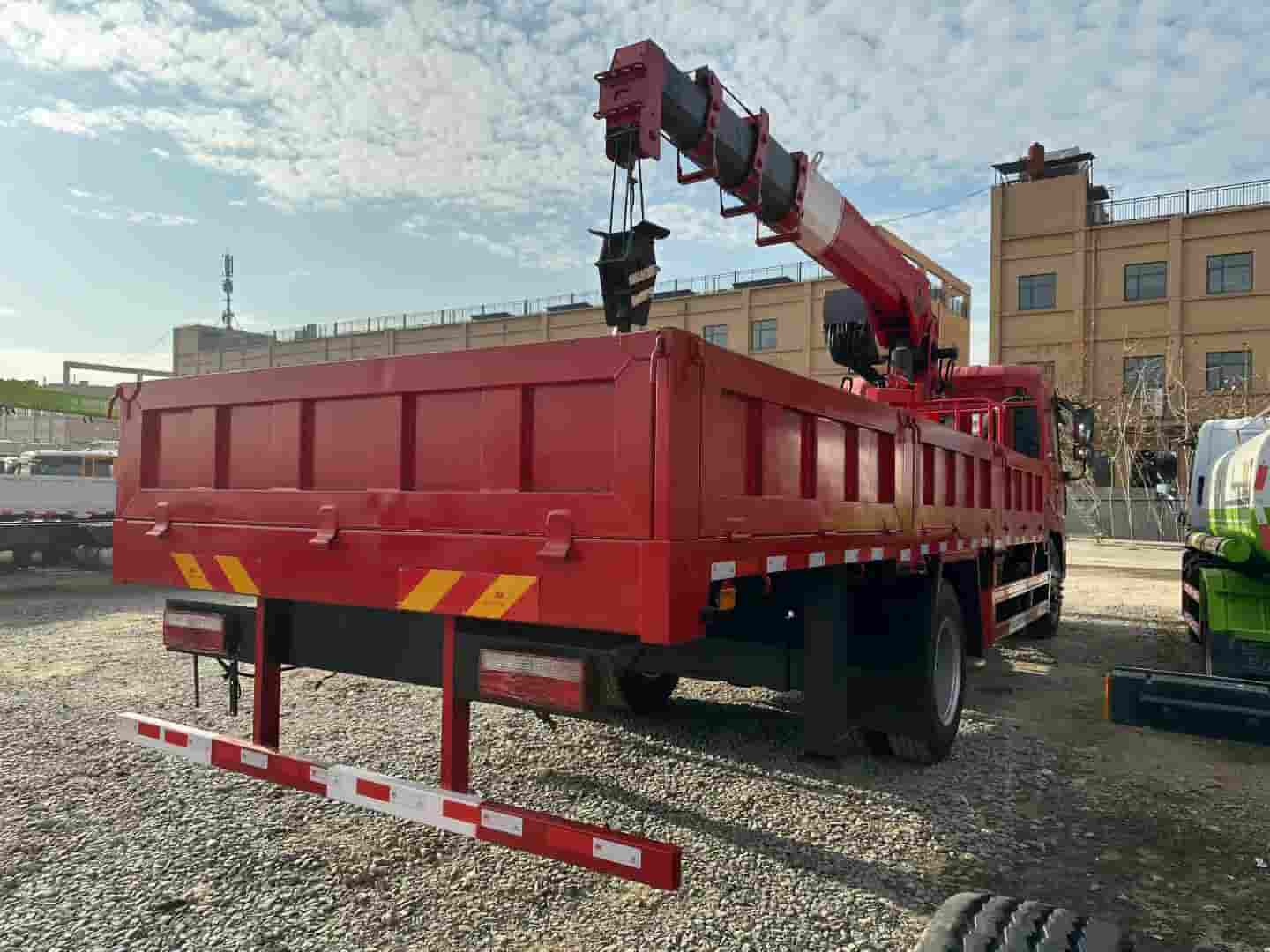

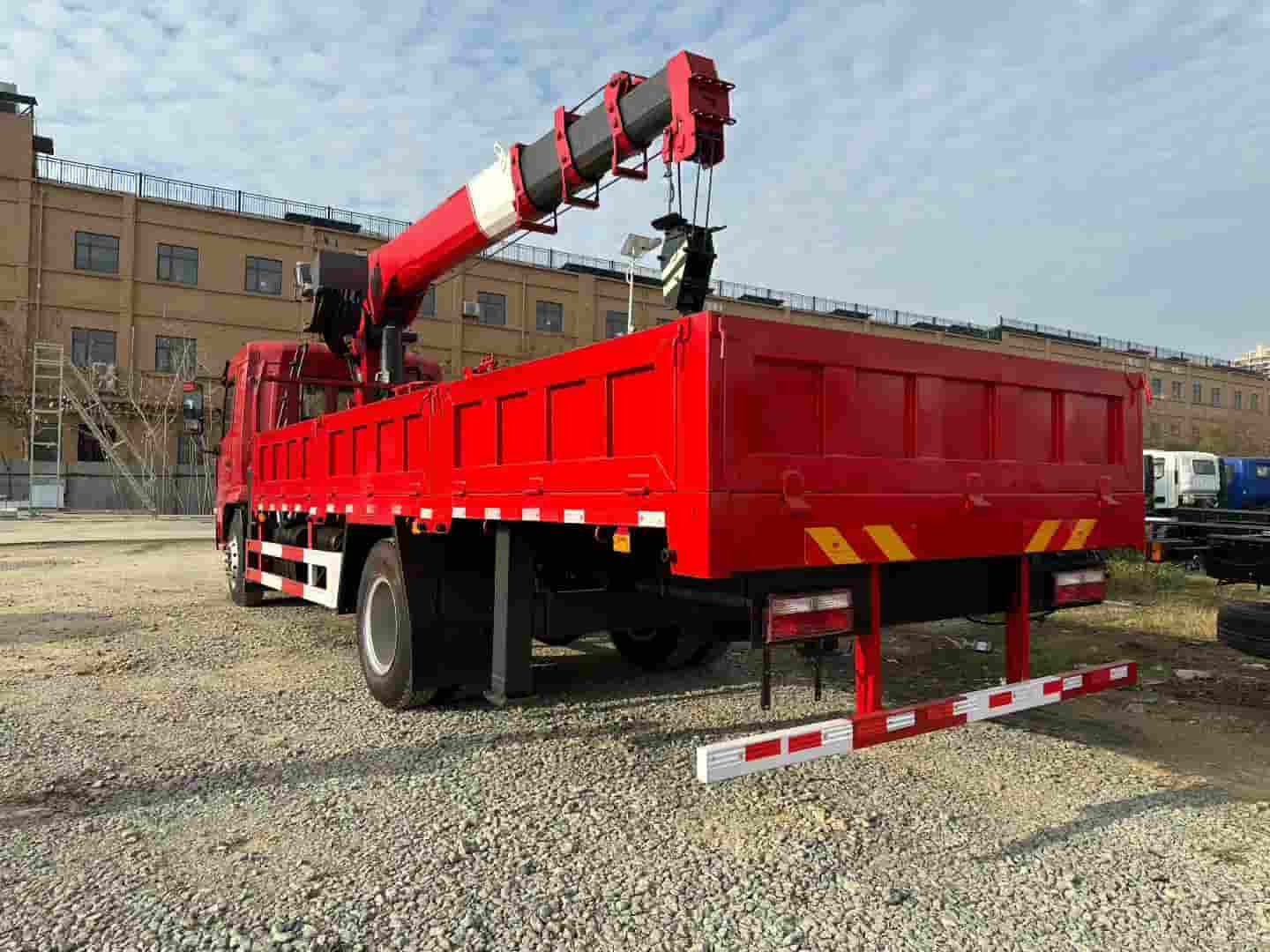

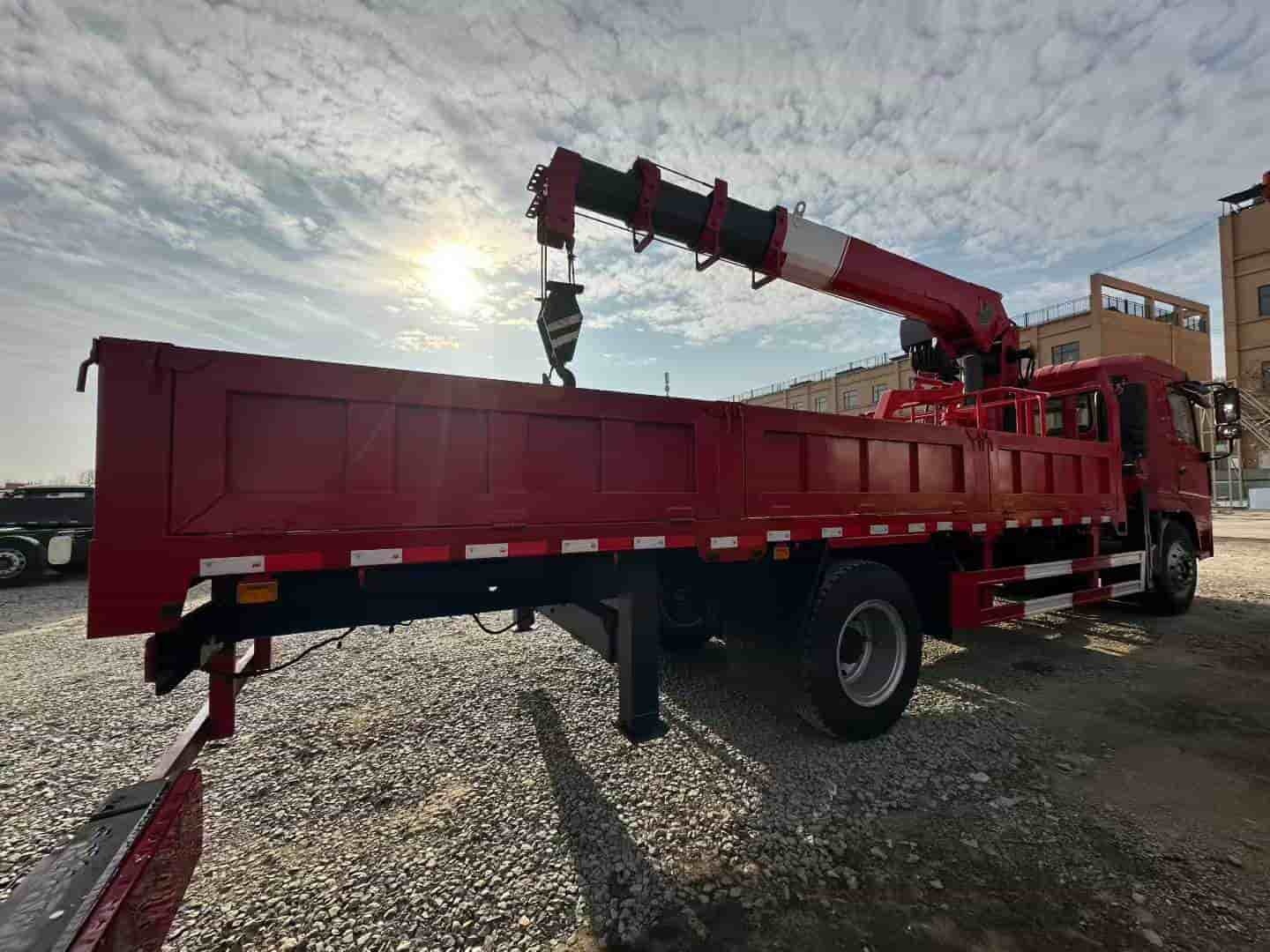

Vehicle configuration:
Model: Shaanxi Automobile Xuan Germany IV
Horsepower: 180 horsepower
Color: The whole body is red
Crane: 8-ton 4-section straight arm truck mounted crane
Dimensions inside the cargo box: 6200 × 2500 × 550 mm
Engine model: Weichai WP6.180E40 (National IV)
Track width: Front 1950/Rear 1900 mm
Tire: 9.00R20 steel wire tire
Transmission: Fast 8-speed gearbox
Vehicle dimensions: 9650 × 2600 × 3760 mm
Configuration: Double person work basket, antifreeze hydraulic oil shaft (can maintain stable operation of hydraulic system in low-temperature environment)
Basic arm length: 4.8m
Maximum arm length: 11.9m
Maximum lifting height: 12.3m
Rotation angle: 360 ° full rotation
Hydraulic support leg: automatic (single chamber rear support leg)
Elevation angle: 0 ° -75 °
Working radius: 5.2-5.4m
Our company manufactures and sells various types of dump trucks, cargo trucks, box trucks, refrigerated trucks, aerial work platforms, fire trucks, truck-mounted cranes, mixer trucks, wrecker trucks, ambulances, RVs, chick trucks, bulk feed trucks, asphalt distributors, water trucks, garbage trucks (compressed garbage trucks/hook-lift garbage trucks/hook-lift garbage trucks/swing-arm garbage trucks), road sweepers, washing and sweeping trucks, snowplows, advertising trucks, tank trucks, LPG refueling trucks, flatbed trucks, fresh milk transport trucks, sewage suction trucks, RVs, tractor units, and other special-purpose vehicles.
If you are interested in this model and would like to know more about the price, pictures, and specifications, please feel free to contact us!
